Product details

Blow moulding extrusion screw and barrel for plastic machine

Good Details

Functionality & application:

1. Application: HDPE/ LDPE /LLDPE etc.
2. Production output: 30 kgs~200kgs
3. Old order from: West Europe,East Europe,South America,South Africa,Middle

Features:
1.Accurate size
2.High capacity geometry
3.Wear resisting
4.Easy maintenance

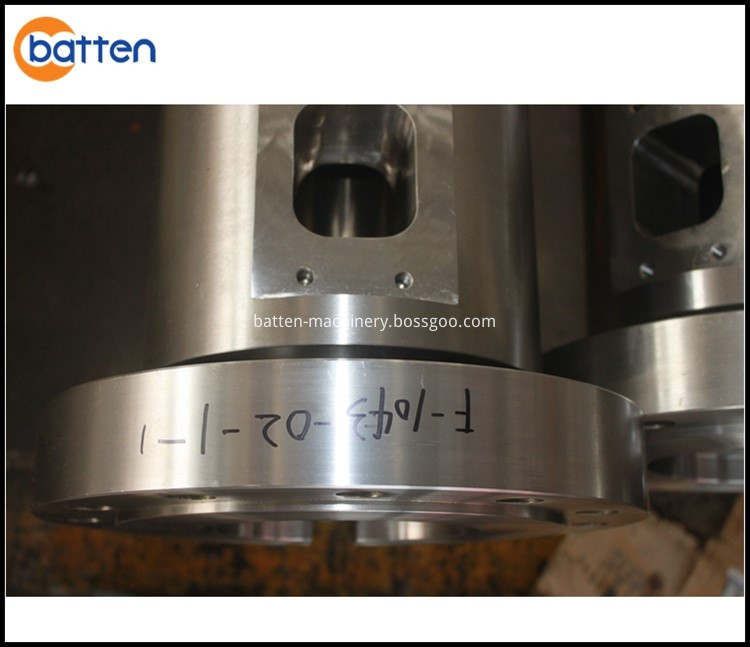

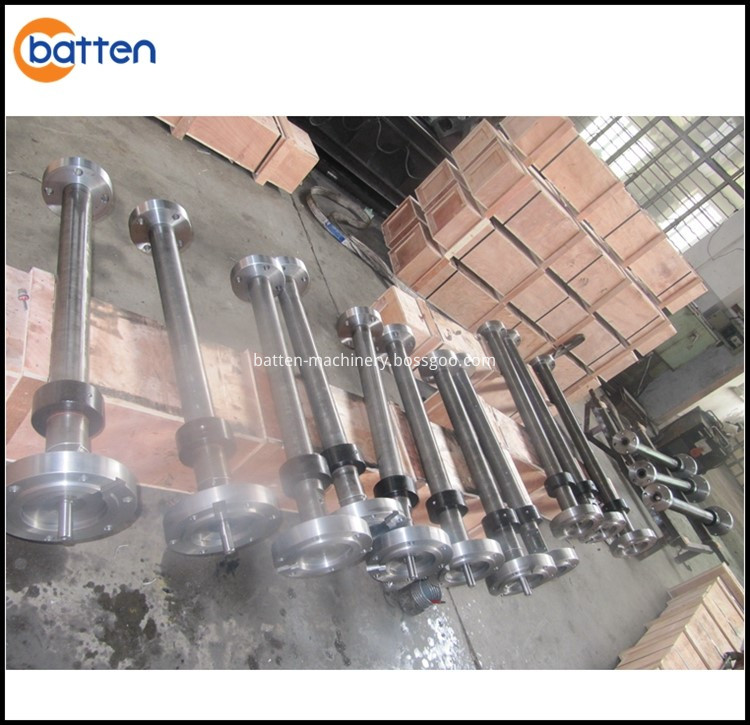

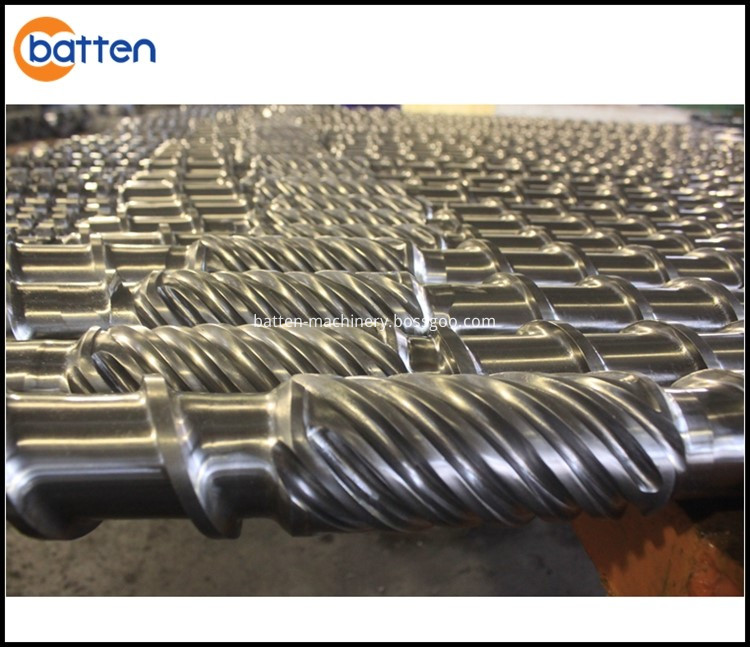

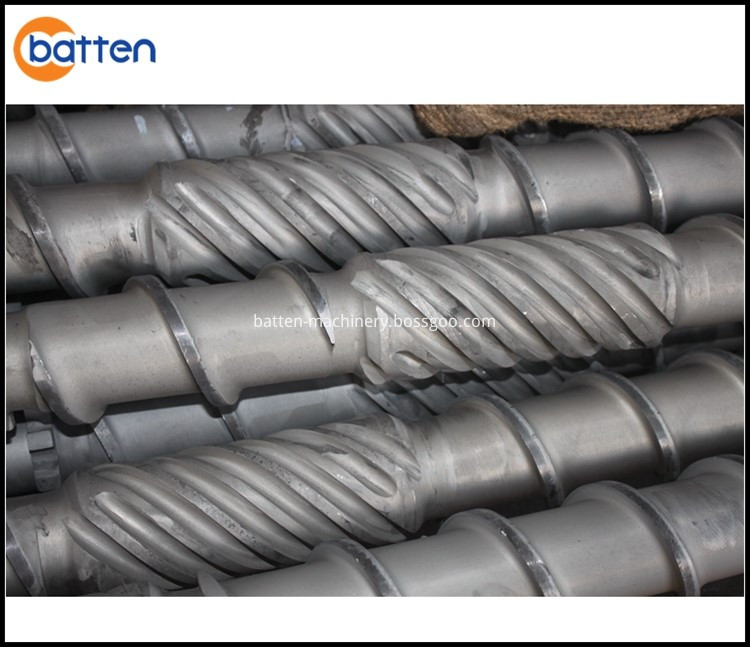

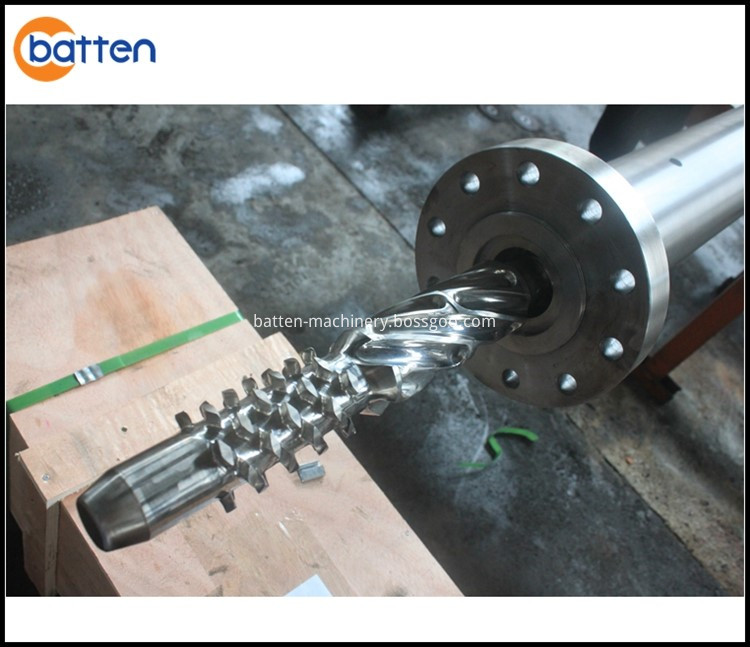

>>Product Photos

>>Purchase Details

Type	PE film screw barrel
MOQ	1 set (1 pc screw and 1 pc barrel)
Design Details	According with client machine
Accessories	1.screw
Accessories	2.barrel
Technical Specification	Material:High quality 38CrMoAlA
	Process:Advanced nitriding & bimetallic process
	Hardness After Hardening & Tempering:HB280-320
	Nitrided Hardness:HV900-1000
	Nitrided Case Depth:0.45-0.8mm
	Nitrided Brittleness:Less than Grade 2
	Surface Roughness:Ra 0.4
	Screw Straightness:0.015mm
	Alloy Hardness:HRC 50-65
	Alloy Depth:0.8-2.0mm

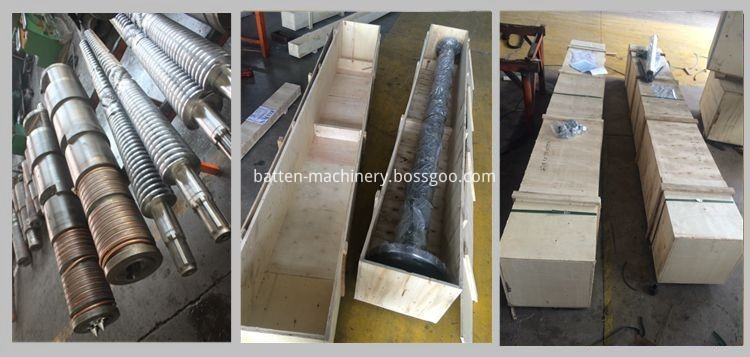

>>Packaging & Shipping

Step 1-Rust Preventing Oil

Step 2-Casting Film Wrapped

Step 3-Polywooden Case
