ground screw sample
3 year ago

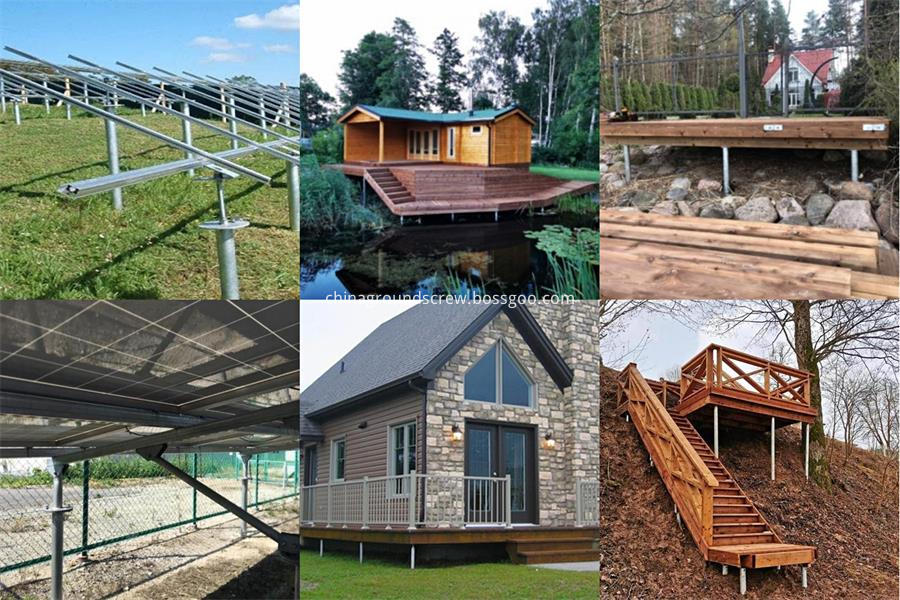

Now more and more countries realized the important to use Ground Screw for temporary building ,for container house,for timber and others to protect environment . to use Ground Screw Pile with no digging ,no concrete.
Flange Ground Screw with different size and shape flange,such as round flange,square flange,triangle flange,hexagon flange & .big blade Ground Screws with one or two or three blades .
Photovoltaic mounting Ground Screw Piles with big blade thread and flange .
F Series Ground Screw with different shape flange: round flange,hexagon flange, square flange & with or without Nut and reinforced washer, usually with 3 to 6 nut, and 2 pieces reinforced washer to reinforce strength. mainly for Solar energy system.
The main specifications of the Flange Screw Pile are as follows:
Material of Ground Screw
S 235 carbon steel
Length of Ground Screw
550-6000 mm
Diameter of pipe
48 mm,68 mm,76 mm,89 mm,114 mm,according to clients' request.
Thickness pipe
2.75 mm,3.00 mm,3.75 mm,4.00 mm
Flange Size
200*8 mm,220*8 mm or according to clients' request.
Automatic welding robot and automatic cutting pipe machines have been put into production line .
Surface treatment of Ground Screw Anchor: High dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc: more than 80 micron.Thanks to the high-quality hot-dip galvanizing process,ensure Steel Ground Screw have a long term service life.
