Product details

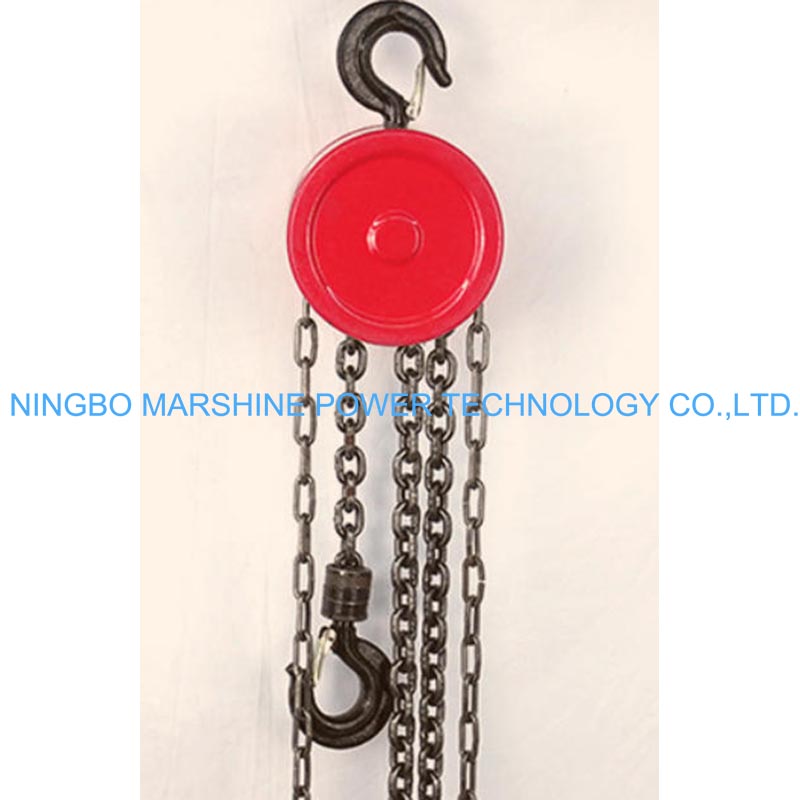

Industrial Manual Chain Hoist for Material Handling

This industrial manual chain hoist for material handling is a dependable manual chain hoist for sites that have no stable power supply and can provides stable performance for future light to medium cargo lifting using days. With symmetrical two-stage spur gear drive components, this MARSHINE Manual Chain Block enables smooth chain movement and balances the load pressure to prolong the service life. The precision machined gear train makes it a rugged mechanical chain hoist without abrupt seizure while lifting and lowering repeatedly. With its heavy gauge stamped steel construction and reinforced load hooks, this heavy duty chain hoist can endure the certified proof loads without any frame deformation or hook bending.

The chain block makes for the regular overhead hoist work with a designated capacity of one ton along with a standard lifting height of 2.5m.

Its experimental test load rating is 1.25T which should provide for ample safety margin in case of unexpected overload.

The top suspension hook to down load hook the vertical height is 270 mm, this enables the operators to install the unit in restricted space of installation with low workshop ceiling.

The MARSHINE Mechanical Chain Hoist operates on a single row of lifting chain with 6 mm chain diameter, each link being heat treated to protect them from wear and fatigue failures caused heavy application.

When the operator lets go of the hand chain, the internal built-in brake system automatically locks the load, preventing any chances of an uncontrolled drop of cargo in pauses in work.

The MARSHINE Industrial Manual Chain Hoist For Material Handling is perfect for indoor factory to finish the machine positioning and components assembling.

This chain block can be applicable to work of vehicles cargo in and out at logistics yards and rural farm storage.

The manual chain block can be used to temporarily overhead lift on outdoor building construction site where there is no grid power.

This mechanical chain hoist is designed to be used with monorail trolleys to carry finished goods along a single beam overhead rail system.

The industrial chain hoist is used as a secondary lifting mechanism for emergency cargo recovery in the event power fails to the electric lifting machinery.

Parameter

Model	HSZ0.5	HSZ1	HSZ1.5	HSZ2	HSZ3	HSZ5	HSZ10	HSZ20
Rated Lifting Capacity (t)	0.5	1	1.5	2	3	5	10	20
Standard Lifting Height (m)	2.5	2.5	2.5	2.5	3	3	3	3
Test Load (t)	0.625	1.25	1.875	2.5	3.75	6.25	12.5	25
Distance Between Two Hooks (mm)	270	270	368	444	486	616	700	1000
Hand Chain Pull at Full Load (N)	225	309	343	314	343	383	392	392
Number of Lifting Chain Rows	1	1	1	2	2	2	4	8
Lifting Chain Diameter (mm)	6	6	8	6	8	10	10	20
