Product details

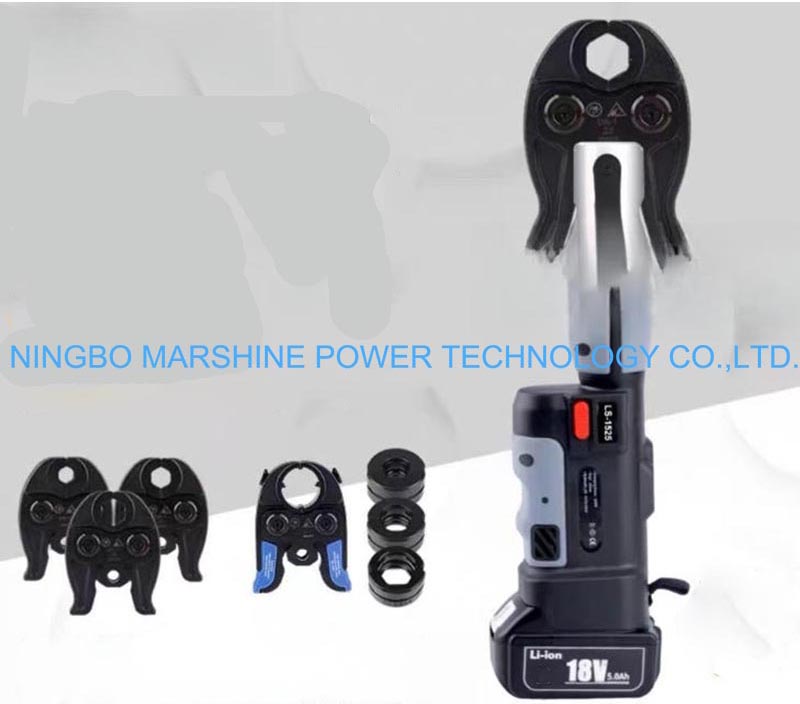

hydraulic stainless steel pipe crimper

This battery hydraulic stainless steel pipe crimper is suitable for stainless steel and composite pipes crimping in plumbing, HVAC and industrial piping fields, basically it can output stable crimping force automatically without pumping manually. The MARSHINE Battery Hydraulic Pipe Crimper is designed with a open jaw features and can handle several types of TH crimping dies allowing you to carry different dies to the job sites for crimping different types of pipes. This hydraulic pipe crimper is equipped with an advanced pressure sensing valve which makes the piston move automatically after crimping so-called that it protect the pipe walls against being disfigure and resulting in joints leakage. Hydraulic pipe crimper is powered by 18V 5Ah rechargeable lithium ion battery, which allow it to be used in the place without electric power.

This battery powered hydraulic pipe crimper with a piston stroke of 17 mm can be used for pipes with diameters of 16, 20, 26 and 32 mm and the crimping force reaches 60KN.

The MARSHINE 18V Hydraulic Pipe Crimper is able to complete 200 crimp cycles on 20mm aluminum-plastic tubes using one 5.0-Ah battery before needing a recharge, enabling workers to get a lot of field work done without worrying about battery life.

The whole unit only weighs 4.0 kg with the battery, so that to make sure it is light enough for one man operation at a time working overhead or in confined space environment.

The durable plastic carrying case holds the tools, replaceable TH dies, two batteries and fast charger for easy transportation from job site to job site.

Sealed hydraulic cylinders are equipped with multi-layer sealing rings to reduce oil leakage and to extend maintenances interval.

The crimper refers to the so-called hydraulic crimper which can be used for the tightening of stainless steel pipes as well as connection firm but without leakages in building water supply pipe systems.

This hydraulic crimper also works powerfully for copper pipe renovation of HVAC systems in houses.

This portable crimping tool is ideal for various pipe sizes because of its lineup of unique TH dies.

MRSHINE Cordless Hydraulic Pipe Crimper has the great impact on emergency, like disaster pipe damage.

The battery powered crimper has the benefit of being used in confined areas where an electrical outlet isn’t available.

Hydraulic crimping machine for portable use eliminates fatigue and lets technicians do a better job of plumbing.

Parameter

Model	LS-1525
Product Name	Li-ion Battery Powered Pipe Press Tool
Key Configuration	Economical Press Head + TH Type Dies for PEX-AL-PEX Pipe
Application	Pressing PEX-AL-PEX Pipe (TH Die with 2 inner grooves)
Output Force	60 KN
Battery	18V / 5.0Ah
Stroke	17 mm
Die Configuration	16 mm, 20 mm, 26 mm, 32 mm
Net Weight	4.0 Kg
Gross Weight	15 Kg
