Product details

Cordless Battery Powered Press Tool

The MARSHINE PZ-1930 Cordless Battery Powered Press Tool is a compact, high efficiency tool professional plumbing contractor tool, and this battery press tool has no tangled power cords brings you free operation in confined space. The tool is a lightweight cordless hydraulic press tool with integrated hydraulic drive components, the cordless press tool considerably outperforms heavy manual pressing tools, whilst still enabling one-handed operation for daylong work on site. This electric press tool has the tipping long distance of Kn 19, providing that dependable Pipe Press Tool for heating and gas pipeline works whilst is able to deal with copper pipe, stainless steel pipe and multi-layer plastic pipe.

The battery press tool is a mere 2 lbs without the corresponding press jaws, which can reduce user fatigue while working on long runs of pipe joining.

It is powered by two 18 volt 2.5 ampere hour lithium-ion batteries, charging completely in 40 minutes through universal 100 to 240 volt wide voltage chargers.

A single battery charge of this MARSHINE Cordless Press Tool can allow gest up to 250 full crimps on DN20 stainless steel tubing, offering dramatically less power breaks mid-job.

With a piston stroke of 30 mm, the 60 ml oil holding built-in hydraulic cylinder completes each typical pressing cycle in 2 to 4 seconds.

The jaw assembly pivots 180 degrees, which can allow techs to access angled pipe joints within wall cavities and tight cabinet spaces.

The cordless battery powered press tool allows for crimping work on stainless steel pipes within the 12 to 28 mm diameter range.

This MARSHINE Cordless Press Tool makes leak-proof joints on copper tubing 12 to 35 mm in size for residential and commercial heating systems.

The electric press tool is compatible with TH, V and M series interchangeable jaws for PEX and multi-layer composite pipes from 16 to 32mm.

As a specialized pipe press tool it accomplishes pipeline connection work in new construction or restoration of old heating systems.

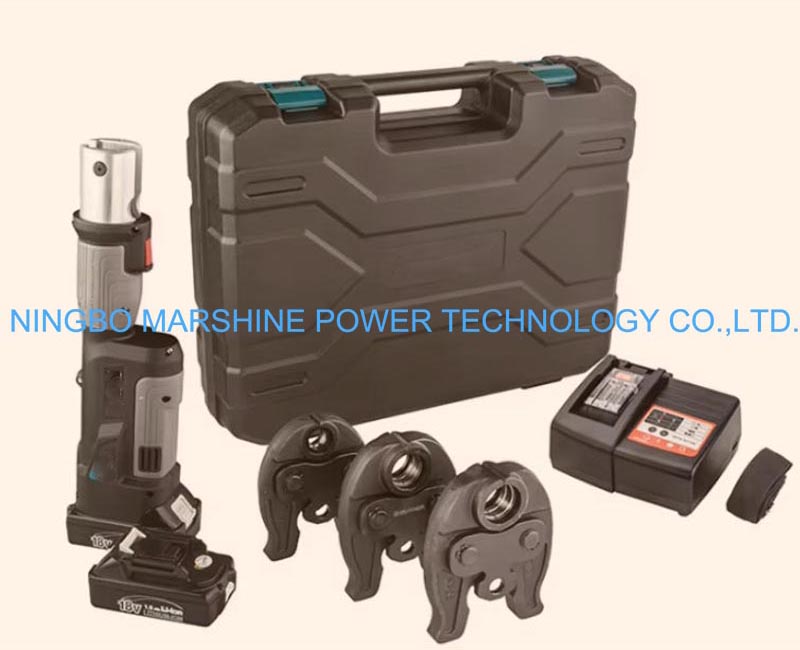

This hydraulic press tool includes a set of 2 rechargeable batteries, a car charger and an impact resistant hard storage case for easy transport between work sites.

Parameter

Model	PZ-1930
Rated Output Force	19kN (Piston Output Force)
Stroke	30mm
Single Crimping Time	2-4S (Depending on the pipe diameter)
Standard Battery	18V 2.0Ah Lithium Battery
Standard Charger	AC 100V-240V 50-60Hz
Battery Charging Time	Approx. 40 Minutes
Tool Dimensions	36312075mm
Weight	Approx. 2.0kgs (Tool with battery)
Crimping Range	12-35mm Thin-walled Stainless Steel Pipes12-35mm (1/2"-1 3/8") Thin-walled Red Copper Pipes16-40mm Plastic Pipes, Aluminum-Plastic Composite Pipes
