2mm LED Orange LED
2 year ago

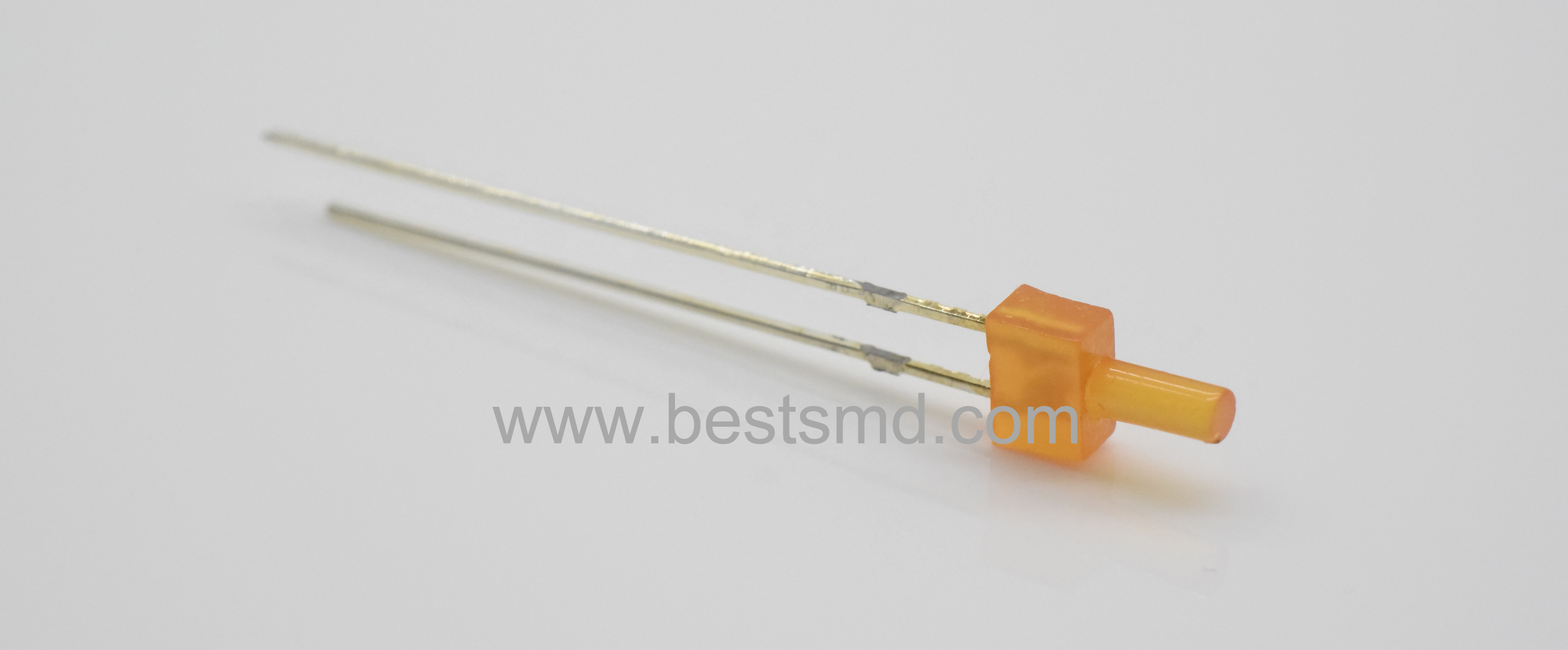

This 1014FOD-14 is a Through-hole LED Lamps that with a 2mm nipple shape on the top of LED lens. From the picture we can see this orange LED package with orange diffused lens(it's diffused becuase we cannot see the inside very clear through the lens). We are not only package this LED with orange lens but also put a orange LED chip inside, which is a 600nm LED. As long as we light up the LED, it will show beautiful color for your project. Because of the nipple shape on the top, this LED won't have a very concentrated emitting light when it's working. Instead, because of diffused lens, it will have a bigger lighting area through its body. Which will make people will a nice and soft lighting result. With this package, we also produce it with Amber LED, White LED, UV LED, Blue LED ect.
*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃
| Parameter | Symbol | Rating | Unit |
| Forward Current | IF | 100 | mA |
| Forward Voltage | V | 2.2-2.6 | v |
| Luminous Intensity | IV | 1-2 | lm |
| Wavelength |
λP |
600-605 | nm |
| Packing | Piece | 1000 | bag |
| Viewing angle | 2θ1/2 | 140 | Deg |
*Luminous intensity is measured by ZWL600.
*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
