Product description

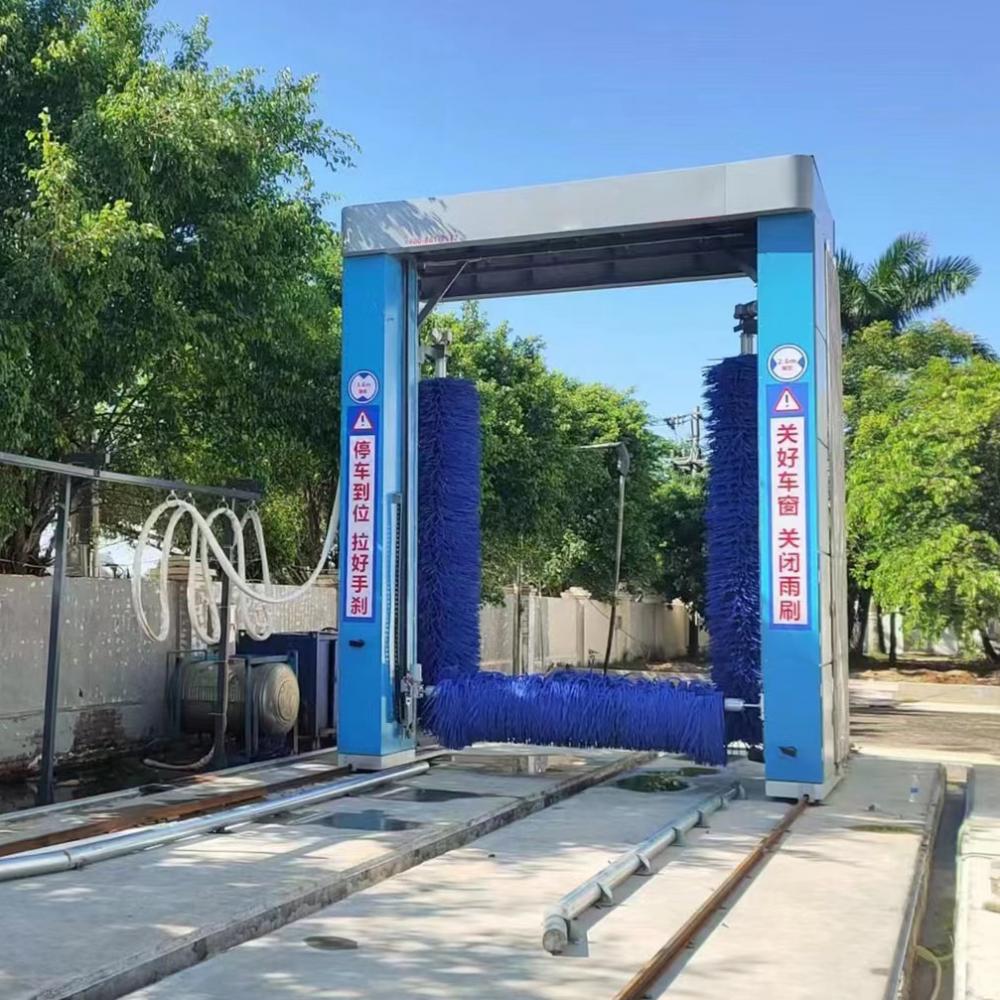

Autowash Soft Touch Clean Bus Truck Car Wash Machine autowash Truck Bus clean machine car wash Self Serve Train Car Wash For Sale Unlimited Car Wash. It has good cleaning effect and high cleaning efficiency.
Main structure: The 4.5mm and locally 8mm plates are cut by laser to accurately locate the positions of various parts, and then assembled by tenon and mortise structure, hot galvanized paint.

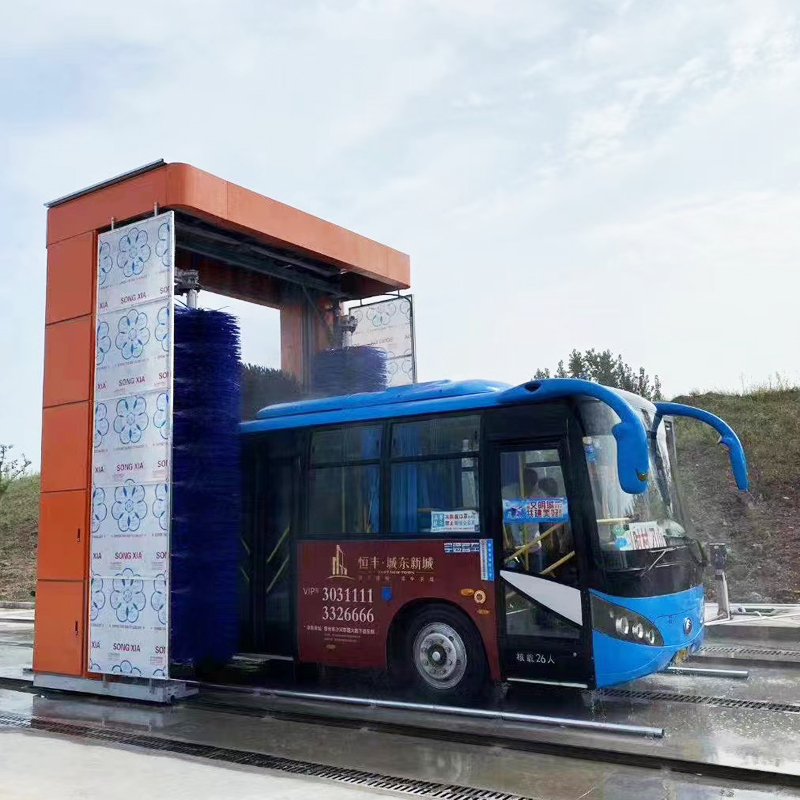

In the whole process, the bus/truck position is detected by photoelectricity, and the functions of starting → high-pressure water washing + foam cleaning → top brush → left and right large vertical brushes → high-pressure water washing are used to clean the bus/truck body in all directions.
Applicable models
All types of buses and bus vehicles
Bus wash size
Length ≤ unlimited x width ≤ 3 x height ≤ 4.5
Machine size
2500mm (L) x 4500mm (W) x 5500mm (H)
Mounting dimensions
18000mm (L) x 6500mm (W) x 5700mm (H)
Installed capacity
10KW
Voltage
380V/50HZ three-phase five-wire
Number of brushes
One top brush, two large standing brushes
Average water consumption
150L-200L/vehicle
Car wash time
Gantry reciprocating 3 min - 5 min per vehicle
Compressed air pressure
0.8Mpa
Electricity consumption
0.5 degrees/vehicle
Control systems
Programmable program controller, travel system, frequency converter commissioning control.
Air-drying configuration
None
Car wash options

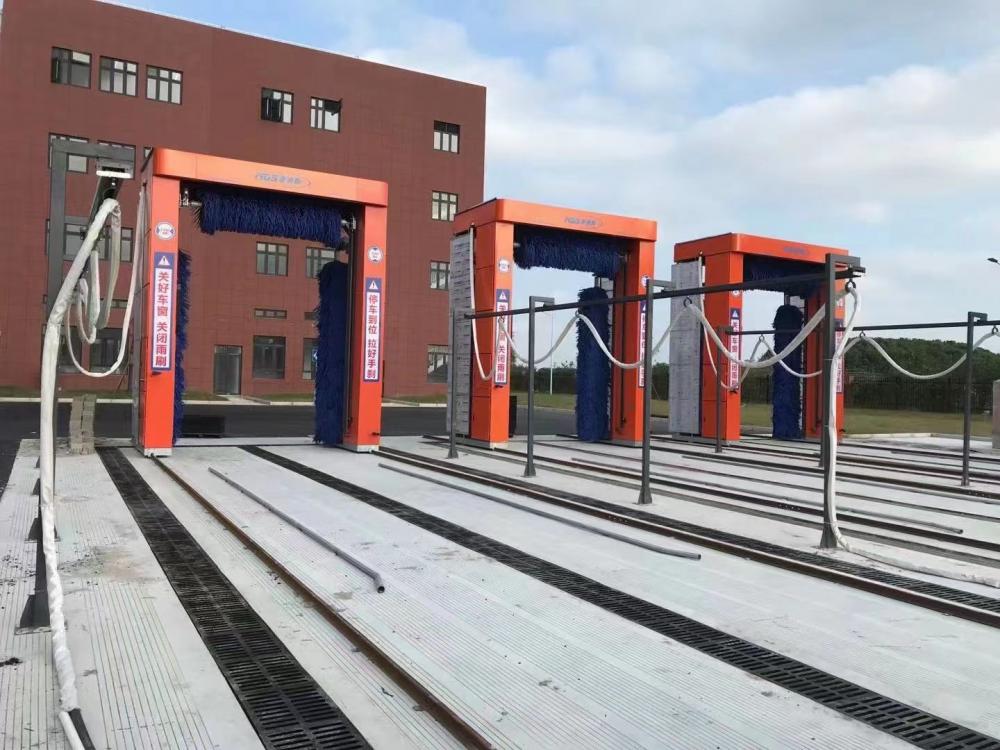

Floor track gantry reciprocating. Dual control system with panel and computer
Manufacturing materials
Overall equipment: plate structure.
Panels: hot-dip galvanised plastic sprayed or baked enamel.
Car Wash Machine Sewage Recycling Equipment
Applicable models
Various types of bus and bus vehicles
Power consumption
1.5KW
Effluent recovery rate
Recovery rate 90%, 10L-15L/ single bus water consumption
Operating temperature
0-50°C
Company Introduction

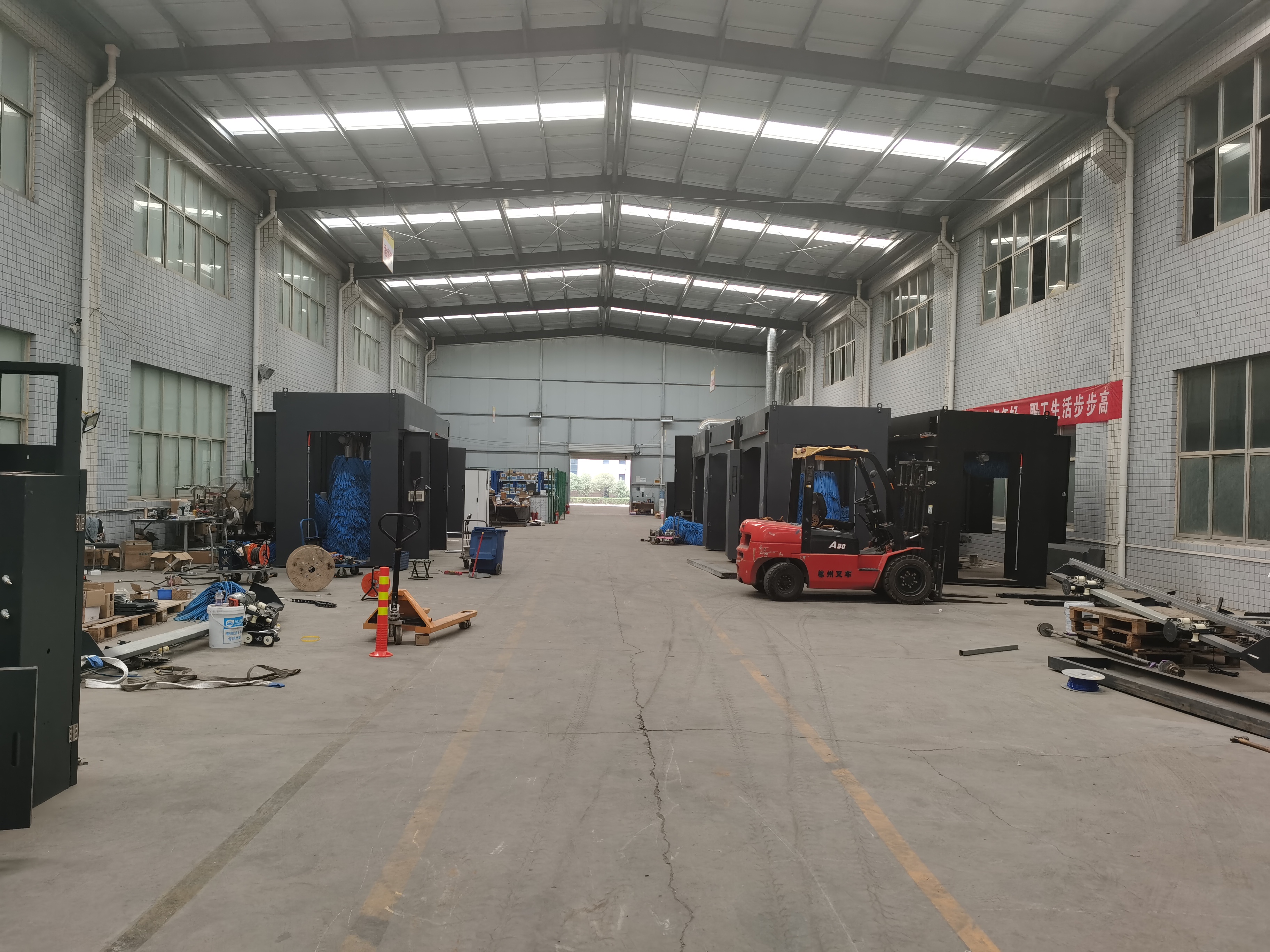

ShineWash is a leading domestic technology enterprise integrating R&D, production, sales, after-sales and operation of car wash machines. It sells and invests more than 1,000 fully automatic car wash machine annually. ShineWash has completed two rounds of venture capital and total financing amount is over 100 million. The production base is located in the airport area of Zhengzhou City, Henan Province, has 200 acres of workshops and dozens of R&D personnel.
