High pressure and Ultra high Pressure Electric Hydraulic Pump PES211M
Electric hydraulic pump station - electromagnetic reversing
PES211M is a type of single acting two speed electromagnetic reversing electric hydraulic pump. It is designed to provide high-pressure hydraulic fluid flow for operating hydraulic cylinder or other hydraulic components.
Features:
High and low pressure settings, free switching between two pressure flows, large flow at low pressure, hydraulic tools can move quickly at low pressure.
Application occasions:
The high-pressure electric pump station is specifically designed for industrial production fields, with a continuous output of 70Mpa. It is perfectly compatible with various high-pressure hydraulic tools, allowing for seamless integration and efficient performance in operations such as pushing, pulling, expanding, clamping, bending, jacking, squeezing, and more.
Product parameter:
NO.1
Electric hydraulic pump station - Manual reversing Technical Parameter
电动液压泵站—手动换向
Model No.
Oil Tank material
Tank volume
Working pressure (Mpa)
Output flow (L/min)
Operation method
Oil outlet interface
L
Low pressure
High pressure
Low pressure
High pressure
PED206M
Steel reservoir
20
6
70
1.16
0.15
Manual reversing
3/8''-18NPTF
PED211M
Steel reservoir
30
6
70
1.16
0.15
Manual reversing
3/8''-18NPTF
PES206M
Steel reservoir
20
6
70
1.16
0.15
Manual reversing
3/8''-18NPTF
PES211M
Steel reservoir
30
6
70
1.16
0.15
Manual reversing
3/8''-18NPTF

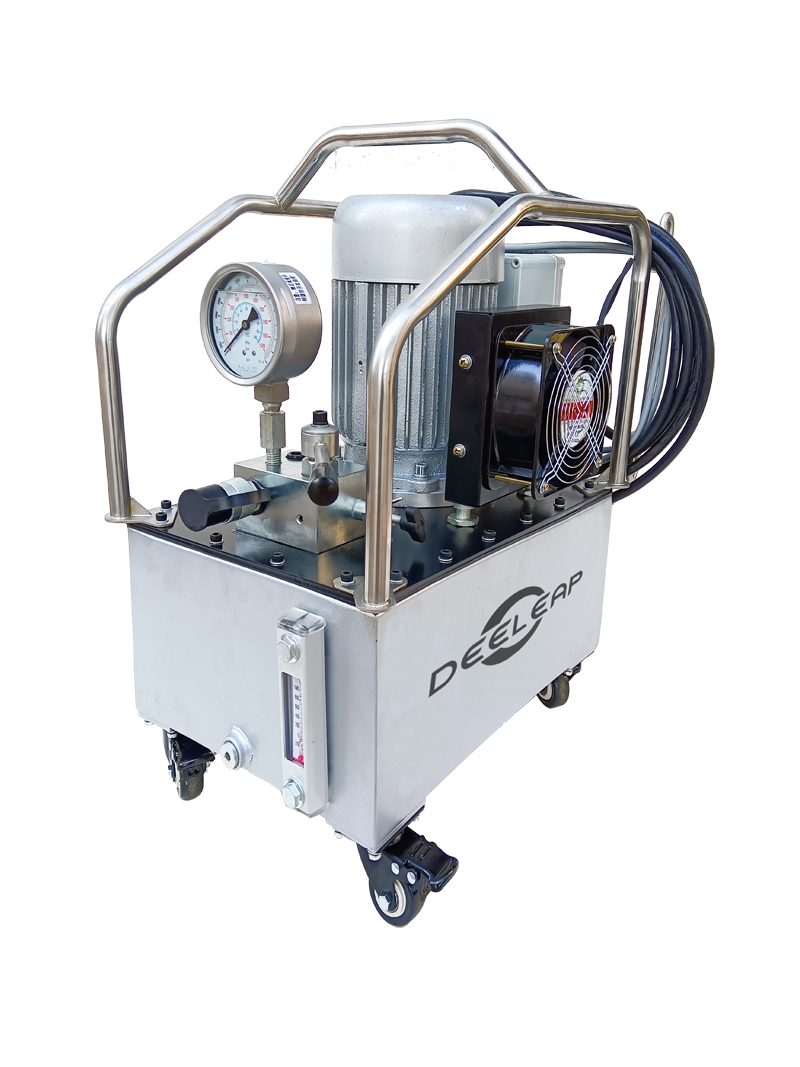

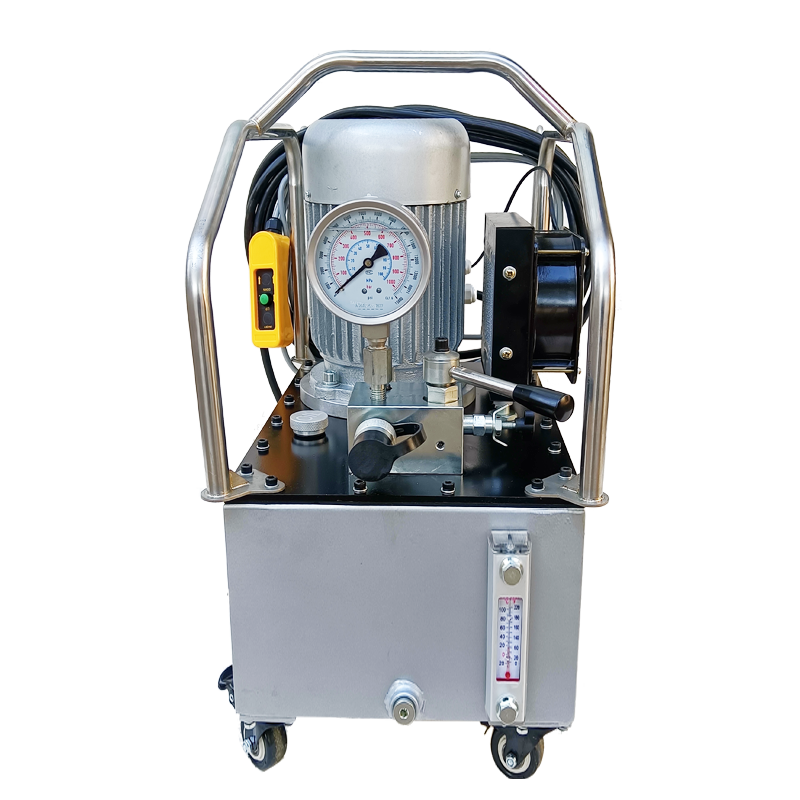

Electric hydraulic pump detail photos:
-

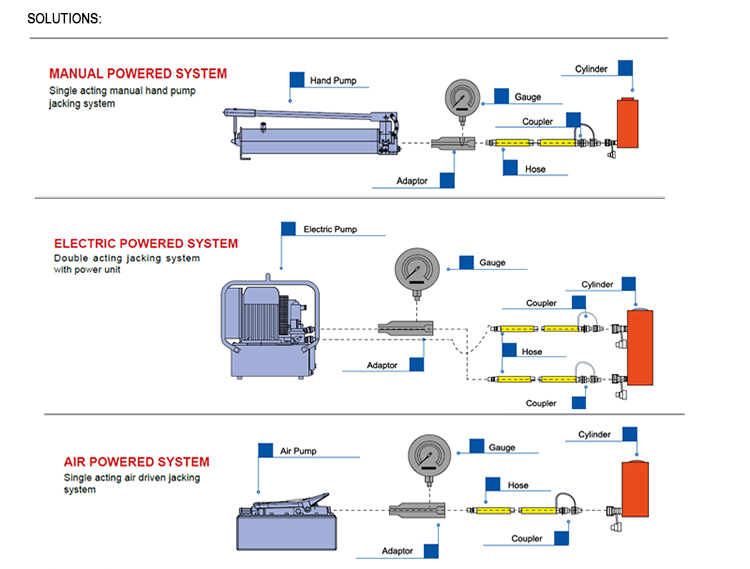

We can provide a complete set of hydraulic tool solutions.

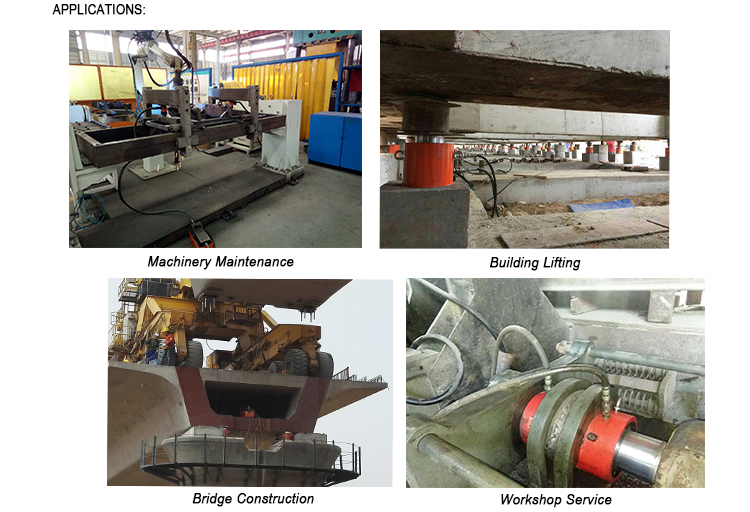

Application:
Automobile maintenance, mechanical maintenance, construction, shipbuilding, chemical industry, petroleum, electric power, overhaul and so on.
Production machines
About us
Yantai Dongyue Hydraulic Technology Co., Ltd. is a manufacturer engaged in design and manufacturing high pressure hydraulic tools and equipments, such as pneumatic hydraulic pump, electric hydraulic pump, manual hydraulic pump, high pressure jack cylinder and other hydraulic tools,etc.. Our factory was established in 2008, located in Yantai City, Shandong Province, with a registered capital of 5 million.
Our prodcut ranges are as follows:
• Hydraulic pumps, including Pneumatic ,Electric, Manual type (max up to 70 Mpa);
• Hydraulic jack cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Electric Hydraulic /pneumatic hydraulic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486Nm);
• Integrated hydraulic lifting system solutions
Dongyue’s products have been widely used in many fields such as automobile maintenance, metallurgy, oil and gas, chemical industry, wind power, lifting, construction, mining, railroad, shipping, etc.
