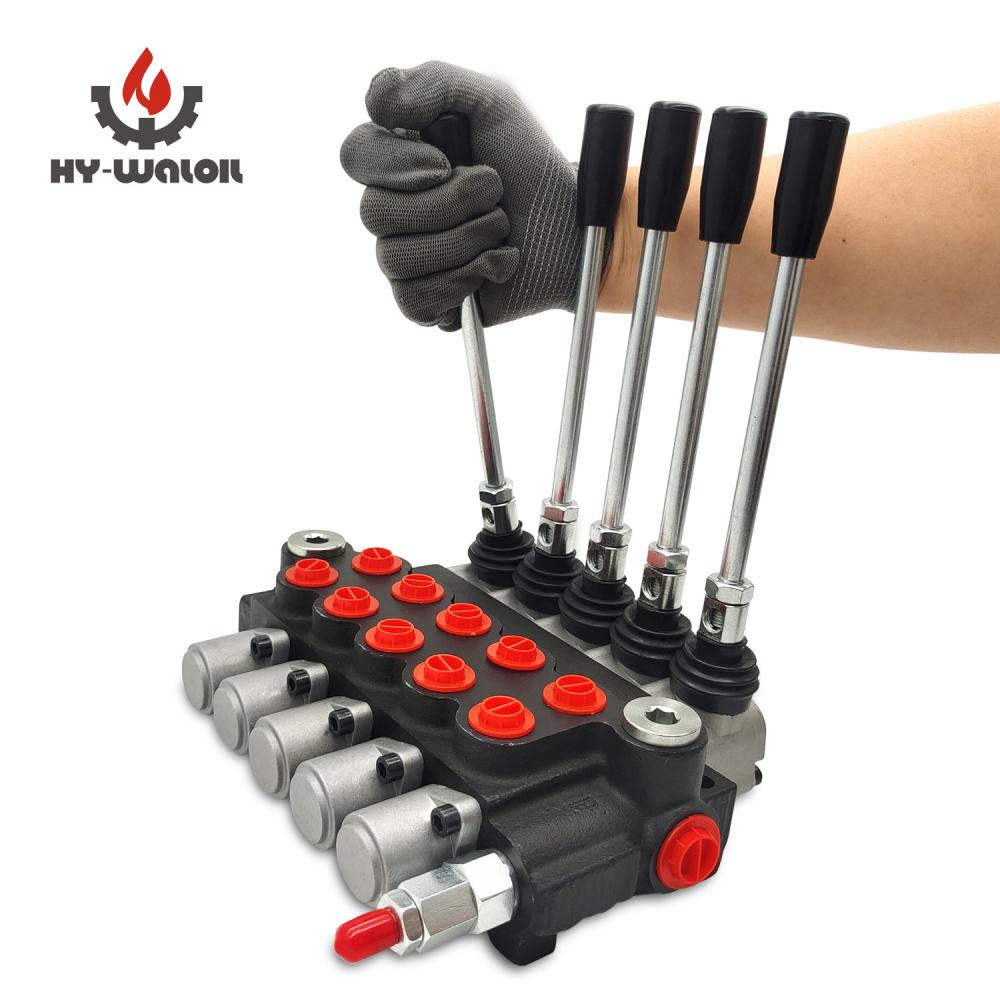

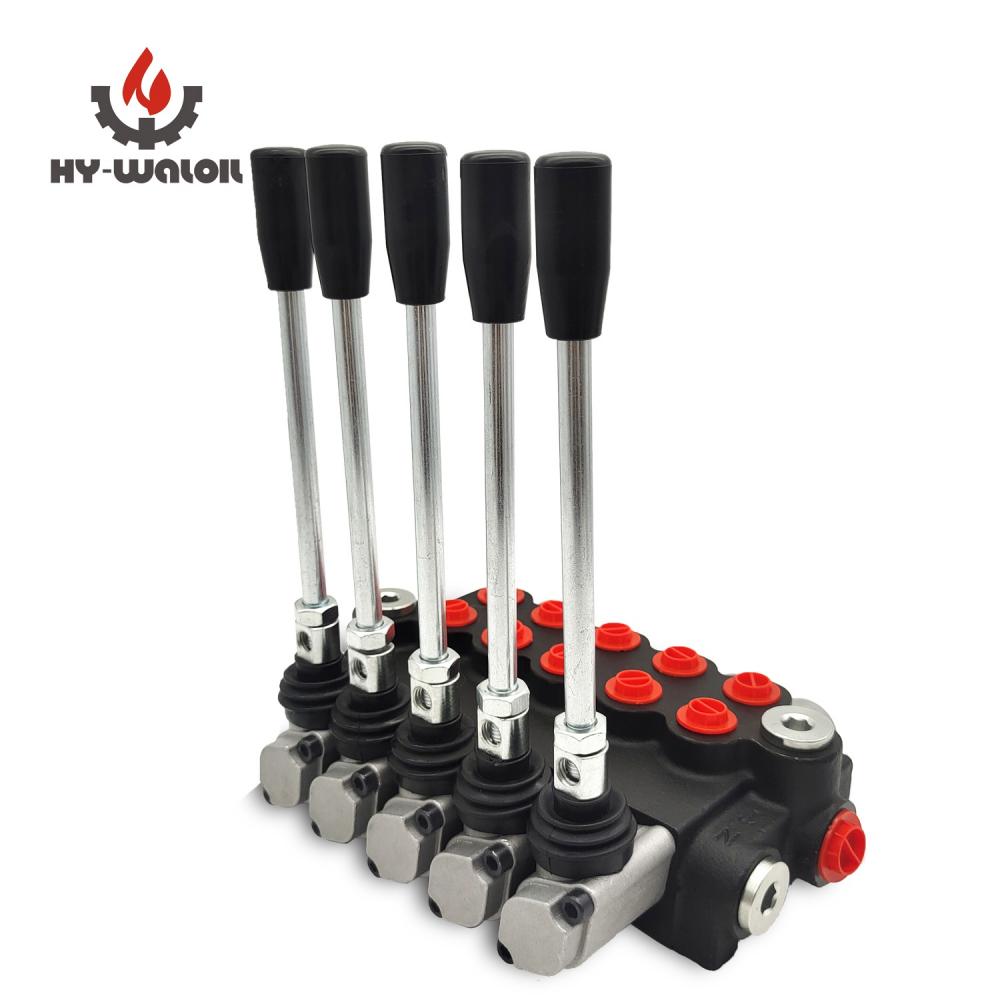

5P40 Hydraulic Multi-way Directional Valve
2 year ago
Description:
1. 5 Spool Hydraulic Directional Control Valve with compact design allows for installations in tight areas.
2. All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders.
3. Hydraulic Valve used for open center systems (Pump to Tank Flow) – closed center option available.
4. Anti-drop load checks on each spool.

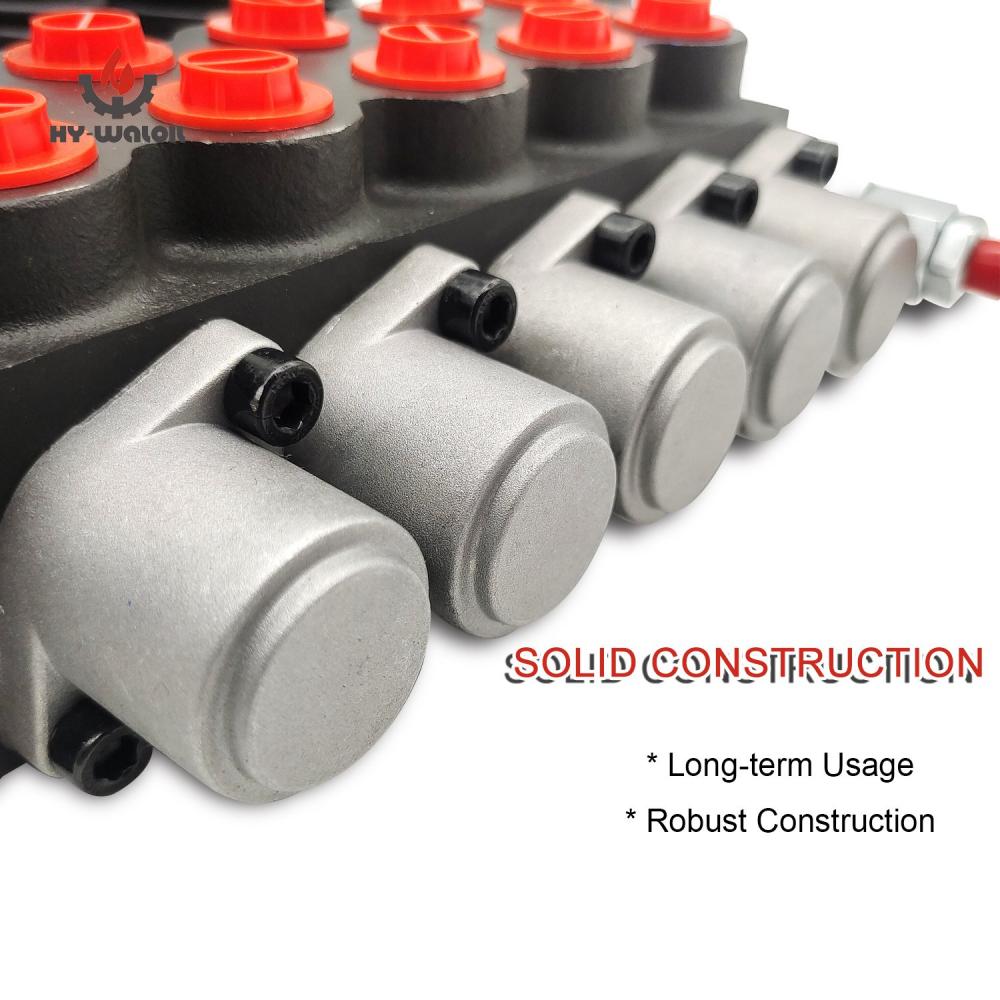

5. Monoblock Control Valve precision ground and hard chrome-plated spools assure a long life.
P40 Series Monoblock Control Valve
Max Operating Pressure
P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating
11 GPM (40 l/min)
A & B Work Ports
#8 SAE O-Ring (3/4”-16) Thread
Inlet/ Outlet Port
#10 SAE O-Ring (7/8”-14) Thread
N Port
#8 (1/2 – 14) G Thread (British Pipe Thread Parallel)
Spool stroke
6 mm
Filtration
10 to NAS 1638
Applications
Small tractors,Tractors loaders,Log splitters,Other mobile.
Feature
middle-high pressure monoblock construction
Option
manual, pneumatic control, electric and pneumatic control, hydraulic and electric control etc.
