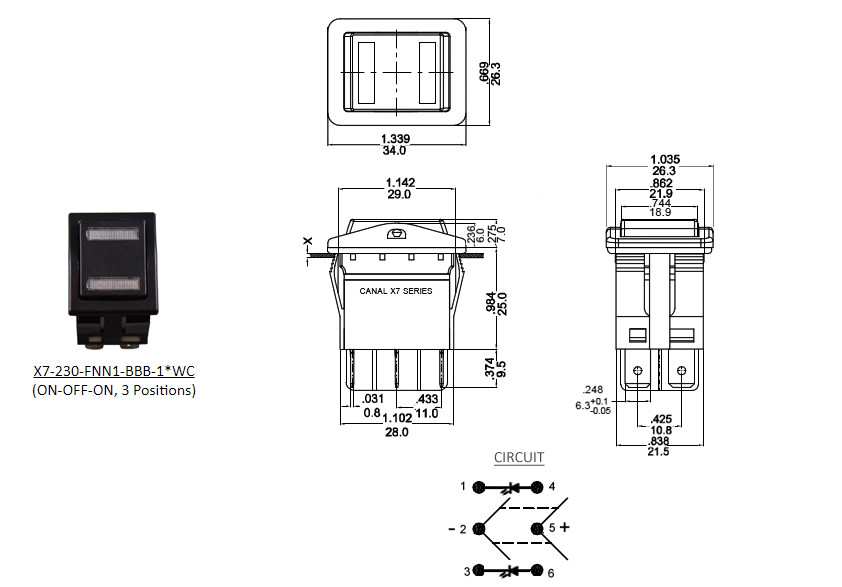

X7 rocker Switch

     IP67 Waterproof 25A Rocker Switches

With IP67 Built-in Waterproof, our X7 On Off Rocker Switches could realize  the heavy duty of 16, 20 or 25(8)A 125/250V. This series Marine Rocker Switches are also very excellent in the quality, which is UL and TAF certificates.

This IP67 Built-in Automotive Rocker Switches could support the big machinery work smoothly without unstable problem. The electrical life of this Car Waterproof Rocker Switches are 10,000 cycles. ON-OFF-ON, ON-ON, ON-OFF or other momentary functions available.

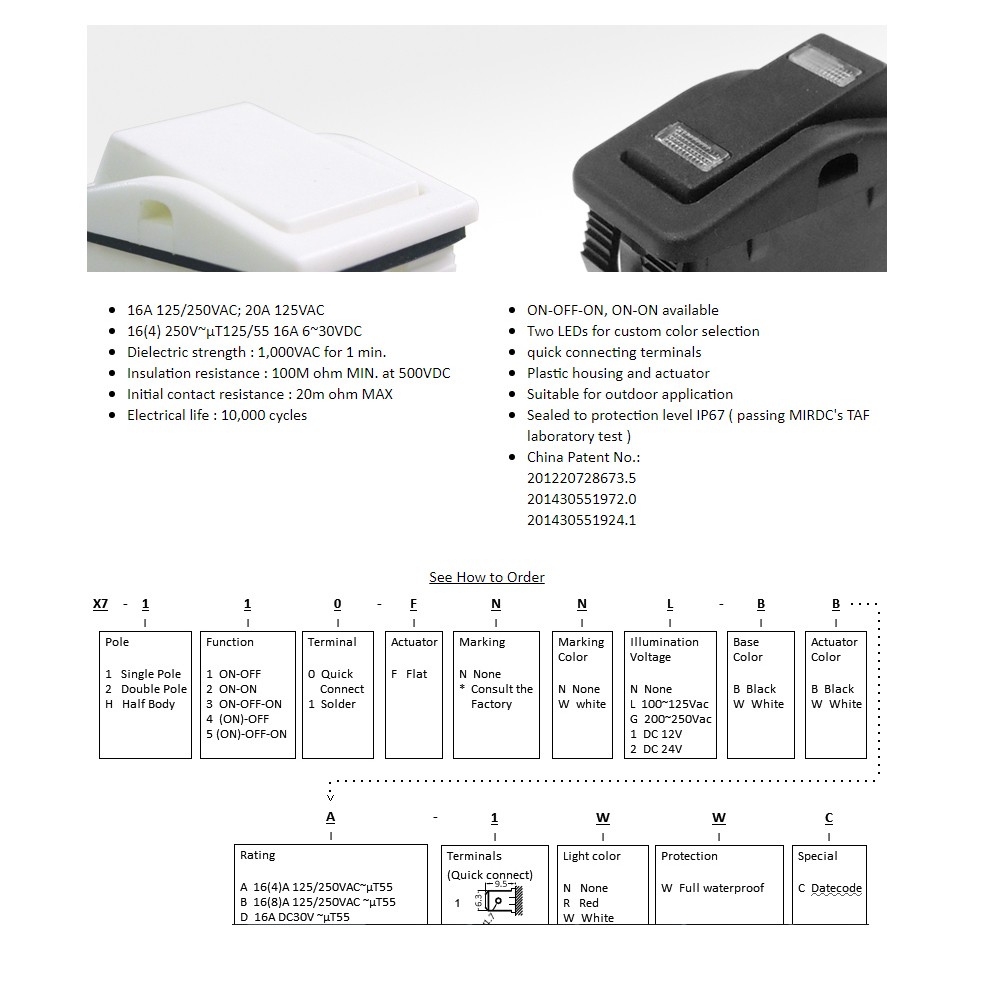

SPECIFICATIONS:

16, 20 or 25(8)A 125/250V~T55, IP67

16 or 20(8)A 125/250V~T125/55

Dielectric strength : 1,000VAC for 1 min.

Insulation resistance : 100M ohm MIN. at 500VDC

Initial contact resistance : 20m ohm MAX

Electrical life : 10,000 cycles

ON-OFF-ON, ON-ON, ON-OFF or other momentary functions available

Two LEDs for custom color selection

quick connecting terminals

Plastic housing and actuator

Suitable for outdoor application

Sealed to protection level IP67 ( passing MIRDC's TAF laboratory test )

Our Advantages

From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.
