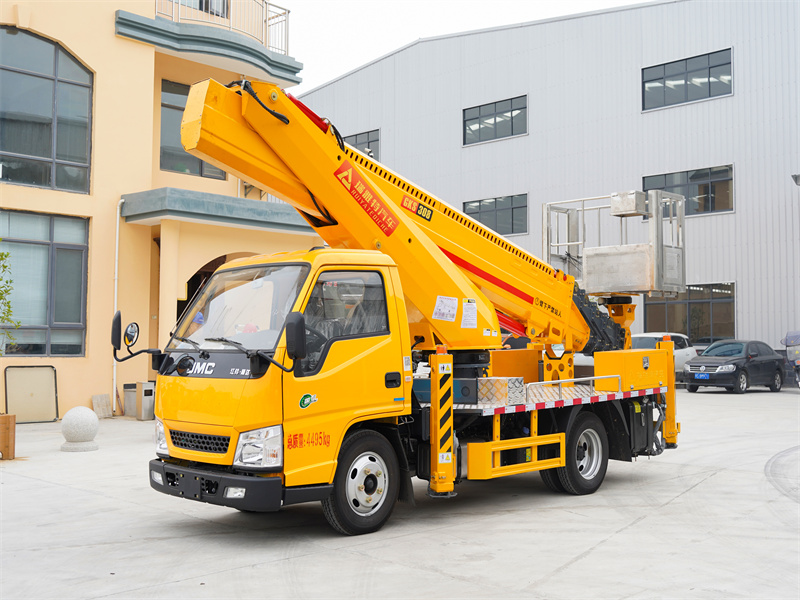

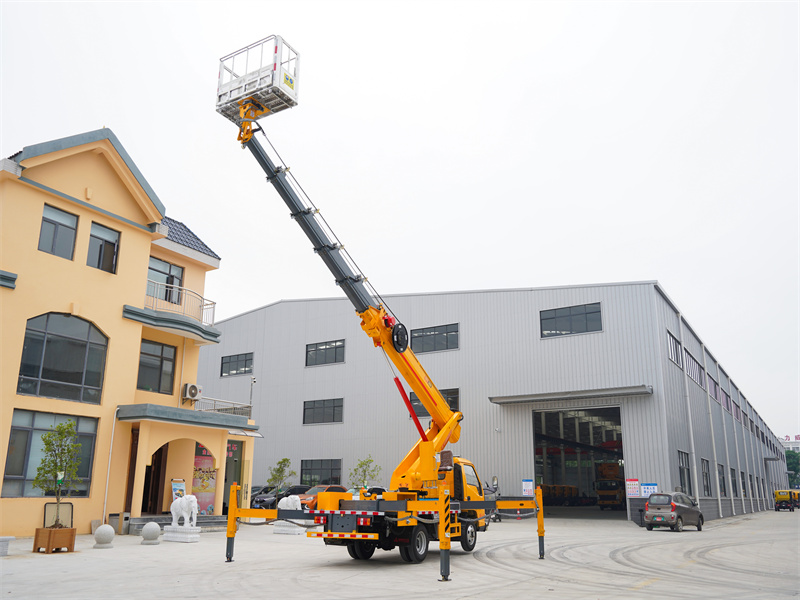

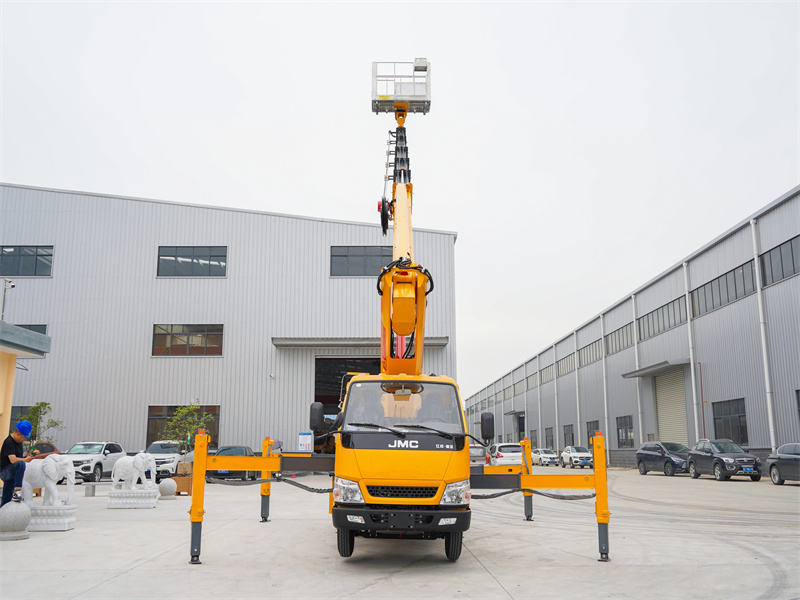

Jiangling Shunda 30.8m
2 year ago
|
category |
item |
unit |
data |
|
|
Overall length |
mm | 5995 |
|
Dimension parameter |
Overall width |
mm | 2100 |
|
|
Total height |
mm | 3160 |
|
Quality parameter |
Number of passengers |
people |
2/3 |
|
|
Gross mass |
kg | 4495 |
|
|
Working platform load rating |
kg | 200 |
|
|
Maximum operating height |
m | 30 |
|
|
Maximum operating height is operating range |
m |
4 |
|
|
Maximum operating range |
m | 23 |
|
|
The maximum operating range is the operating height |
m | 19 |
|
|
Lateral span of legs |
mm | 5300 |
|
|
Longitudinal span of legs |
mm | 5400 |
|
|
Front overhang |
mm | 1090 |
|
|
Rear overhang |
mm | 1545 |
|
|
wheelbase |
mm |
3360 |
|
|
Maximum travel speed |
km/h | 100 |
|
|
Minimum ground clearance |
mm | 420 |
|
|
|
|
|
If you need to know more about the vehicle information, you can directly call 13177185858 (the same number on wechat).
