100Hz Laser Tof Sensor 150m LiDAR For Drones

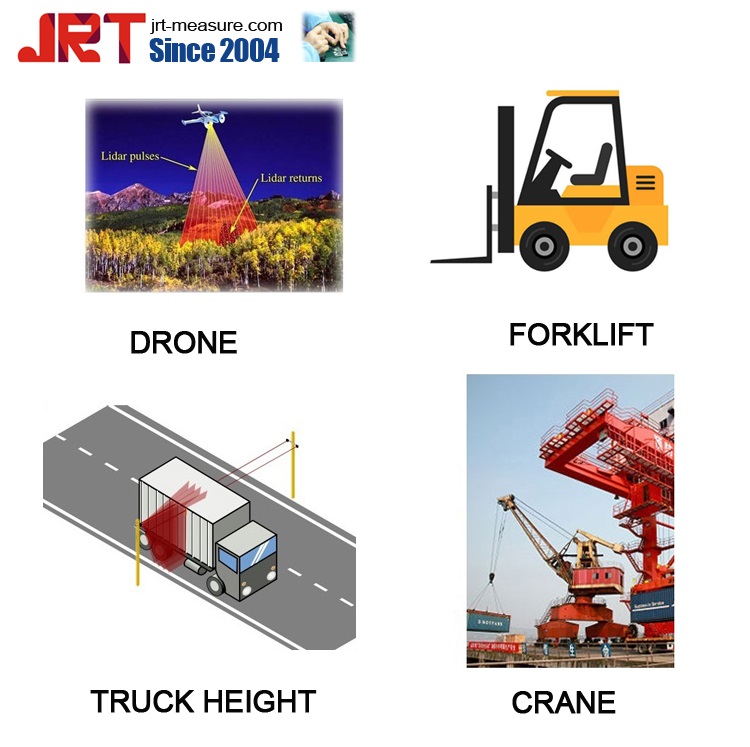

Hello, are you looking for a 150m long range and high frequency LiDAR sensor? The Tof Sensor system is extremely fast and can be used in almost all intelligent transport system, inculding drone measurement height, tunnel monitoring, collision avoidance system, underground parking lot if there is parking space etc.

Core technical parameters:
1> Size: 43*35*21mm, small and easy to install
2> Applicable to outdoor environment: under the sun, rainy, windy, foggy, snowy and other scenes, the range will not be affected.
3> Industrial wide temperature: -15℃~50℃ working temperature range
4> Eye-safe laser: 905nm, Class I laser
5> High frequency: 100 Hz
Contact us for more information

Why 100Hz LiDAR:

1. Reliable, fast, precise
Three interfaces optional: ttl, usb, rs232
Accuracy: +-± 8cm
High frequency: 100 Hz
2.Small, long range
Size:43*35*21mm
Measuring range, max up to 150 m

Detailed parameters

Measuring Accuracy: ± 10cm(<50m) /±1%(>50m)*
Measuring Range: 0.1- meters - 150 meters
Resolution: 1cm
Measuring frequency: Up to 100 Hz
Invisible measuring: 905nm
Laser type: Class I

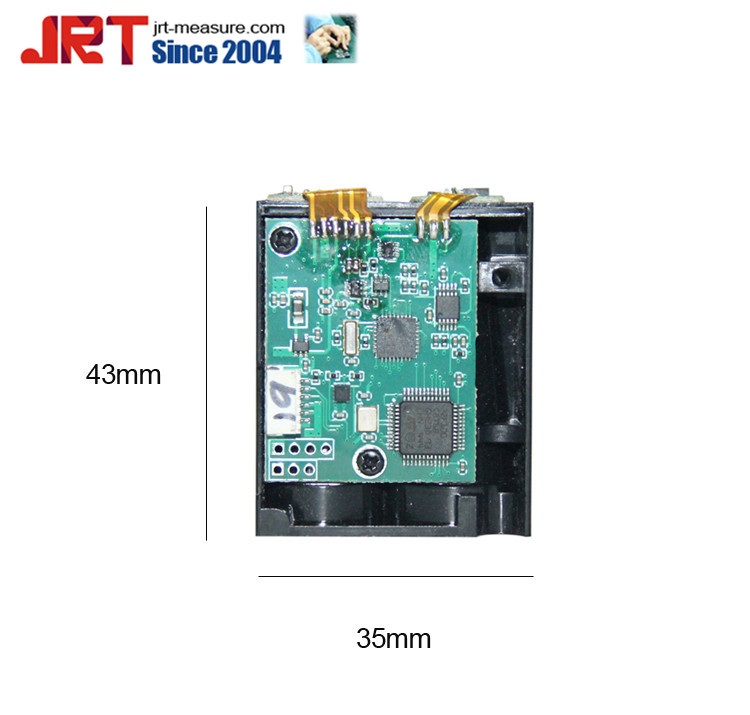

Size: 43*35*21mm
Weight: 20g
Input voltage: 8-36V
Interface options: Serial/usb/rs232/rs485/bluetooth
Working temperature: -15℃~50℃
Storage temperature: -40℃~85℃

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Frequency would be affected by environment.

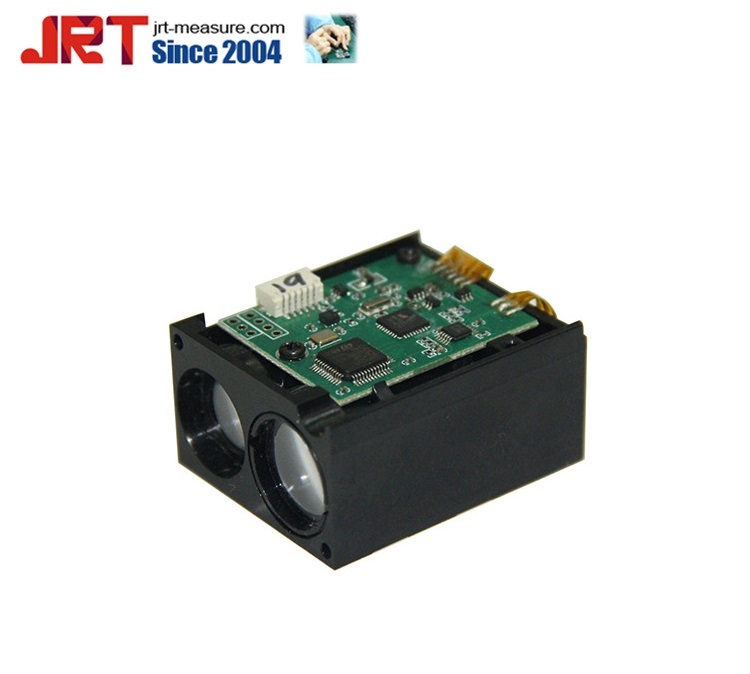

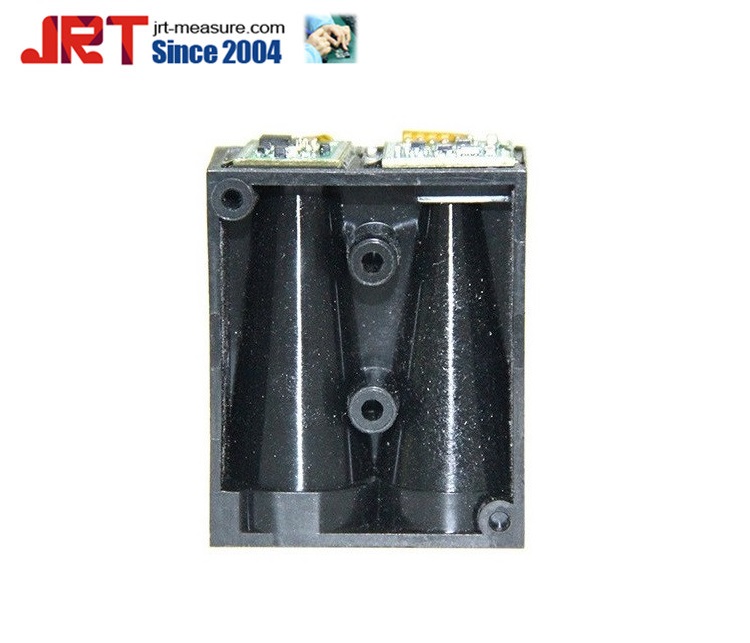

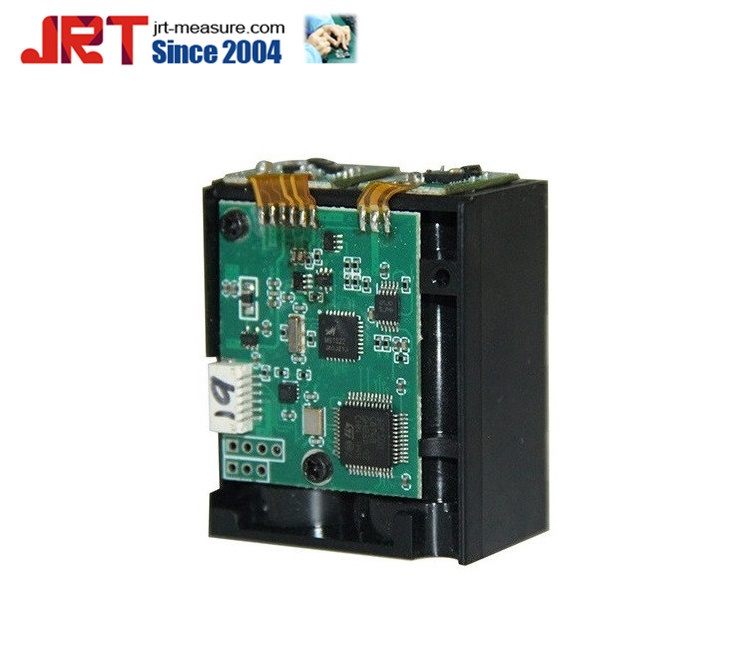

More Detailed Pictures:

TTL & USB connector
