tempered screen printed glass
10 month ago
Product details

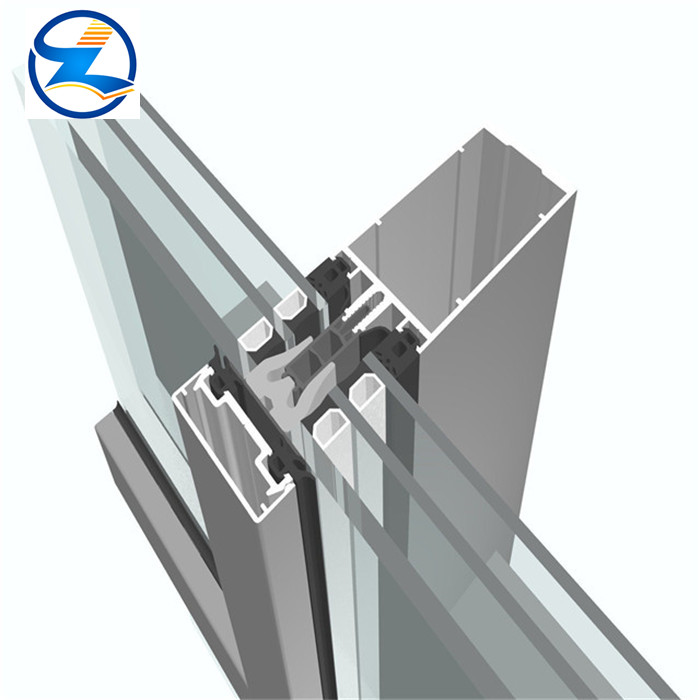

Curtain Wall
A Curtain wall system is an outer covering of a building in which the outer walls are non-structural, but merely keep the weather out and the occupants in As the curtain wall is non-structural it can be made of a lightweight material, reducing construction costs When glass is used as the Curtain wall a great advantage is that natural light can penetrate deeper within the building
|
Glass
|
Single tempered glass
|
6/8/10/12mm
|
|
Laminated glass
|
5mm+0.38/0.76/1.52pvb+5mm
|
|
|

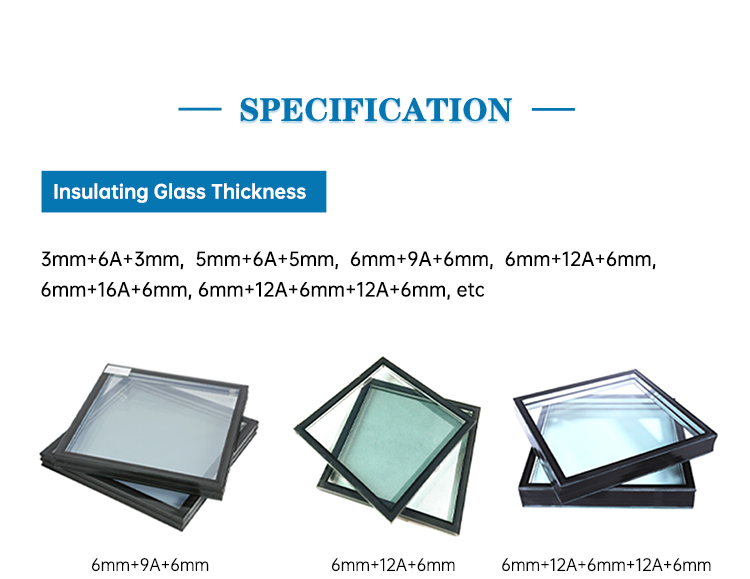

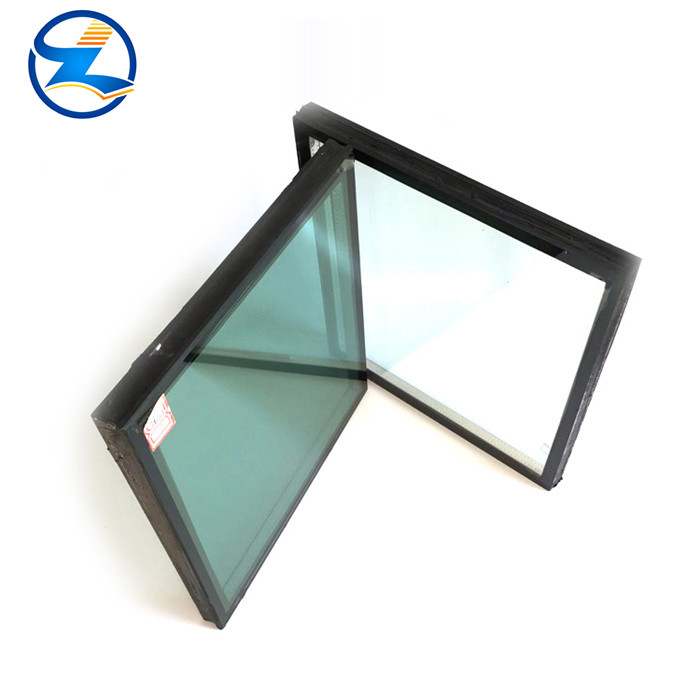

Double glazing tempered glass
|
6mm+6A/9A/12A/27A+6mm
|
|
|

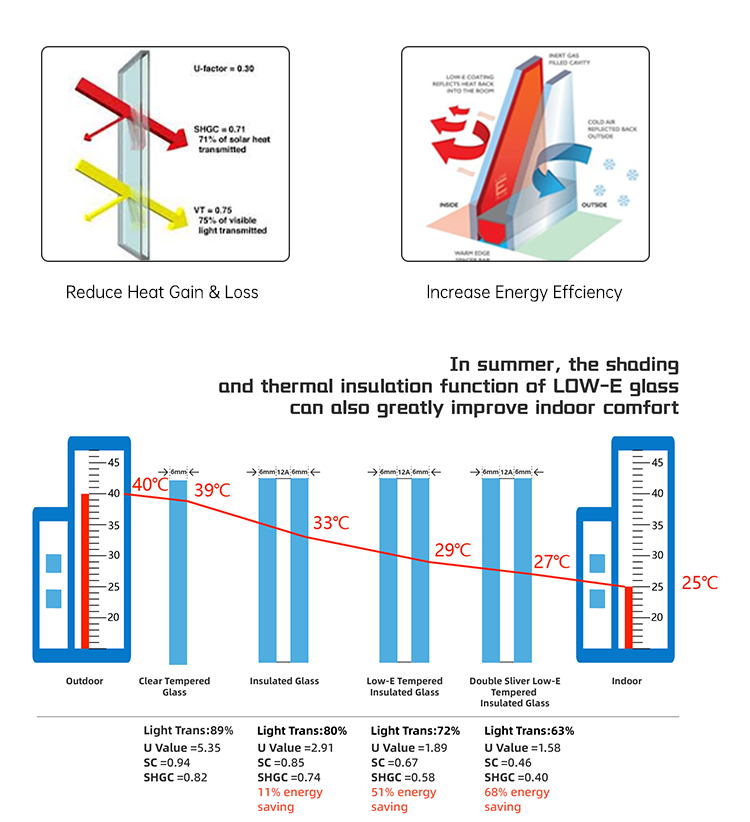

Low-E glass
|
|
|
|
tinted/clear ,according to customer's requirement
|
|
|
|
Frame
|
Alumiunium alloy
|
|
|
Hardware
|
High-quality made in China.
|
|
|
Accessories
|
Full set of included. gasket,silicon,sealant rubber,screws.
|
Standard Glass Thickness for Insulated Glass
Considering the wind pressure and to avoid glass shaking after the installation of insulating glass.The following standards are strongly recommended for the thickness of glass before insulating.
|
Area（m²）
|
2.0-2.6 ㎡
|
2.6-2.8 ㎡
|
2.8-3.6 ㎡
|
3.6-3.8 ㎡
|
||
|
Width/Height
（W/H=K) |
/
|
K＜0.75
K＞1.3 |
K≥0.75
K≤1.3 |
/
|
K＜0.75
K＞1.3 |
K≥0.75
K≤1.3 |
|
Glass Thickness
|
5mm
|
5mm
|
6mm
|
6mm
|
6mm
|
8mm
|
|
Area（m²）
|
3.8-5.6 ㎡
|
5.6-5.8 ㎡
|
5.8-7.6 ㎡
|
7.6-7.8 ㎡
|
||
|
Width/Height
（W/H=K) |
/
|
K＜0.75
K＞1.3 |
K≥0.75
K≤1.3 |
/
|
K＜0.75
K＞1.3 |
K≥0.75
K≤1.3 |
|
Glass Thickness
|
8mm
|
8mm
|
10mm
|
10mm
|
10mm
|
12mm
|
