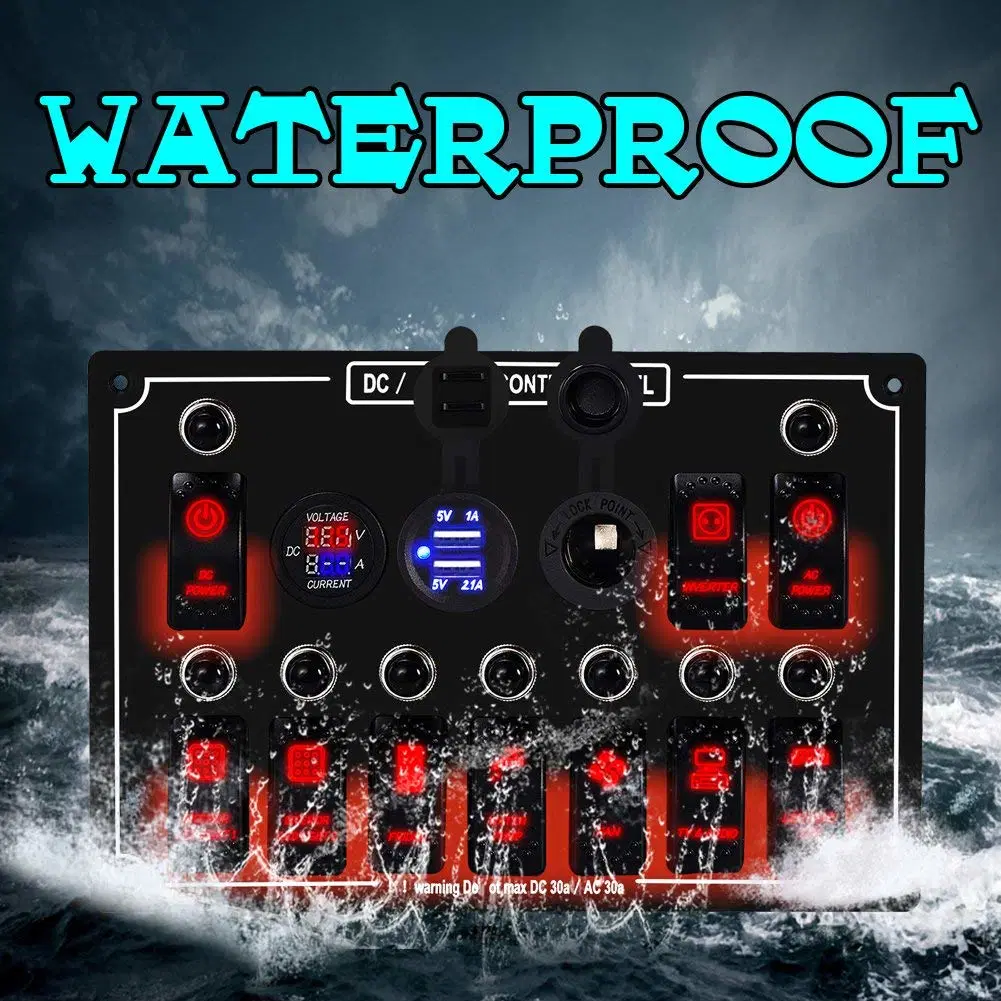

10 Gang Circuit LED Car Marine Waterproof 5 Pin Boat Rocker Switch Panel with Fuse Dual USB Slot LED Light + Power Socket Breaker Voltmeter for RV Car Boat

Product Description
1,10 Gang truck/car/marine/boat/yacht AC/DC Switch Panel. Super high quality auto/Yacht/Boat Tuning Switch Panel with LED working indicator light.
2,Rating: DC12-24V, AC110-230V; Output short circuit protection, overload protection. Againest polarity reversal, and multiple protection.
3,Great switch kit with buttons and parts comes unassembled. Easier to modify and install wires.
4,Panel comes with pre-wired, mounting screws.Size for panel:260*175*90mm
5,Switch are marine-grade. Waterproof rating is 67 and approve Rhos and CE. Totally friendly-environment.

Specification:
- Heavy duty ABS plastic face panel
- Size for panel:183*120*75mm(7.20"x47.24"x2.95")
- Hole Size: 167 x 104mm (6.57" x 4.09")

Rocker Switch:
Loop Circuit:ON-OFF
Maximum power: 240W
Input voltage: DC12V / 24V
Protection class: IP65
Operating Temperature:-25ºC-80ºC

Dual USB Port:
• - Working voltage:12-24V
• - Output current:3.1A
• - Output voltage:5V
• - LED Light:Blue

Cigarette Lighter Socket:
• - Working voltage:12-24V
• - Output voltage:12-24V
• - LED Light:Blue

Description on Voltmeter
- Measuring DC voltage, with anti-reverse, short circuit protection
- The DC voltmeter range 12-24V, has reverse polarity protection function
- Used to monitor the battery voltage and battery voltage state
- This can also be used for other products voltage measurement purposes
- Real-time detection of battery voltage, using a battery used under normal operating voltage
- This will help the users to monitor and maintain the bettery health
- A Proper maintenance will extend and protect the battery and engine life
