------------------------------------------ -----------------Product View-----------------------------------------------------------------

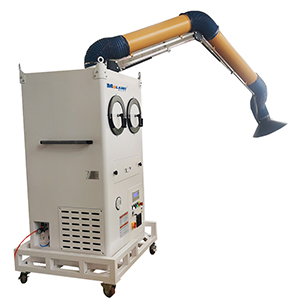

MLWF220S Industrial Fume Extractor
Mobile Fume Extractors are designed to be utilized as an engineering safety control to protect users from the occupational hazards presented with various welding applications. Given that the vast majority of the respirable particles in the airstream are under 0.4 microns in size, a filtered ventilation system that can filter down to that level is what is required to ensure the safety and health of the welder.
-------------------------------------------------------Feaatures at a Glance------------------------------------------------------------
Left View
Front View
Right View
-------------------------------------------------------Product Specifications------------------------------------------------------------
Model
MLWF220S
Motor Power
2.2KW
Working Voltage
380V 50Hz
Air Volume
2200m^3/h
Extraction Arm
Dia.200*3000mm (External Support Arm)
Filtering Accuracy
0.3um
Filter Material
Imported flame retardant coated polyester fiber
Cleaning Mode
Automatic Pulse Back Blow + Manual Cleaning
Filtering Area
11m^2
Noise Level
72±3dBA
Dimension
900*800*1700mm
Weight
220kg
-------------------------------------------------------Product Configuration------------------------------------------------------------

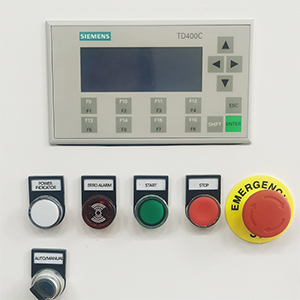

Seimens Intelligent Control System
Imported Flame Retardant Coated Polyester Filter Element
Auto + Manual Cleaning Mode

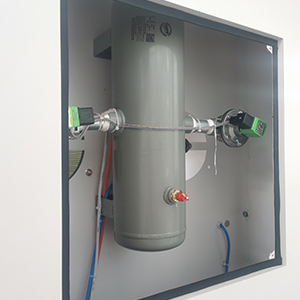

Compressed Air Storage Tank
2.2KW Motor

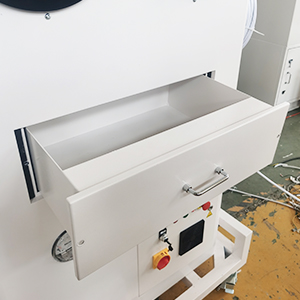

Large Capacity Dust Collection Drawer
----------------------------------------------------Sale and Service Network---------------------------------------------------------
------------------------------------------------------Customer Feedback-------------------------------------------------------------
-------------------------------------------------------------------FAQ-------------------------------------------------------------------
Q1:What's the OEM serivce of Moland?
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
Q2: What's the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
