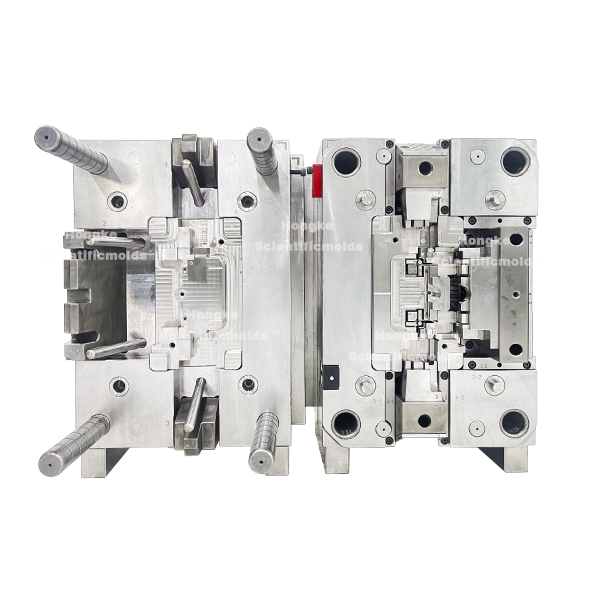

This electrical product injection mold presents several significant manufacturing challenges due to its highly detailed structure, complex parting design, and the integration of multiple precision mechanisms within a limited mold space. The product geometry includes deep cavities, sharp internal corners, and intricate ribs that require extremely precise CNC machining and EDM processing to achieve tight dimensional tolerances and perfectly matching surfaces. The mold also incorporates multi-directional sliders, lifters, and collapsing mechanisms to release complex undercuts, making the internal structure dense and requiring meticulous alignment control. Even slight deviations in parallelism or center positioning can lead to severe issues such as part deformation, interference during ejection, or premature wear of moving components. In addition, ensuring uniform packing and minimizing sink marks on thick-to-thin transitions is technically demanding, particularly when dealing with engineering plastics that require precise temperature and flow control.

The mold base steel is S50C and mold insert steel uses S136 steel with a hardness of HRC48 - 52, and the mold life of the steel can reach 500,000shots or more. Our company is very experienced in Connecter Plastic Mould, Elbow injection mold, PVC Injection Mould. Steel selection and heat treatment add another layer of complexity—each insert, core, and sliding element must withstand long production cycles, maintain hardness consistency, and resist wear even under high injection pressure. Integration of these mechanical, thermal, and processing considerations requires a high level of engineering sophistication, advanced equipment, and strict quality control at every stage of mold manufacturing. Despite these challenges, our team excels at designing and building such demanding injection molds. With years of experience, state-of-the-art machining capability, and a proven track record of solving complex molding problems, we are fully capable of executing these technologies to perfection and delivering molds that perform with outstanding precision, stability, and longevity in mass production.

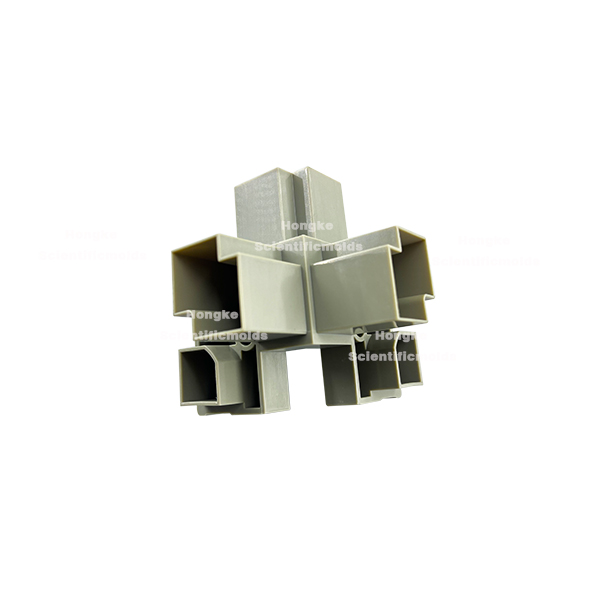

Mould Name: Fine Structure Electrical Product Injection Mold

Part Material: PVC

Mould Life: 500000~1000000 Cycles

Lead Time: mold making 4-5 weeks, injection molding production 7-15 days depends on quantities

Mould Base Steel: S50C

Mould Insert Steel: S136

injection molding contract manufacturing
