High-Temperature Durable Self Closing Braided Nomex Sleeve1
2 year ago
Product details

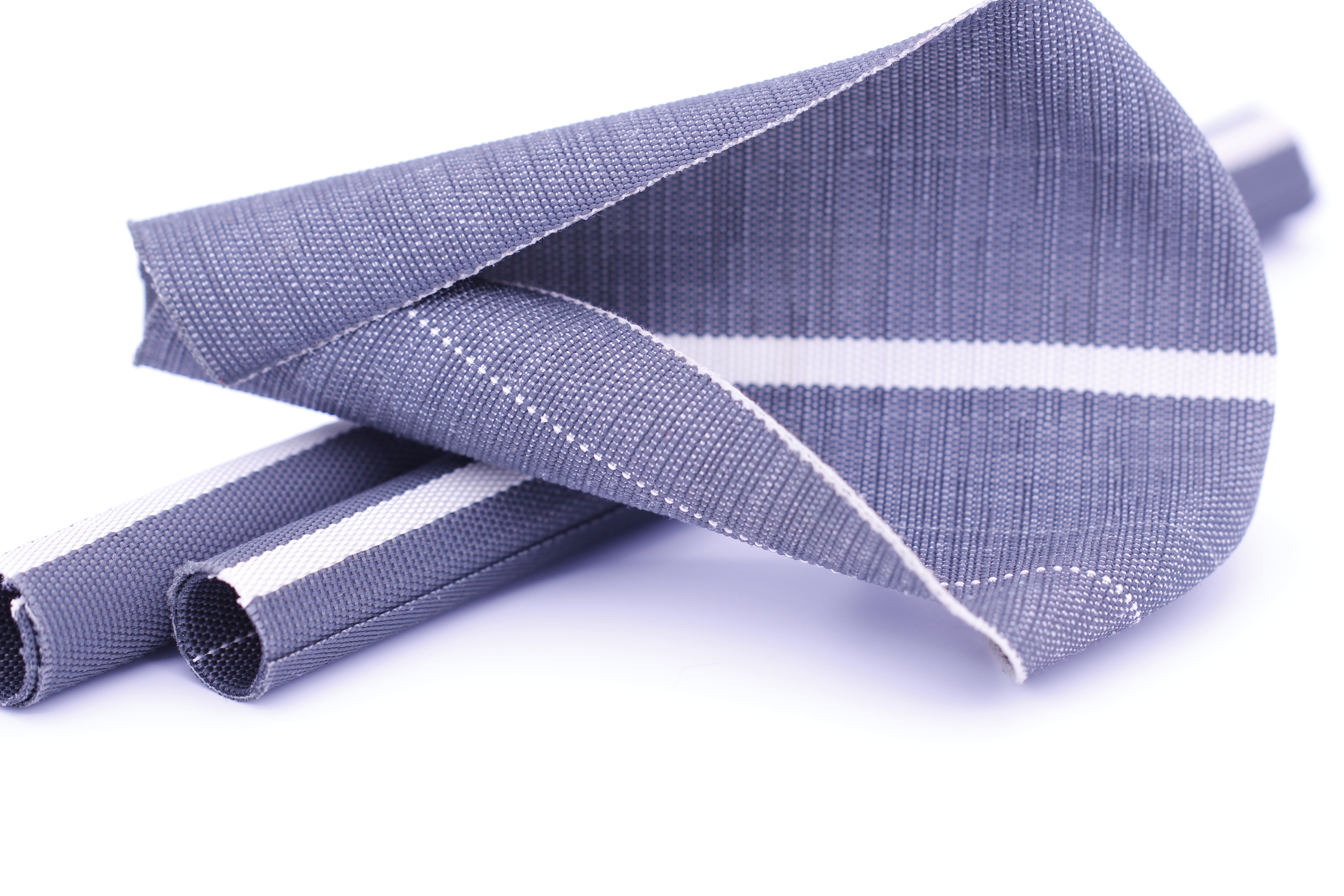

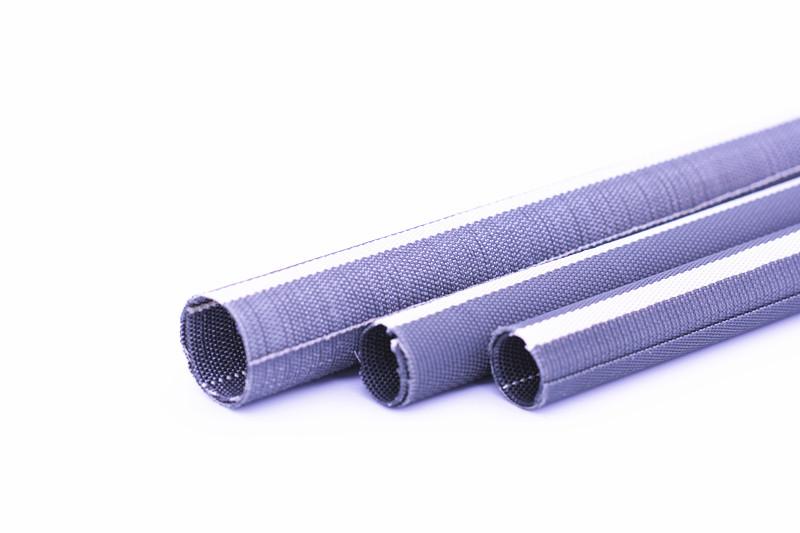

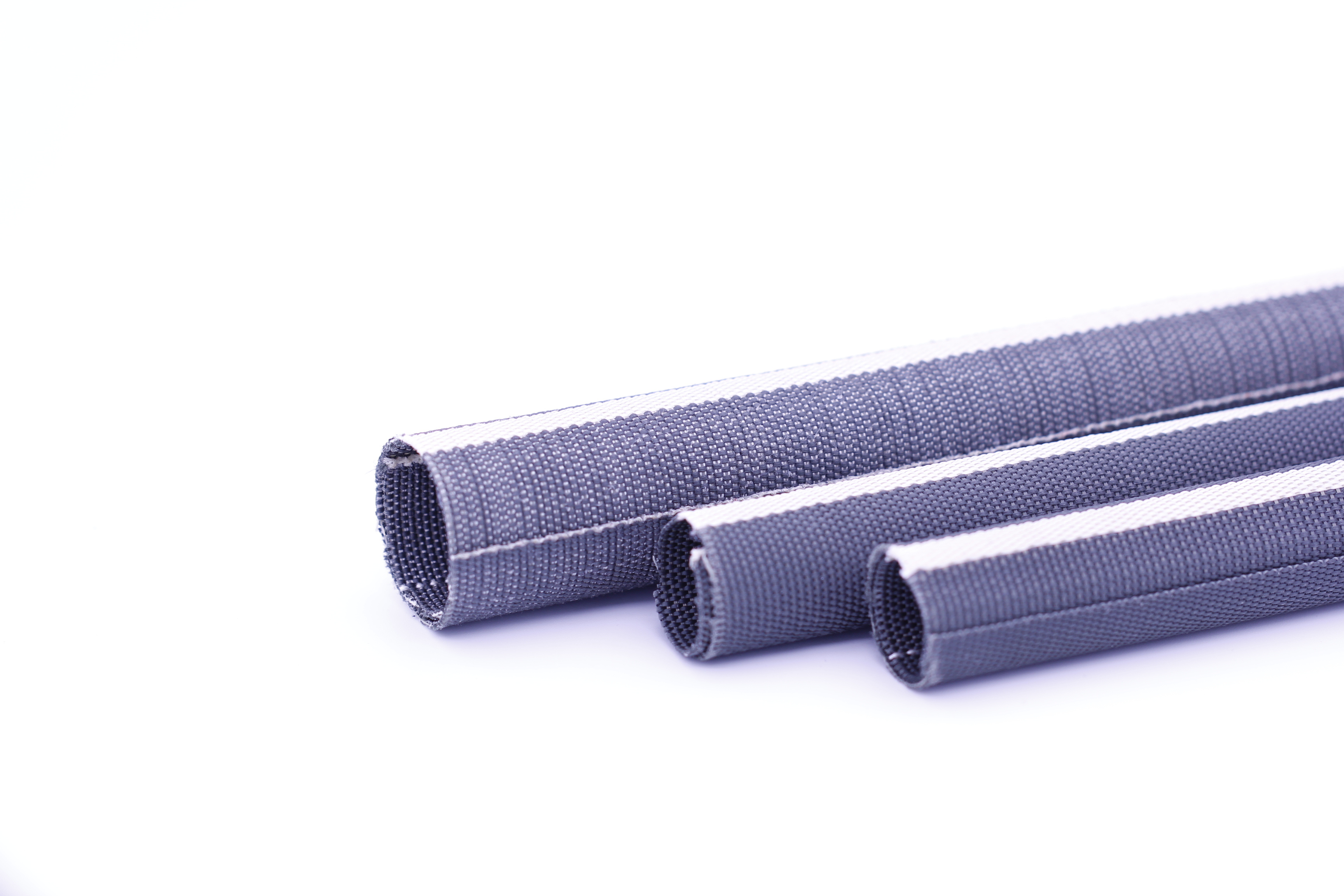

Nomex Self Closing Sleeve
It is extremely tough and provides cables with both thermal protection and high abrasion-resistance.
Nomex sleeving braided with nomex multifilament fibres. This light weight braided product exhibits an exceptional thermal stability and chemical, solvent and abrasion resistance.Liansi Nomex Self Closing Sleeve braided can protect cable application in temperatures up to 350°C, and hose not from being damaged by oil, acids, chemicals, and solvents and makes them looks elegant!
Applications :Automotive wire harness protection
Nomex Woven Self Closing Sleeve is widely used in the field of military, aviation, fire rescue, and other aspects that require superior flame resistance! It has been used for years by race car drivers, fire departments, and oil rig personnel to provide that extra level of protection from the dangers that come with working in and around intense flame and heat.
Technical parameters
Operating temperature
﹣196℃ +350℃
Melting point
NA
Fire rating
UL-94 V-0
Certification
ROHS
color
Natural , army green
Cutting tools
Scissors
Scratch with the back of the knife, the braided sleeve is not worn.
|
P/N
|
specification
|
ID
|
OD
|
package
|
|
LS-S7VS10
|
10mm
|
10±1mm
|
13±2mm
|
200m/roll
|
|
LS-S7VS15
|
15mm
|
15±1mm
|
18±2mm
|
200m/roll
|
|
LS-S7VS20
|
20mm
|
20±2mm
|
23±2mm
|
150m/roll
|
|
LS-S7VS25
|
25mm
|
25±2mm
|
28±2mm
|
100m/roll
|
|
LS-S7VS30
|
30mm
|
30±5mm
|
33±2mm
|
50m/roll
|
|
LS-S7VS35
|
35mm
|
35±5mm
|
38±2mm
|
50m/roll
|
|
LS-S7VS40
|
40mm
|
40±5mm
|
43±2mm
|
50m/roll
|
|
LS-S7VS45
|
45mm
|
45±5mm
|
48±2mm
|
50m/roll
|
|
LS-S7VS50
|
50mm
|
50±5mm
|
53±2mm
|
25m/roll
|
|
LS-S7VS55
|
55mm
|
55±5mm
|
58±2mm
|
25m/roll
|
|
LS-S7VS60
|
60mm
|
60±5mm
|
63±2mm
|
25m/roll
|
|
LS-S7VS100
|
100mm
|
100±5mm
|
103±2mm
|
25m/roll
|
