U Series Industrial Radar Sensor_L type_SW85

20m sensor wireless distance measurement system

INTRODUCTION
The 20m laser range sensor wireless is adopted the bluestooth distance measurement system to monitor distance. Most distributor ordering from us, usually do not have the accessory.
If you need your project to weld the interface and use elements outdoors, pls tell us. For your first time test, we will help weld it for you.

SPECIFICATION
Operating voltage: DC3.0-3.3V
Largest current: 300mA
Operating current: 30mA
Operating range: 3cm ~ 1m
Resolution: 1mm
Detecting frequency: 3hz
Operating Temperature: 0 ~ 40°C
Dimension: L41mm*W17mm*H7mm
Weight: 4g

NOTES:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

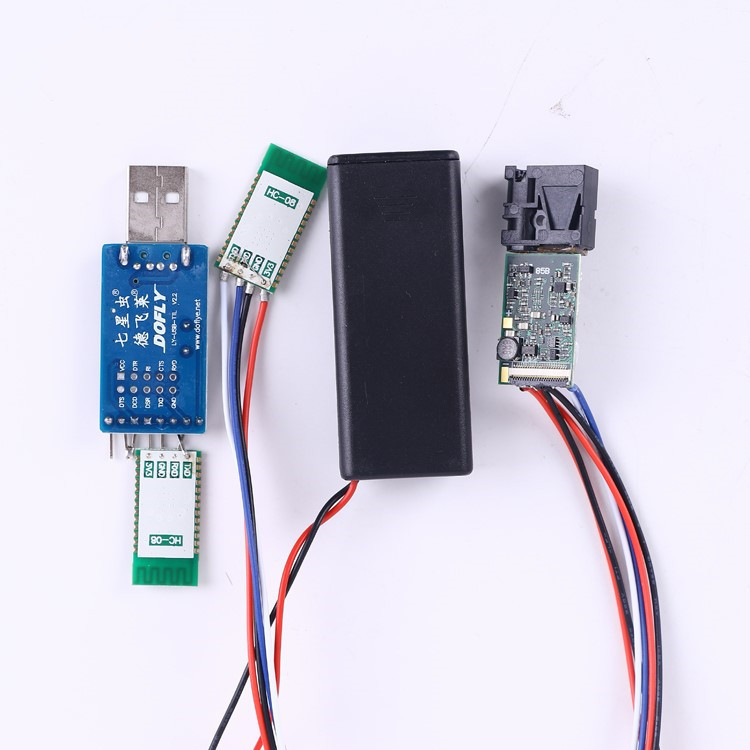

Detailed Pictures

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor, Tof LiDAR Sensors.
