Compact Laser for Handheld LIBS

CNI independently developed and manufactured compact 1064nm all-solid-state passively Q-switched laser, which features a small size and stable performance, making it ideal for integration as a built-in light source in handheld LIBS applications.

This product comes in two models: the MPL-T-1064 and the EO-1064-P. The MPL-T-1064 delivers single pulse energies ranging from 1 to 100 microjoules, with pulse durations as short as 4 nanoseconds (with an optional 1.5 nanosecond setting). It operates at repetition rates between 1 and 3 kilohertz. The EO-1064-P model provides slightly lower pulse energy, from 1 to 30 microjoules, with a pulse duration of 2.6 nanoseconds and a repetition rate of 5 kilohertz. Both models are engineered to meet the demands of precision measurement, material analysis, and other high-accuracy applications.

MPL-T-1064 Features

²Frequency tunable

²Exceptional Stability

²High-quality beamz

EO-1064-P Features

²Easy integration

²High-quality beam

²Multiple power supply options (self-provided or CNI-customized)

Specifications

Dimensions

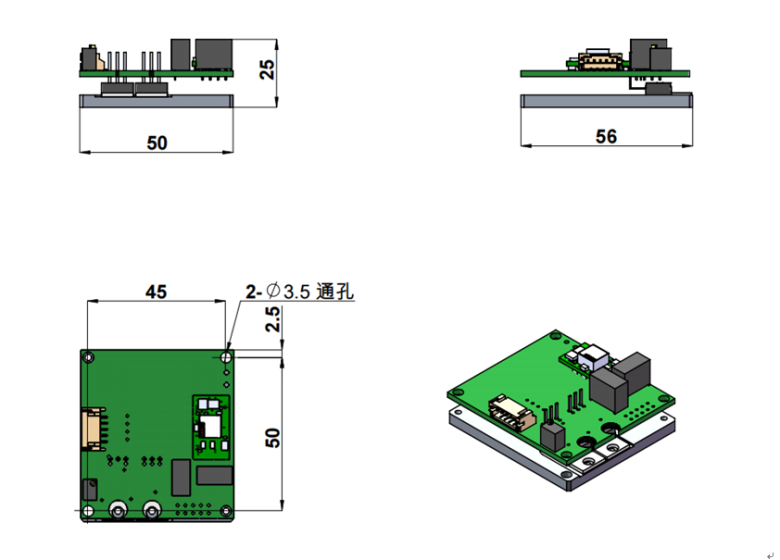

MPL-T-1064 LASER HEAD: 110×29×33mm3 , 0.34kg	MPL-T-1064 POWER SUPPLY: 56×50×25mm3 , 0.07kg	EO-1064-P
