5mm LED 410nm led Purple LED UV LED
2 year ago
- UV LED -
504VC40P1L12

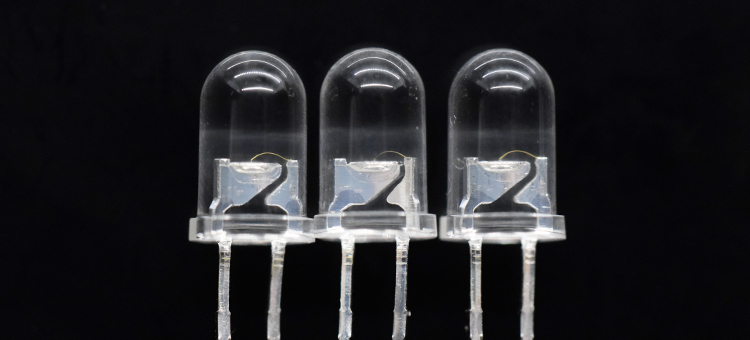

Generally, it refers to the LED with the light-emitting center wavelength below 400nm, but sometimes it is called near UV LED when the light-emitting wavelength is greater than 380nm, and deep UV LED when the light-emitting wavelength is shorter than 300nm. We pckaged this purple LED with 5mm DIP LED case.
- Size: 5mm Diameter 8.7mm High
- Pin length: 29mm
- Color: Purple LED
- Type: water clear
- Chip brand: Epistar
- Different color are available
- Different wavelength are available
- Warranty: 5 Years
- RoHS, REACH, EN62471
- Uniform light output
- Long life-solid state reliability
- Low Power consumption
-Anti UV epoxy resin package
-High temperature resistance

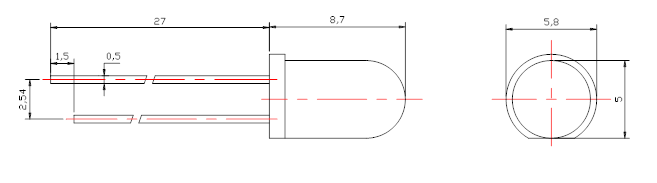

-Dimension Parameters -
*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.
These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.
- Emitting Color -
*Colors in the photo was took by camera, please take actual emitting color as standard.
- Electrical Parameters -
Absolute Maximum Ratings At Ta=25℃
|
Parameter |
Symbol |
Rating |
Unit |
|
Power Dissipation |
Pd |
75 |
mW |
|
Pulse Forward Current |
IFP |
100 |
mA |
|
Forward Current |
IF |
30 |
mA |
|
Reverse Voltage |
VR |
5 |
V |
|
Junction Temperature |
Tj |
100 |
°C |
|
Operating Temperature |
Topr |
-40 ~ +80 |
°C |
|
Storage Temperature Range |
Tstg |
-40 ~ +100 |
°C |
|
Soldering Temperature |
Tsol |
260 |
°C |
|
Electro-Static-Discharge(HBM) |
ESD |
2000 |
V |
|
Warranty |
Time |
5 |
Years |
|
Antistatic bag |
Piece |
1000 |
Back |
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Test Condition |
||
|
Forward Voltage |
VF |
2.8 |
3.0 |
3.4 |
V |
IF=20mA |
||
|
Luminous Intensity |
IV |
6000 |
|
14000 |
mcd |
IF=20mA |
||
|
Peak Wavelength |
λP |
395 |
400 |
415 |
nm |
IF=20mA |
||
|
Half Width |
Dl |
|
15 |
|
nm |
IF=20mA |
||
|
Viewing Half Angle |
2q1/2 |
|
±10 |
|
deg |
IF=20mA |
||
|
Reverse Current |
IR |
|
|
5 |
uA |
VR=5V |
||
|
Rise Time |
tr |
|
10 |
|
ns |
IF=20mA |
||
|
Fall Time |
tf |
|
10 |
|
ns |
IF=20mA |
||
Optical and Electrical Characteristics( Tc=25℃)
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
- Golden Wire Connection -
*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection
- Packing -
*We package this LED with 1000pcs in a bag Normally. We also can package it as your requirement.
