TRIAC BT139X-600D TO220F
2 year ago
P/N: YZPST-BT139 Series 16A Triacs
YZPST-BT139X-600D
DESCRIPTION:
With low holding and latching current, BT139 Series triacs are especially recommended for use on middle and small resistance type power load.
MAIN FEATURES:|
symbol |
value |
unit |
|
IT(RMS) |
16 |
A |
|
VDRM/VRRM |
600/800 |
V |
|
VTM |
≤1.6 |
V |
ABSOLUTE MAXIMUM RATINGS:
Average gate power dissipation
PG(AV)
0.5
W
Peak gate power
PGM
5
W
Parameter
Symbol
Value
Unit
Storage junction temperature range
Tstg
-40~150
℃
Operating junction temperature range
Tj
-40~125
℃
Repetitive peak off-state voltage (Tj=25℃)
VDRM
600/800
V
Repetitive peak reverse voltage (Tj=25℃)
VRRM
600/800
V
RMS on-state current
IT(RMS)
16
A
Non repetitive surge peak on-state current
(full cycle, F=50Hz)
ITSM
140
A
I2t value for fusing (tp=10ms)
I2t
98
A2s
Critical rate of rise of on-state current (IG=2 × IGT)
Ⅰ- Ⅱ-Ⅲ
50
dI/dt
Ⅳ
10
A/ μs
Peak gate current
IGM
2
A
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
| Parameter | Value | ||||||
| Test Condition | Quadrant | D | E | F | Unit | ||
| Ⅰ- Ⅱ-Ⅲ | 5 | 10 | 25 | ||||
| IGT | Ⅳ | 10 | 25 | 70 | mA | ||
| VGT | VD=12V, RL=33Ω | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MAX | 1.3 | V | ||
| VGD | VD=VDRM | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MIN | 0.2 | V | ||
| IH | IT=100mA | MAX | 10 | 20 | 40 | mA | |
| Ⅰ-Ⅲ-Ⅳ | 15 | 30 | 50 | ||||
| IL | IG=1.2IGT | Ⅱ | MAX | 20 | 40 | 70 | mA |
| VD=0.66×VDRM Tj=125℃ Gate open | |||||||
| dV/dt | MIN | 20 | 50 | 100 | V/ µs | ||
THERMAL RESISTANCES
| Symbol | Test Condition | Value | Unit | |
| TO-220C | 1.3 | |||
| Rth(j-c) | junction to case(AC) | TO-220A(Ins) | 2 | ℃/W |

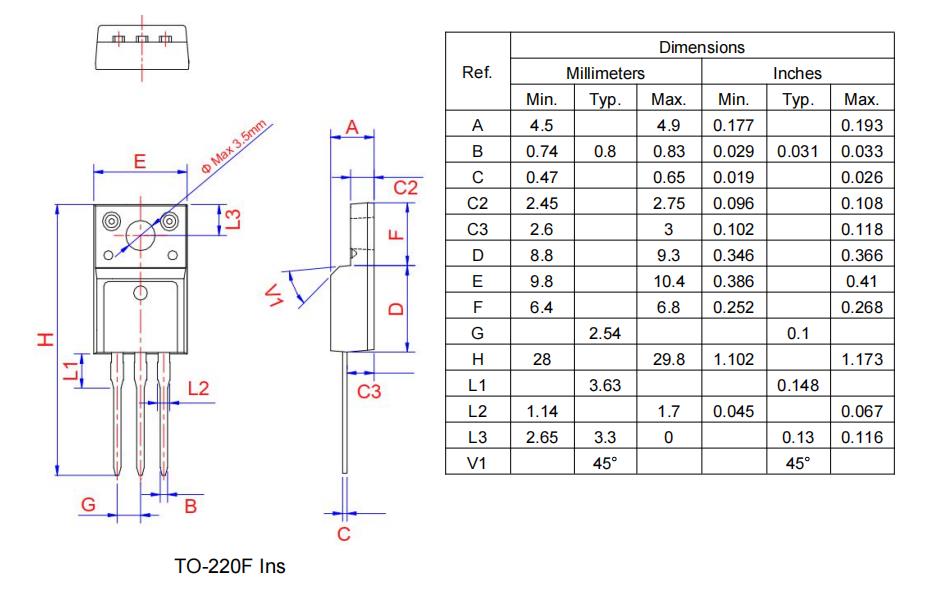

PACKAGE MECHANICAL DATA
