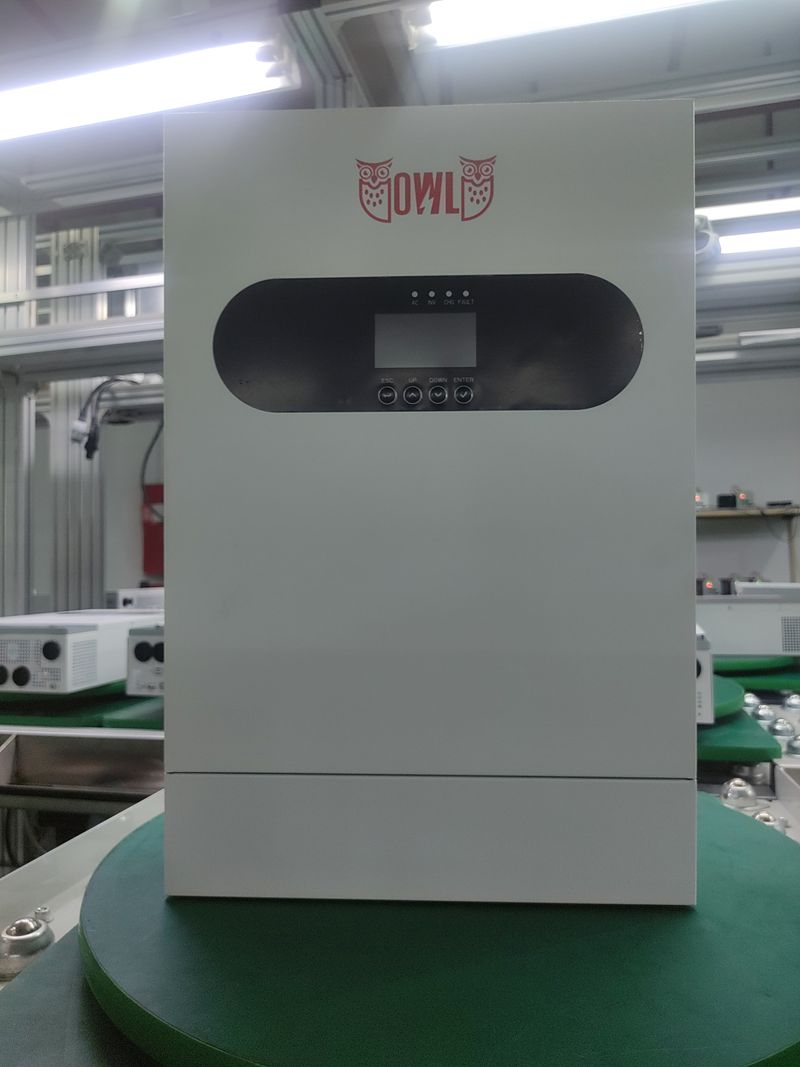

The UP series 5.5kW off-grid solar inverter has the following features and advantages in off-grid and backup applications:

1. High-Frequency Technology: Unitronic Power's inverters, like the UP Series, often utilize high-frequency technology, which can result in a more compact and lightweight design without compromising performance.

2. Advanced MPPT Algorithm: The built-in MPPT solar charger may feature an advanced algorithm that ensures maximum power extraction from the solar panels under varying sunlight conditions.

3. Multiple Charging Sources: The inverter can be charged not only by solar panels but also by an AC source, providing flexibility in charging options for off-grid applications.

4. Intuitive User Interface: The LCD/LED display likely offers an intuitive interface for monitoring system status and configuring settings, enhancing user experience.

Model	UP5148
Capacity	5500VA/5500W
AC Input
Rated Voltage	230Vac, L+N+PE
Selectable Voltage Range	90-280 VAC @Appllance mode;170-264 VAC @UPS mode
Frequency Range	40-70Hz
Solar Charger & AC Charger
Solar Cgarger Type
Maximum PV Array Power	5500W
MPPT Range @ Operating Voltage	120-430VDC
Maximum PV Input Current	18A
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Solar Charge Current	80A
Maximum AC Charge Current	80A
Maximum Charge Current	80A
Battery
Battery Nominal Voltage	48VDC
Float Charge Voltage	54VDC
Overcharge Protection	61VDC

The strengths of UnitronicPower UP Series Hybrid Solar Inverter:

1. Modular Design for Easy Maintenance: Unitronic Power inverters may have a modular design that simplifies maintenance and allows for easy replacement of components if needed.

2. Robust Communication Capabilities: With the RS232/USB port and the option for a Wi-Fi kit, the inverter can be integrated into smart home systems or monitored remotely, providing advanced control and diagnostics.

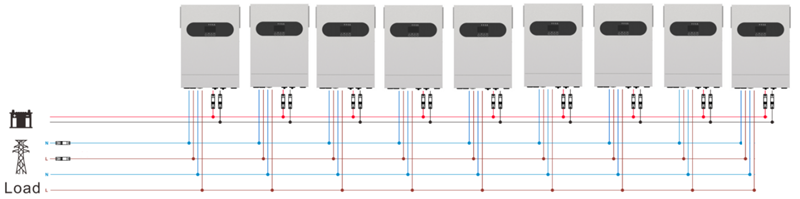

3. Parallel Operation for Scalability: The ability to parallel up to 9 units allows for scalable power solutions that can grow with the user's energy needs.

4. Battery Balancing for Optimal Performance: The battery balancing function helps to maintain the health of the battery bank, ensuring more efficient use of energy storage and prolonging the life of the batteries.

Output
AC Voltage Regulation @ Battery Mode	208/220/230/240VAC±5%
Output Frequency	50/60Hz@battery mode 50/60Hz ±6Hz@UPS mode; 40-70 Hz@appliance mode
Efficiency @ Battery Mode	91.5%
Transfer Time	10ms @ UPS mode; 20ms@appliance mode
Waveform	Pure sine wave
Communication
RS485/USB/Dry Contact Port	Yes, standard
Wifi Kit	Yes, optional
Parallel Kit	Yes, optional
Environment
Operation Temperature	-10°C to 50°C
Humidity	0 to 95% Relative Humidity (non-condensing)
Noise	≤50dB@1meter away
Altitude	Up to 1000m without derating
Physical
Dimensions(WDH)mm	315105470
Weight (kg)	13
