B Series Long Range Sensor LiDAR 20Hz_BB2D_BA9D

100m Laser Measurement Transducer 100Hz

We have three sizes of laser measurement transducers, the Big size 72x40x18mm, the middle size 45x25x12mm, the samllest size 41x17x7mm, with accuracy +-1mm. supporting single and continuous measure mode. JRT Prefessional Laser Module is designed of the world`s leading technology - single transmit and single receive. JRT modules responds quickly, with measuring distances up to 150 meters. It can not only be connected to USB, RS232, RS485 , but also can be applied to Arduino, Raspberry Pi, UDOO, etc. We are devoted ourselves to make great laser distance modules which can be used in various industries like military project, aerospace, automotive electronic network, communication security device, and medical equipment, etc. Supporting USB connected to the laser measurement sensor is much more convenient for customers to test functions from computer.

Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors more than 10 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

Product Parameters:

Model: PTFS-100Hz
Measuring Range: 3-100m at 20% reflectivity
Frequency: 100Hz
Accuracy: +/-1m
Blind Area: 3m
Resolution: 0.1m
light: 905nm LD
Working voltage: 3.3V
Working Current: 100mA
Power: 330mW
Working temperature: -10~50
Communication interface: TTL 3.3V
Serial level: TTL 3.3V

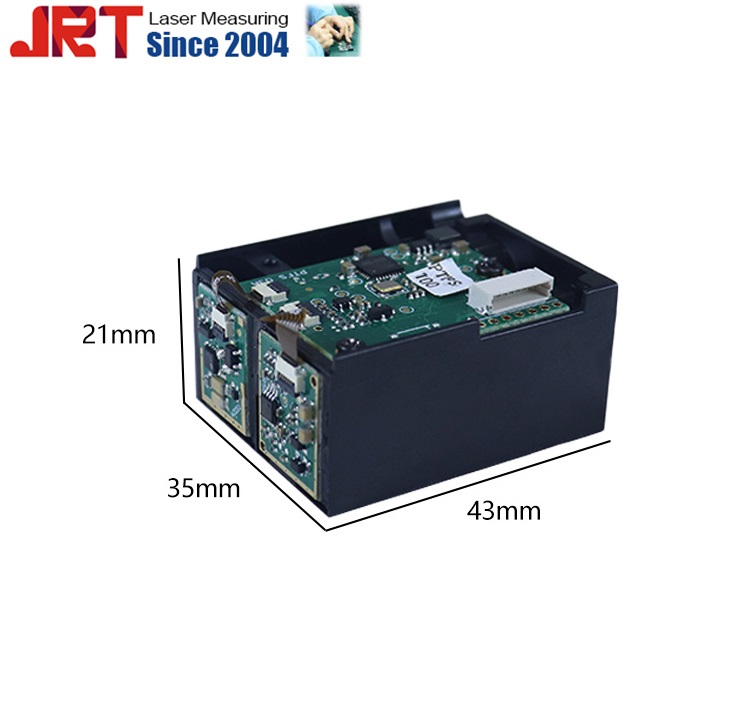

Volume: 43*35*21mm
Weight 30g

Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize

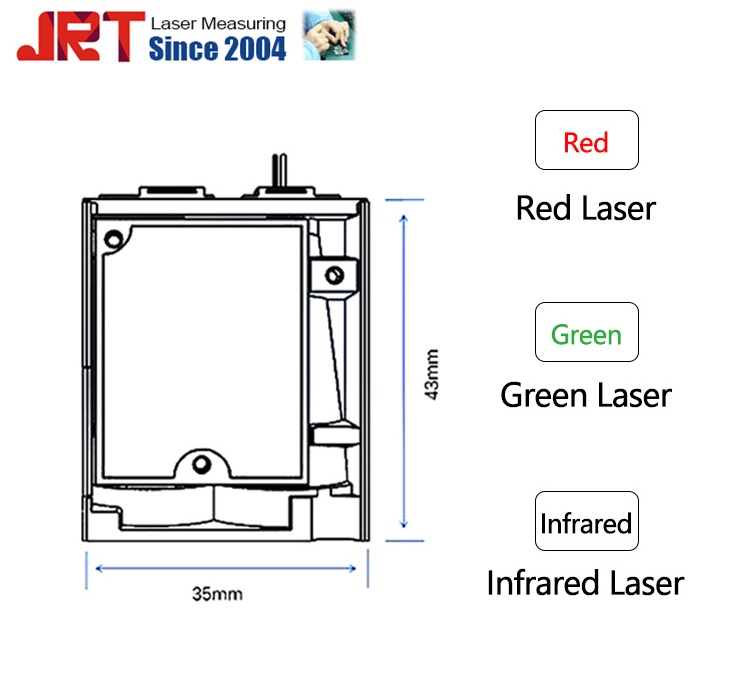

Machinical Dimensions

Applications

Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.

We have three sizes of module, the Big size 72x40x18mm,the middle size 45x25x12mm ,the samllest size 41x17x7mm, with accuracy +-1mm. supporting single and continuous measure mode. JRT laser distance module is designed of the world`s leading technology - single transmit and single receive.

Prefessional Laser Module For Industrial Application

Our modules responds quickly, with high accuracy of +-1mm and measuring distances up to 150 meters. It can not only be connected to USB, RS232, RS485 , but also can be applied to Arduino, Raspberry Pi, UDOO, etc.
