Slim Battery 12V105Ah Caravan RV Marine Battery
Product Detail Reference
|
Item
|
Specification
|
Unit
|
Remark
|
|
|
Pack Info.
|
Model
|
LFP-12105C
|
|
|
|
Type
|
Prismatic
|
|
|
|
|
Material
|
LiFePO4
|
|
|
|
|
Cell Spec.
|
Battery Cell Model
|
IFP27175200A-105Ah
|
|
|
|
Battery Cell Spec.
|
3.2V105Ah
|
|
|
|
|
Pack Spec |
Assemble Style
|
4S1P
|
|
|
|
Nominal Voltage
|
12.8
|
V
|
|
|
|
Nominal Capacity
|
105
|
Ah
|
@25℃
|
|
|
Energy
|
1.344
|
kWh
|
|
|
|
Energy Density
|
134
|
Wh/kg
|
|
|
|
Charge Voltage
|
14.4
|
V
|
Voltage Range10~14.4V
|
|
|
Discharge End Voltage
|
10
|
V
|
||
|
Standard Charge Current
|
21
|
A
|
0.2C
|
|
|
Max Continuous Charge Current
|
52.5
|
A
|
0.5C
|
|
|
Standard Discharge Current
|
52.5
|
A
|
0.5C
|
|
|
Max Continuous Discharge Current
|
105
|
A
|
1C
|
|
|
Charge Temp. Range
|
0~45
|
℃
|
|
|
|
Discharge Temp. Range
|
-20~60
|
℃
|
|
|
|
Storage Temp. Range
|
10~30
|
℃
|
|
|
|
Dimension
|
550*257*65
|
mm
|
|
|
|
Weight
|
13
|
Kg
|
|
|
|
Cycle life
|
3000
|
Cycles
|
@1C/1C 25℃
|
|
|
BMS
|
The BMS default specification is below, if your load working current over the specification, please contact us. Need to be
custom-made. |
|||
|
The Max continuous cuurrent
|
150
|
A
|
|
|

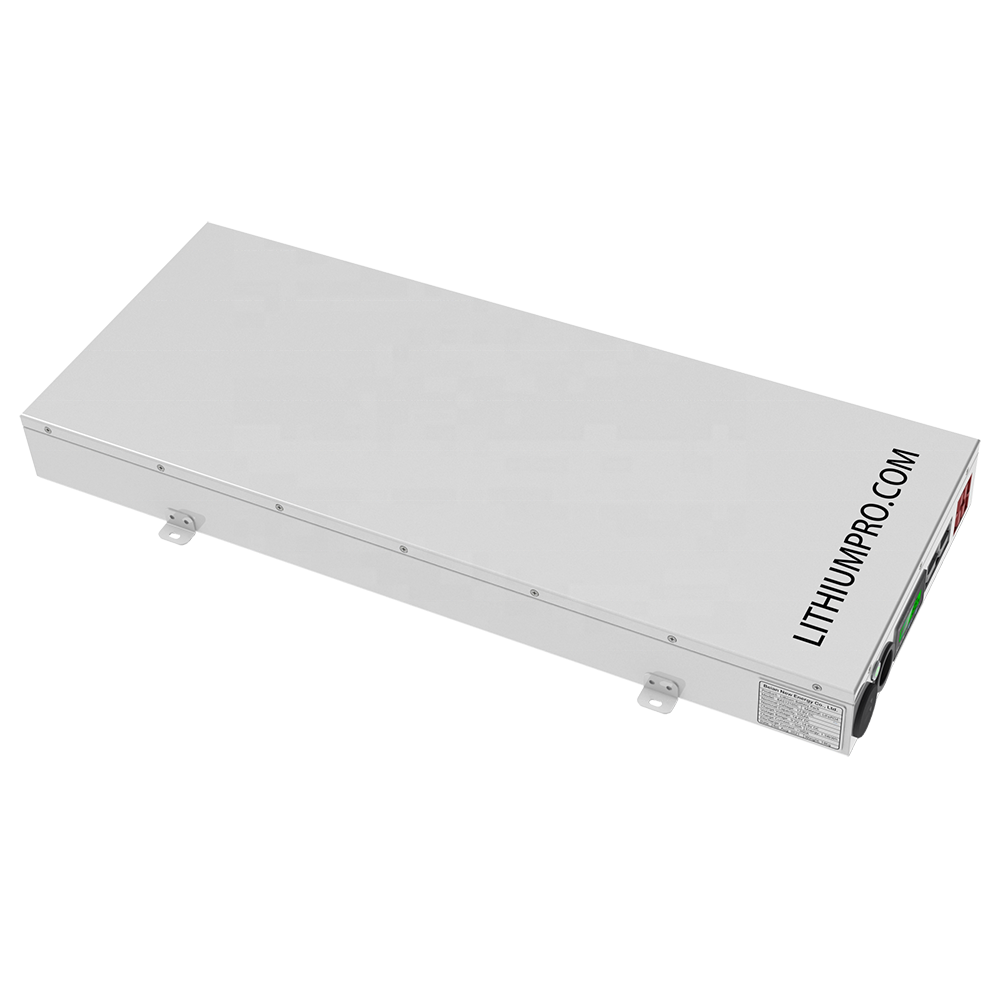

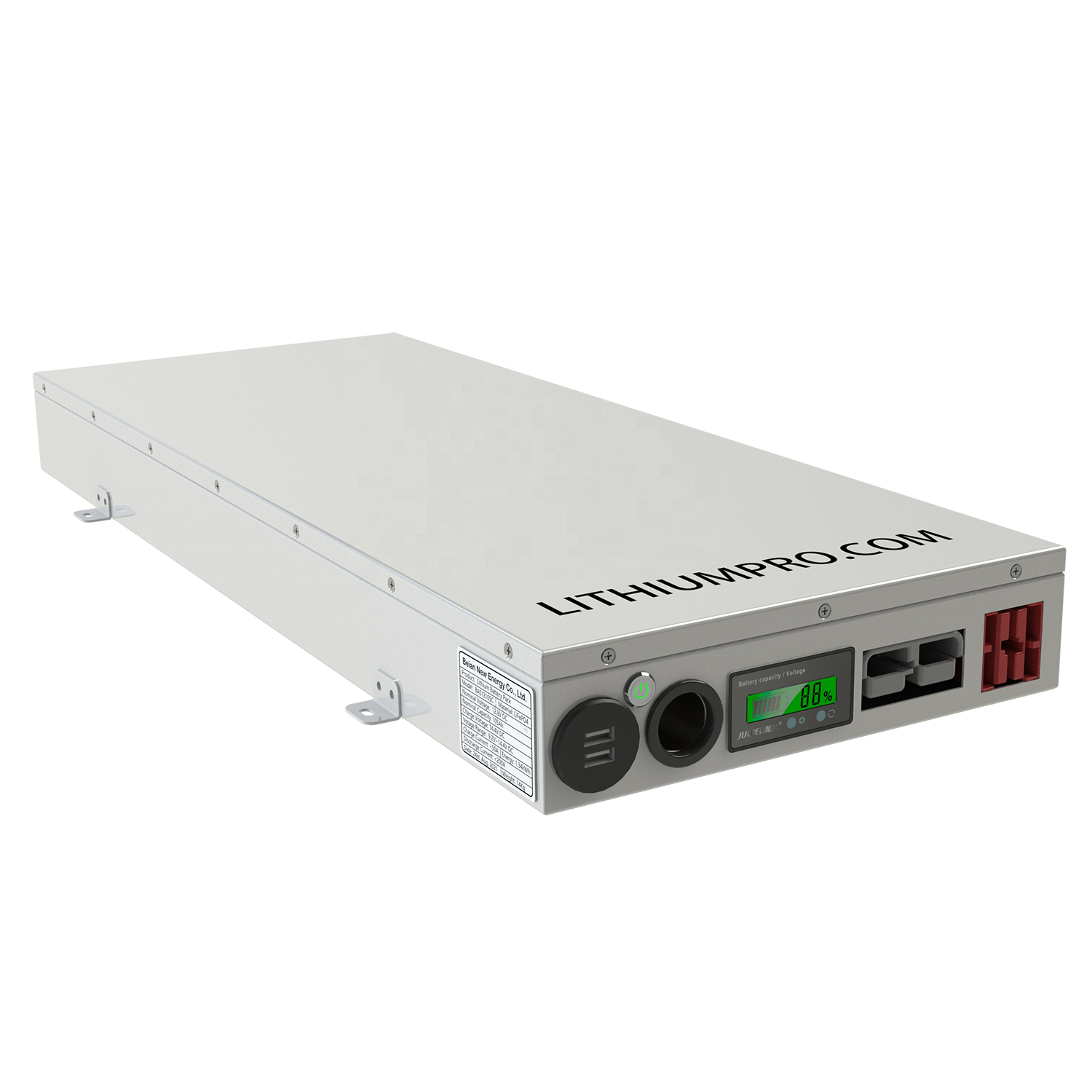

Product Picture
