Product details

Big Roll Adhesive Tape Slitting Machine

Non-stop automatic winding can produce 2000M of adhesive tape.

The machine can produce a maximum of 4000M of adhesive tape.

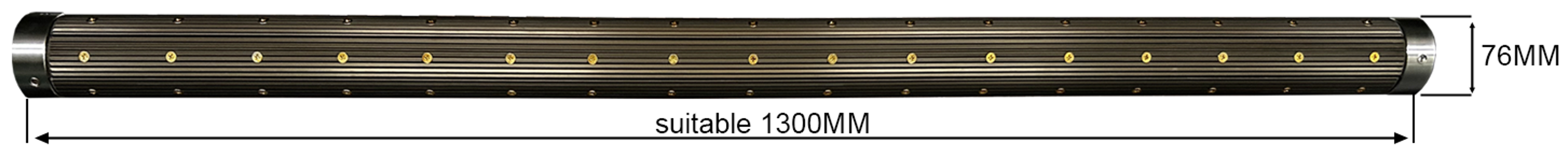

Rewinding shaft

Equipped with 4 tile type air expansion shafts, which is stronger in the load and easy to cut the large roll of tape.

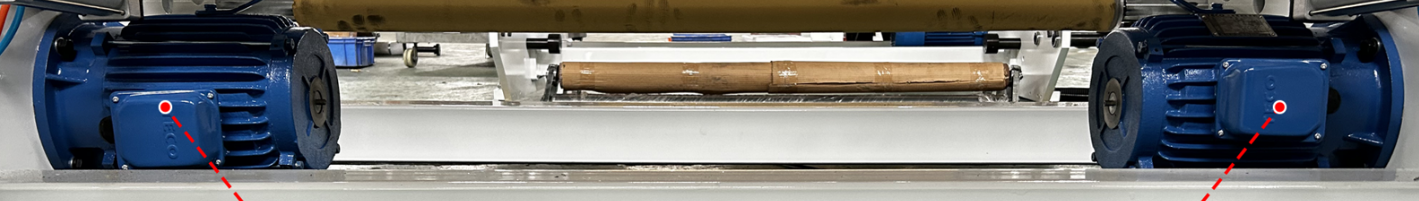

Double motor

This machine adopts dual motors and a clutch to achieve automatic tension control of large rolls of tape.

Machine Parameter

Specification	Measurement LWH	N.W.	Air Pressure	Source	Power
1300MM	270017001600MM	2000KG	0.63mpa	4W 3P 380V/50HZ	4kw

Max Slitting Speed	Min Slitting Width	Biggest Rewinding Diameter	Biggest Unrewinding Diameter
200M/MIn	12MM	550MM	700MM

Note：The above parameters are for the 1300MM machine. It can be customized to 1650MM and other specifications depending on the size of the master roll.

Application

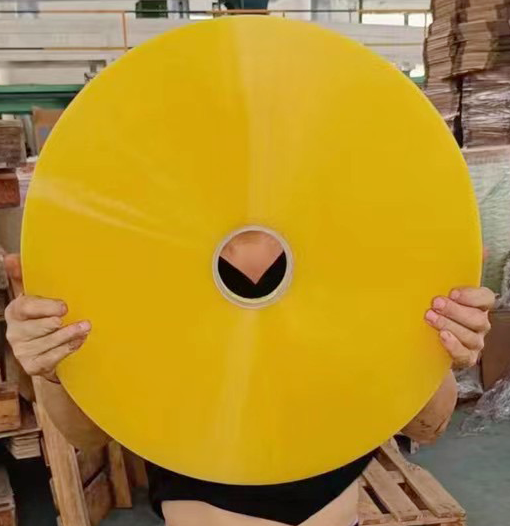

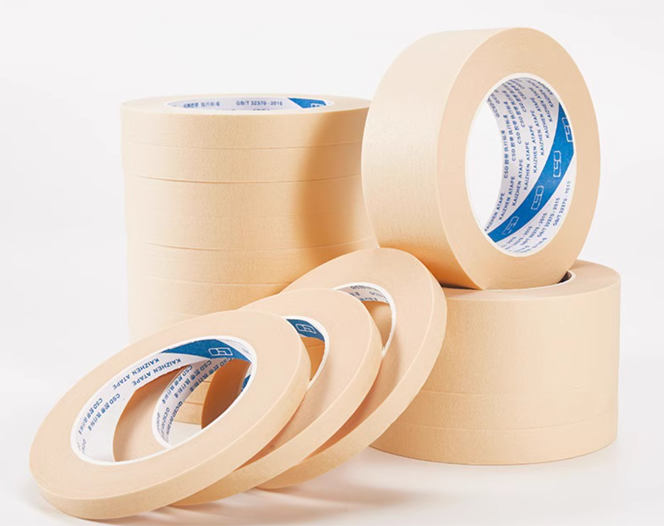

The machine is mainly suitable for slitting the material such as, big roll masking tape, big roll BOPP adhesive packing tape and all kinds of printing packing tape.
