High Temperature Glass Ink For Micro Crystalline Plate

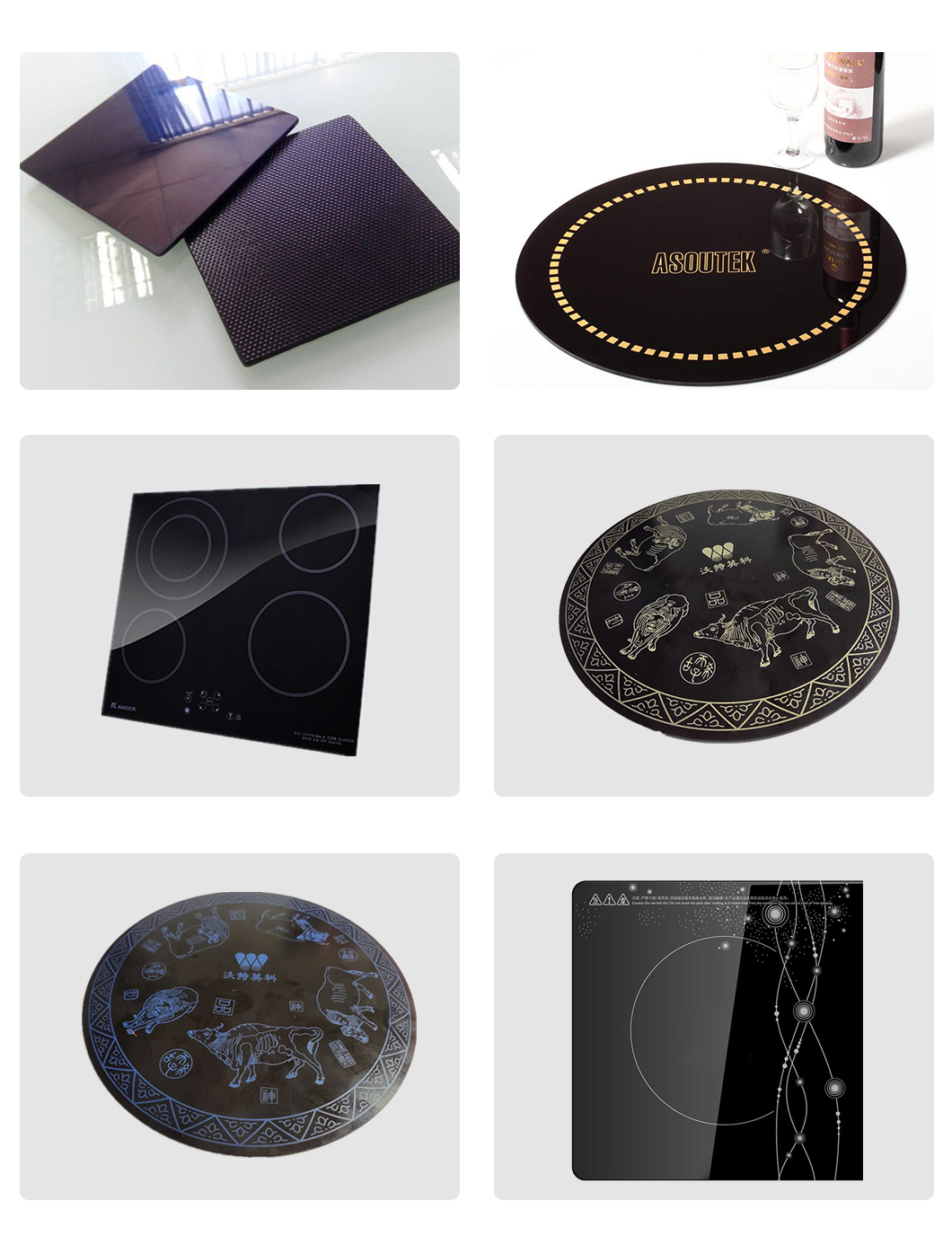

Ink for Heat Resistant Tempered Glass is specially designed for glass-ceramics at high temperature. With a unique ceramic formula, it can withstand the sintering temperature ≥1000℃ (aerospace glass-ceramics standard), and is widely used in induction cooker panels, fireproof building glass and aerospace thermal equipment.

Core performance and technical advantages

Extreme heat resistance:

Glass-ceramics with thermal expansion coefficient matching (-4 ~ 10× 10/℃) have no crack after rapid cooling and rapid heating cycle at 600℃ (ΔT≥600℃), and the adhesion reaches ISO 2409 Class 0.

After high temperature sintering, the hardness is more than or equal to 770 kg/mm (Mohs 6.5), which can resist acid and alkali corrosion and mechanical wear, and the service life is over 10 years.

Environmental protection and safety certification:

Waterborne/solvent version is optional, VOC content is less than 5g/L (EU REACH/FDA standard), and heavy metals have not been detected, which meets the safety requirements of food contact and fireproof building materials.

Equipment coordination and cost optimization

Precision printing system:

Suitable for 300-420 mesh Screen Printing Mesh, tension stability > 40 N/cm, supporting 0.15mm fine texture printing;

The unit price of Screen Printing Ink Price 30% lower than that of imported products. Batch purchasing supports customized color matching (red/yellow/blue/white, etc.), and the comprehensive cost is ≤ 180/kg.

Efficient curing of ecological chain:

The Drying Tunnel For Glass adopts three-stage infrared+hot air circulation (gradient temperature rise from 80℃ to 300℃), and the curing is completed in 10 minutes, reducing energy consumption by 40%;

The temperature control accuracy is 2℃, which avoids the thermal stress cracking of microcrystalline plate, and the yield is increased to 99%.

Application Scenarios and Synergy Value
