4 AF-RV Mining Flotation Vertical Froth Pump

Froth Slurry Pump Wear/ Erosion Resistant Material

4 AF - RV Froth slurry pump various requirement for materials in the market, Naipu offering wet end part material as following. Metal A05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, R55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.

AF Vertical Froth Pumps, China AF Vertical Froth Pumps, Vertical Froth Pump, AF Vertical Froth Pumps Manufacturer, froth pump, vertical pump, vertical froth pump, slurry pump,centrifugal pump, AF Vertical Froth Pump, Vertical Froth slurry pump, AF Vertical Froth slurry Pump, centrifugal froth pump, slurry pumps, centrifugal slurry pumps, China NP-AF Vertical Froth Pumps, Vertical Froth Pump manufacturers, our AF Vertical Froth Pumps are good in quality and competitive in price.

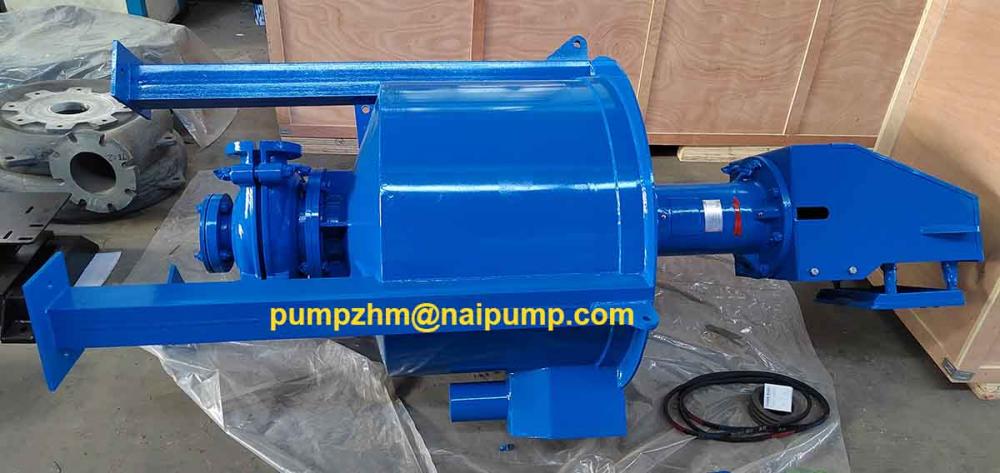

4 inches Vetical Froth Slurry Pump

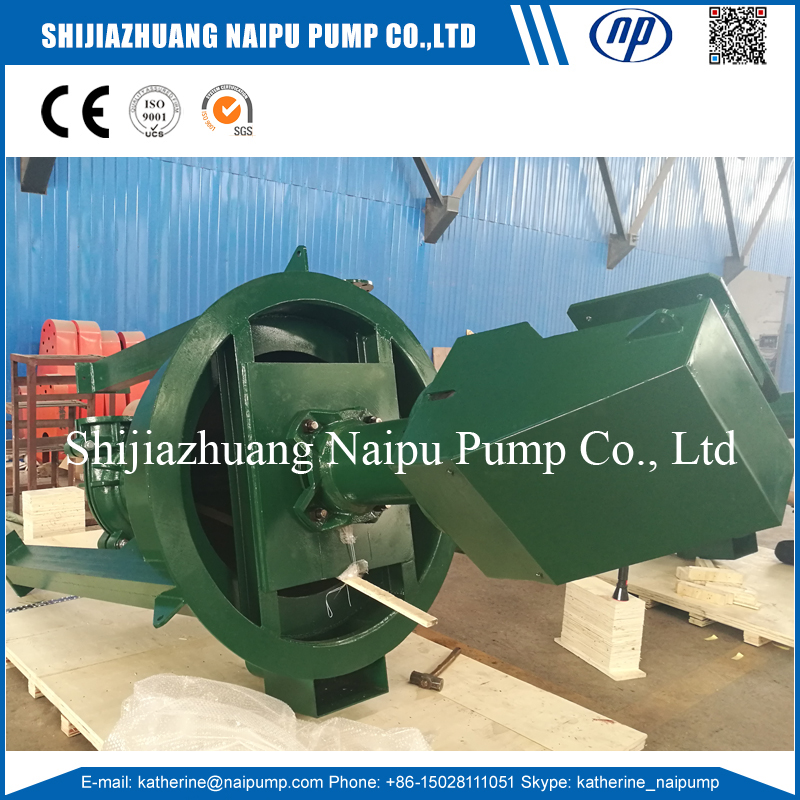

Vertical Froth Pump are heavy duty construction. 4 AF - RV Froth slurry pump designed for continuous pumping of highly abrasive and corrosive frothy slurries.

The Type `AF` Froth Pump is designed to effectively handle frothy slurries by de-aerating the froth, by an induced vortex effect, before it enters the pump impeller.

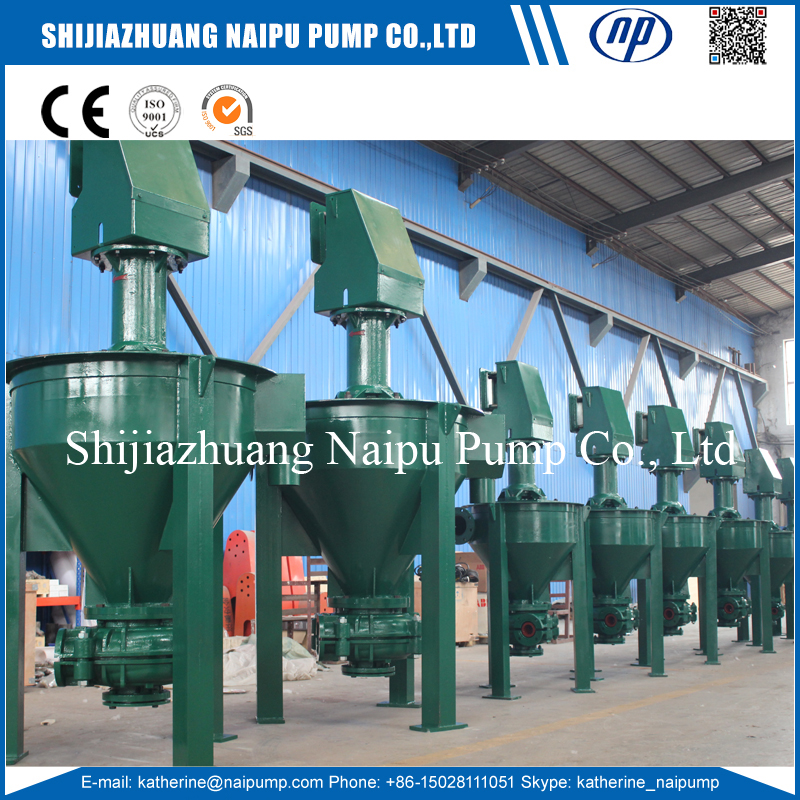

froth pumps

NP-AF Vertical Froth Pumps Performance Parameters

Type	Allowable Mating Max. Power(Kw)	Clear Water Performance				Impeller
Type	Allowable Mating Max. Power(Kw)	Capacity/Q m³/hr	Head/m	Speed/rpm	Max Efficiency/%	Diameter/mm
2AF-QV	15	7.2-33	5--30	800-1800	45%	229
3AF-QV	20	10-104	10--28	700-1500	55%	268
4AF-RV	40	15-130	6--28	500-1050	55%	397
6AF-SV	75	55-330	6--25	350-680	55%	560

AF Slurry Pump PartS

Frothy Slurries Pumps Main Part Number at the Drawing

1.Bearing 2.Bearing Assembly 3.Tank	4.Frame Plate 5.Cover Plate

1.Bearing
2.Bearing Assembly
3.Tank

4.Frame Plate
5.Cover Plate

Froth Pump Part Code No.: E4032G01, E4013G01, DAF4041A05, DAF4127A05, DAF4190A05, RVAF019, RVAF133-3, RVAF073, RV262...

Naipu Pump Service

1. OEM service: Produce the pump and spare parts according to client's drawing or sample.

2. Selection service: Help customers select the type, size and operating speed of pumps that will perform at the lowest cost.

3. Using service: Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service.

4. Material service: Interchangeable metal design allow best material choice for any application.

5. After-sale service: Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts.

slurry pump spare parts
