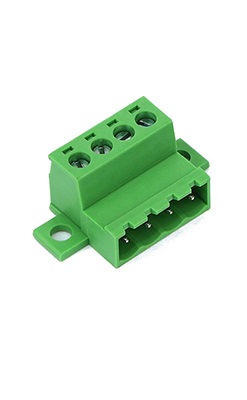

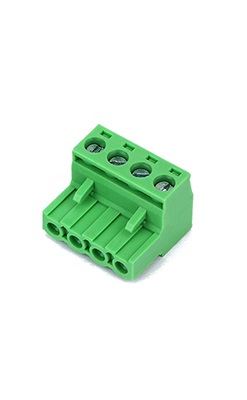

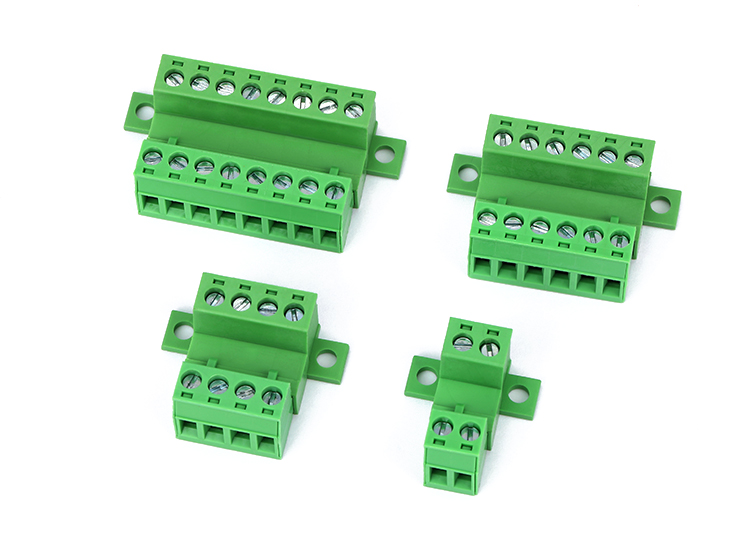

AWG 24 to 12 cable Screw type panel mounted pluggable male and female terminal block1
2 year ago
About this item
Pitch: 5.08mm; Rated Value: 10A 300V ; Wire Range: 12-24AWG
Withstanding Voltage: AC1600V/1Min; Screw:M2.5/Torque: 0.4 Nm (4.5lb-In)
Stripping length: 7-8mm; Temperature range: - 40 ° C ~ + 105 ° C
XINKE terminal blocks are made from high quality plastic PA66 with high temperature resistant and V0 flame retardant. PCB din rail adapter. Easy to install and detach. Just loosen the screws, insert the stripped cable and tighten the screws.
XINKE screw terminals can be used for Arduino wire connection. Widely applied in most electronics, communication equipment, instruments, computers, automatic control system, household appliance and warning devices, IC Socket, DIY PCB Universal Board, Power Modules and LCD Modules.
Manufacturer's model:
|
Product Model
|
XK2EDGRKC+K-5.08MM
|
Insulation Material
|
PA66
|
|
Rated Voltage
|
300V
|
Imflammability
|
UL94V-0
|
|
Rated Current
|
10A
|

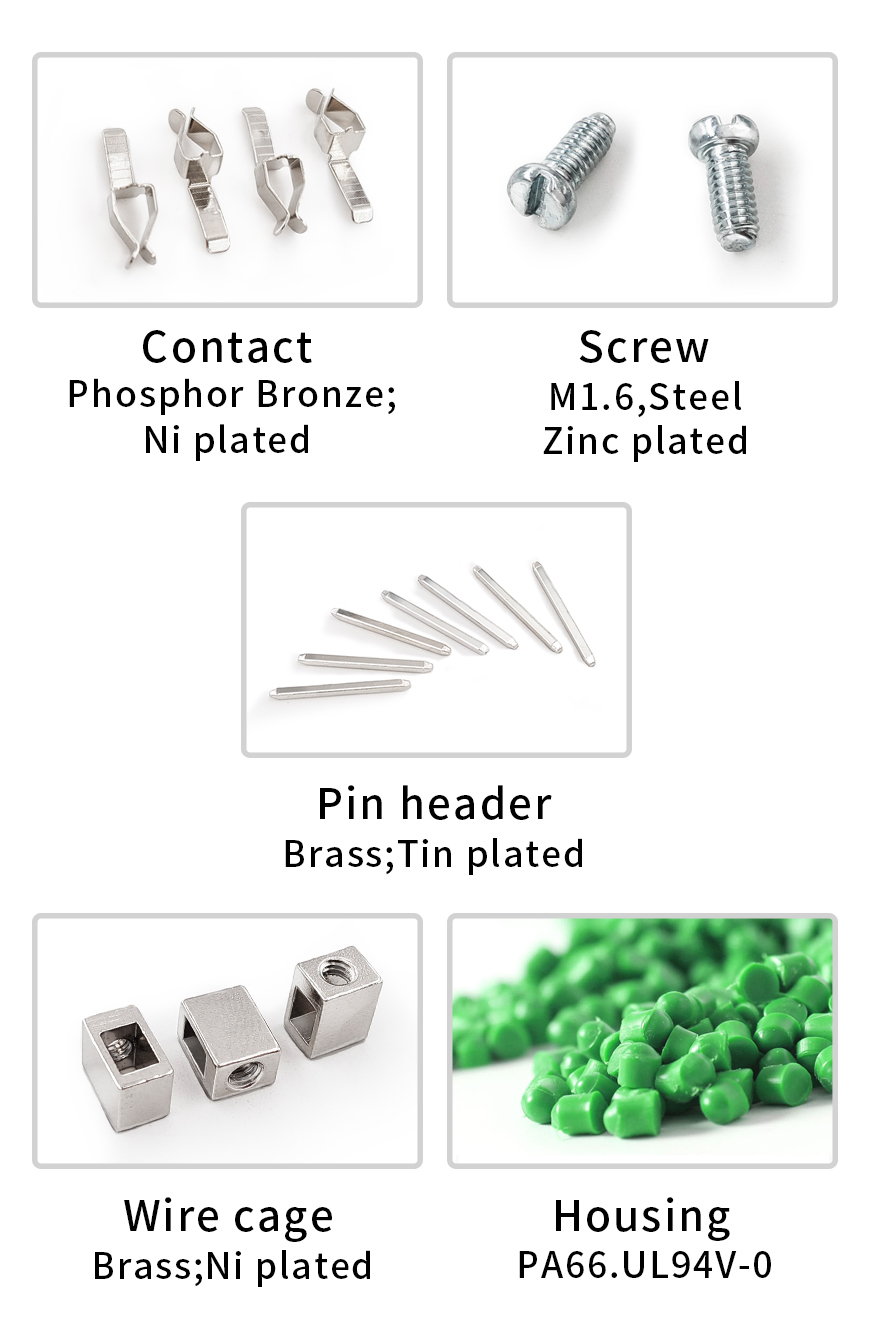

Contactor Material
|
Copper alloy
|
|
Wire Range （Solid/Stranded）
|
24-12 AWG
|
Contactive Coating
|
Ni plated
|
|
Witgstanding Voltage
|
1600V/1Min
|

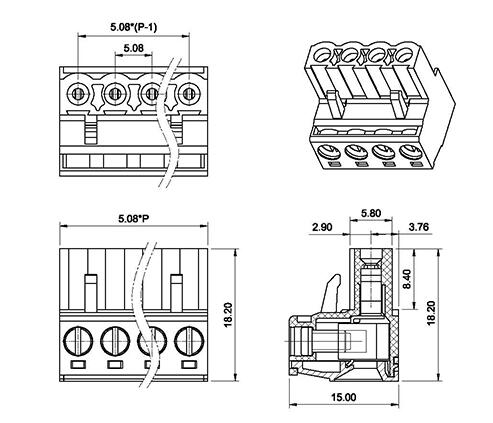

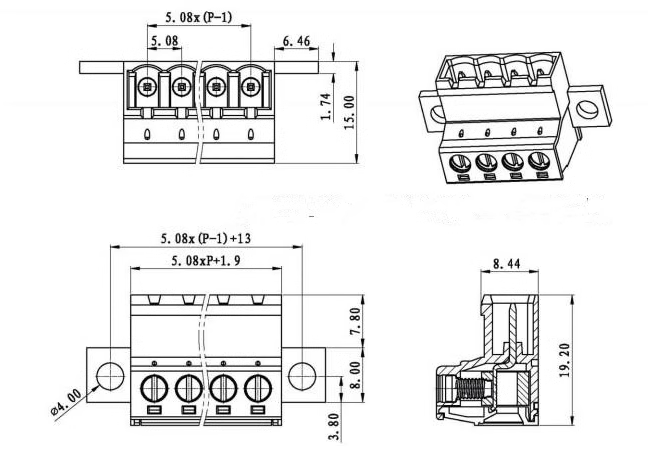

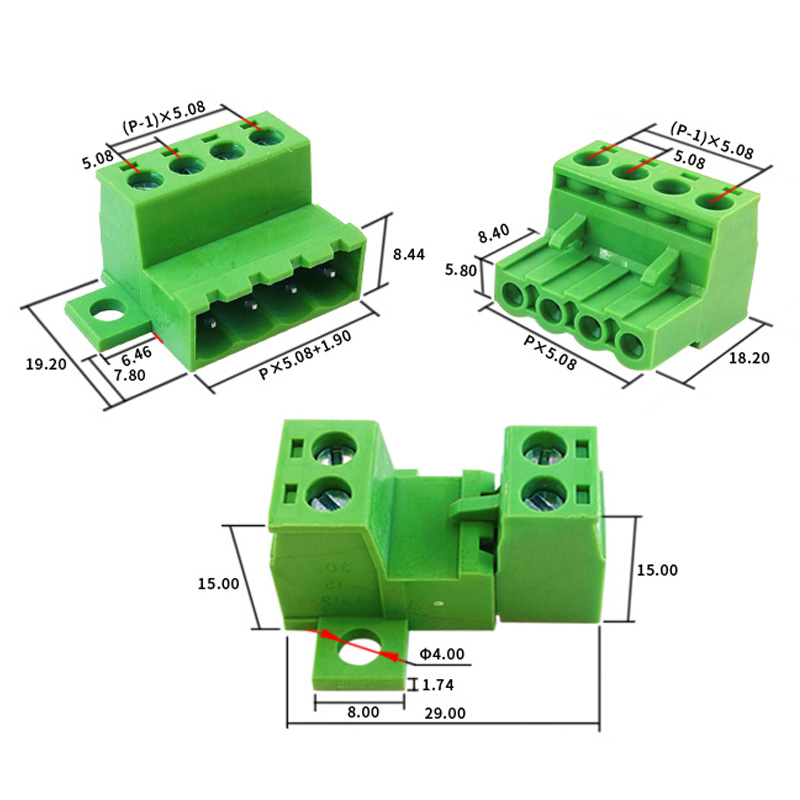

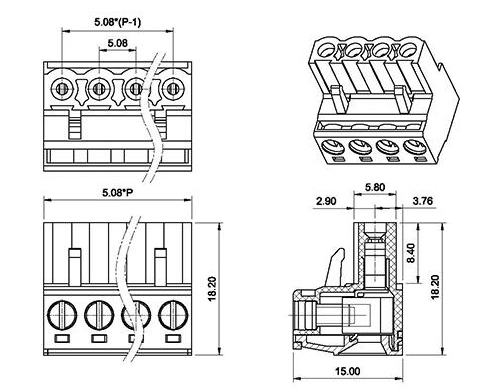

Pitch
|
5.08mm
|
|
Conductor cross section （Solid/flexible）
|
2.5 mm²
|

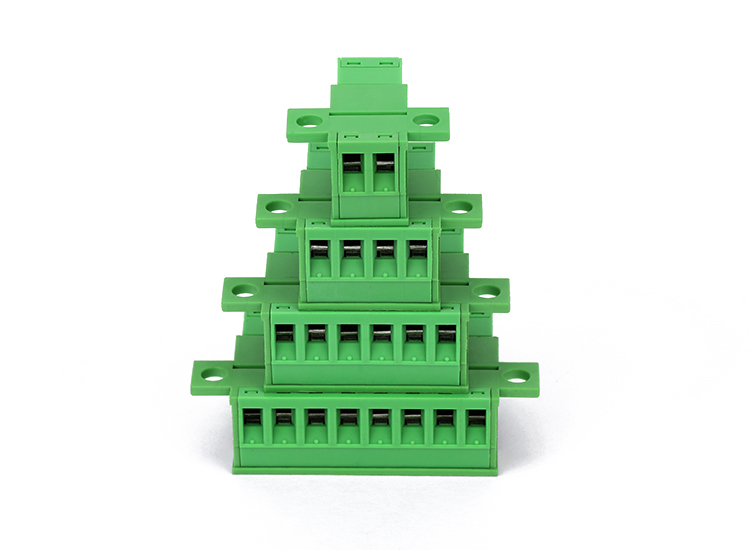

Poles
|
2-24P
|
|
Stripping Length
|
7-8mm
|
Operating temperature
|
-40~+105 ℃
|
|
Impulse withstand voltage
|
4.0KV
|
Screw/Torque(Max)
|
M2.5/0.4N.M
|
Product performance description
Product usage introduction

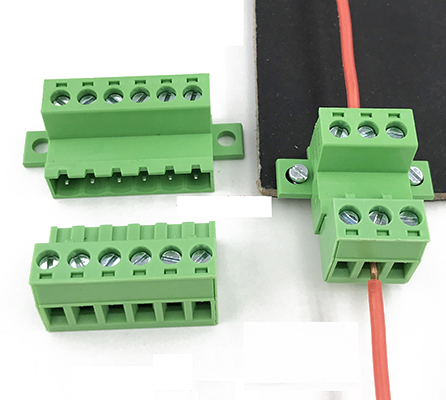

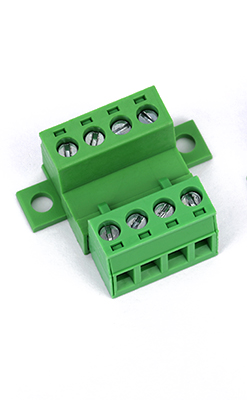

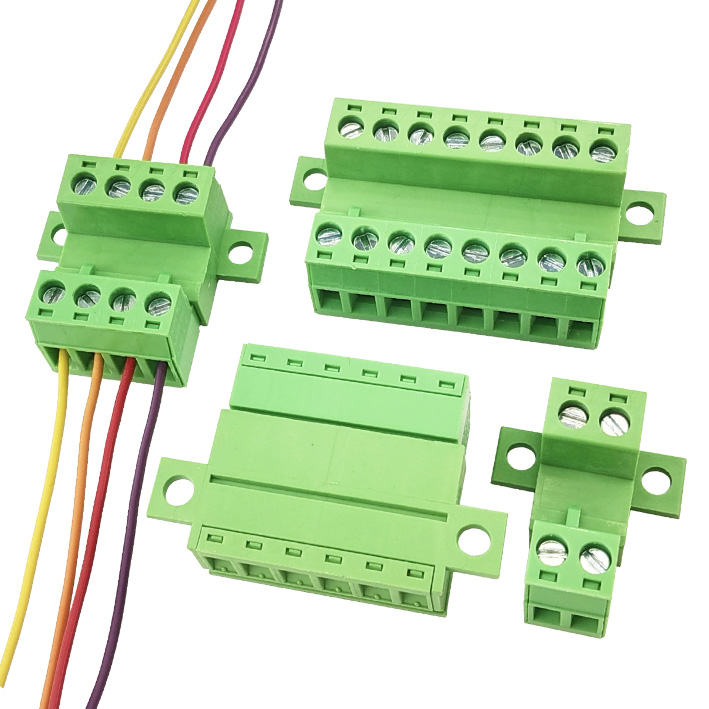

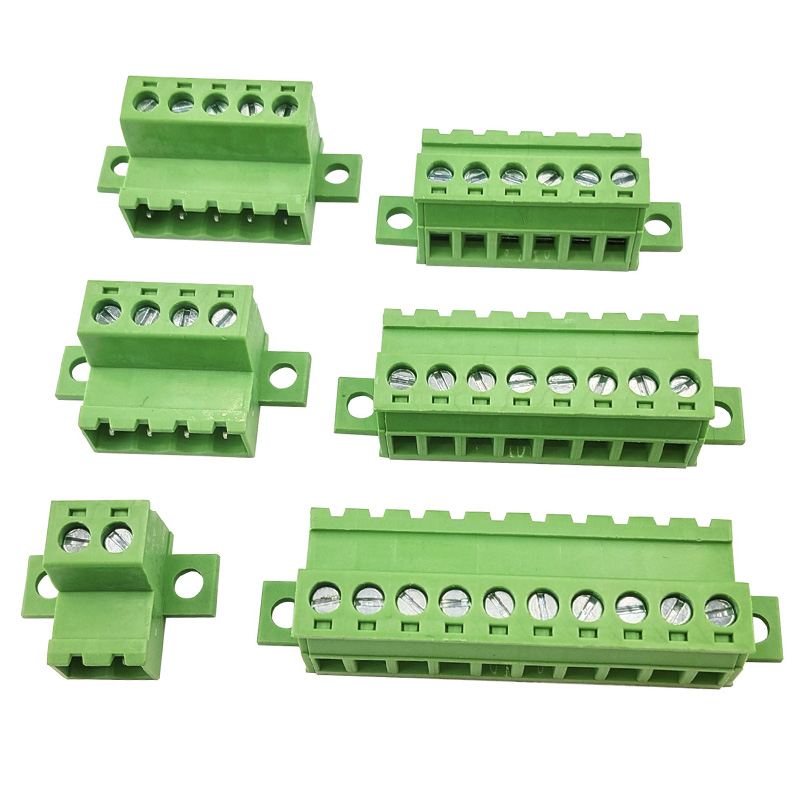

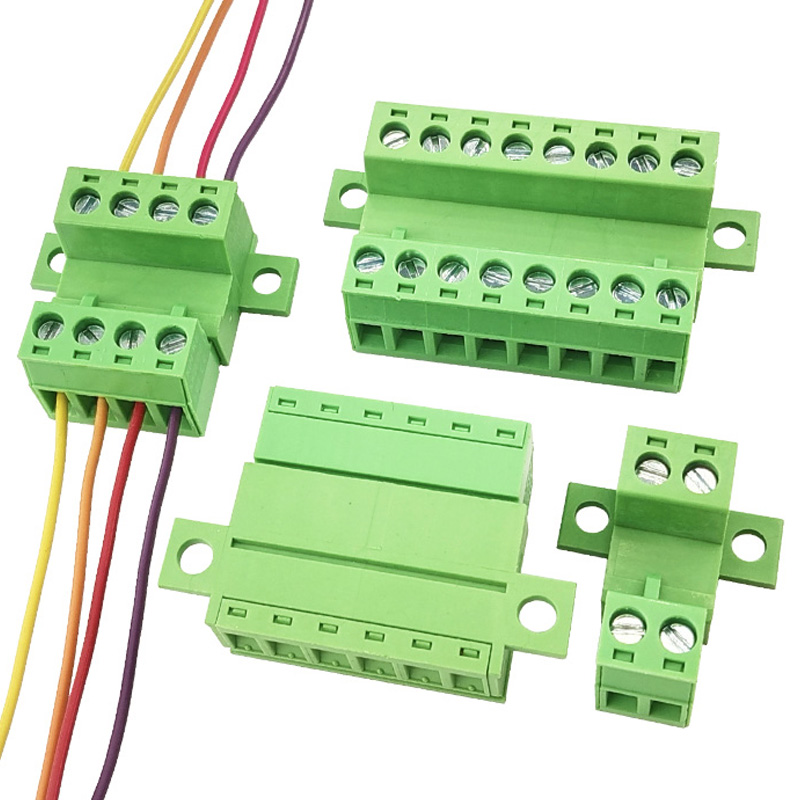

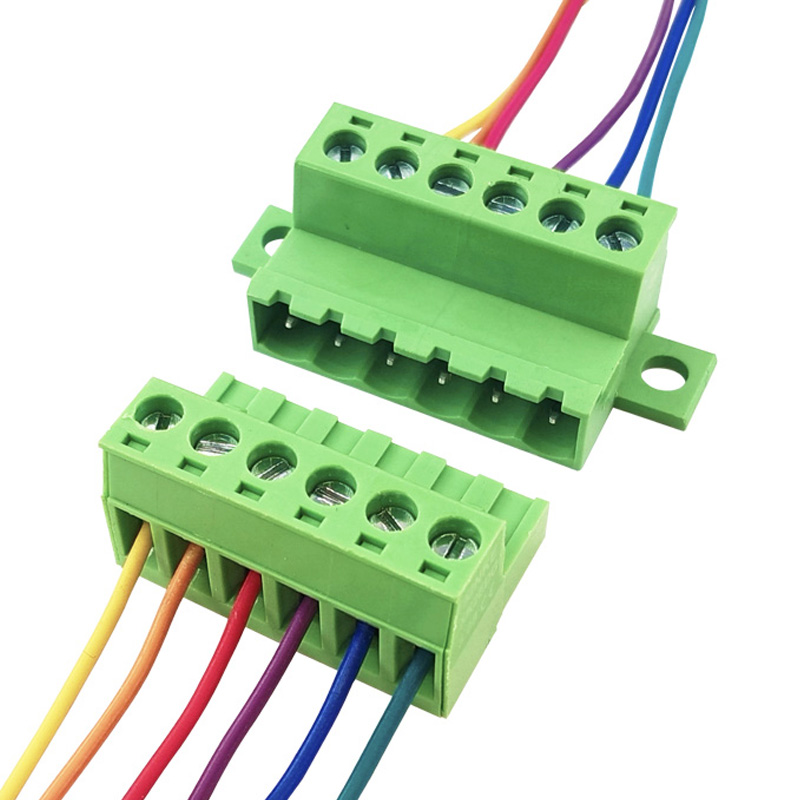

male and female plug-in，screw type cable connection，male part can be fixed on the panel with screws.
Description of product use effect
male and female plug-in，screw type cable connection，male part can be fixed on the panel with screws.
Company Introduction
ABOUT US
production workshop
The injection molding machine softens the PA66 at high temperature and injection molding.
Automatic assembly workshop
Put the shell, screws, pins and other semi-finished products into the assembly machine to automatically complete the assembly.
our team
Professional technical and sales team, all-round service to customers.To the greatest extent to meet the various needs of customers.
storehouse
Adequate inventory and complete specifications ensure timely and stable supply and shipment.
Automatic detection workshop
Participate in the exhibition
We actively participate in domestic and foreign exhibitions and look forward to in-depth cooperation with you.
Customer Photos
XINKE has 8 years terminal block experience,100%QC inspection before shipment,expert manufacturing facilities,small MOQ,enough stock.can do OEM and ODM!
What we offer: 1) Good quality control 2) Highly competitive prices 3) state-of-art technology products 4) Best professional team of lifestyle consumer electronics. 5)
FAQ
A) How could I get a sample? Before we received the first order, please afford the sample cost and express fee.
