Hot Dipped Dx51d Z275 Galvanized Steel Coil
2 year ago
Product Description
Galvalume steel coil is a material produced by continuous hot-dip galvalume process with hot-rolled steel strip or cold-rolled steel strip as the substrate. Hot Dip Galvalume coil supplied in coil form after coiling. Therefore, galvalume steel sheet (coil) can be divided into hot-rolled galvalume sheet coil and cold-rolled hot-dip galvalume sheet coil. They are mainly used in the fields of construction, household appliances, automobiles, containers, transportation and household industry. Especially in steel structure construction, automobile manufacturing, steel warehouse manufacturing and other industries. Their main characteristics are: strong corrosion resistance, good surface quality, benefit from deep processing, economy and practicality, etc.
Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel, aluminized zinc steel (aluzinc steel), SGLC. The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy.From the point of view of the degree of coating, the galvanized steel coil is mainly the zinc plated on the coating, while the coating of the galvalume steel coil not only has zinc, but also has an extra part of aluminum.Galvalume steel sheet (coil) has better atmospheric corrosion resistance.
Shandong Huitong Steel Co., Ltd. is a company with more than 10 years of experience. We are located in Liaocheng, one of the largest steel producing areas in China. We have our own production plant. We also deal in prepainted steel coil, corrugated roofing sheet and carbon steel coil, etc. Welcome to purchase.
Product Specification
|
Product |
Galvalume Steel Coil |
|
Standard |
ASTM, BS, EN, DIN, GB, JIS, ASME, etc. |
|
Grade |
DC51D+AZ, DC52D+AZ, DC54D+AZ, DC53D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S450GD+AZ, S550GD+AZ
|
|
Thickness |
0.12~3.00 mm (cold rolled)，1.20~4.60 mm (hot-rolled) |
|
Width |
600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm |
|
Tolerance |
Thickness: ±0.01 mm |
|
Width: ±2 mm |
|
|
Coil ID |
508 mm - 610 mm |
|
Coil weight |
3 Tons - 8 Tons or as client requirement |
|
Zinc coating |
30g/m² - 275g/m² |
|
Spangle |
Big spangle,Regular spangle,Mini spangle,Zero spangle |
|
Surface treatment |
Oil,Passivation, Chromated, Skin-passed, Anti-finger Print |
|
Loading Port |
Tianjin Port, Qingdao Port, Shanghai Port |
|
Payment Term |
L/C or T/T(30% deposit) |
|
Delivery time |
Within 15 workdays after deposit received |
|
Package |
plastic film + water proof paper + steel plate + packing steel strip |
|
Application |
Widely used in road, railway, civil construction, water conservancy construction; all kinds of machinery, electrical appliances, window protection and aquaculture, etc. |
Mechanical properties of galvanized steel
| Usage | Grade | Yield strength(Mpa) | Tensile strength(Mpa) |
|
Galvalume Steel |
DC51D+AZ | - |
270-500 |
|
DC52D+AZ |
140-300 |
270-420 |
|
|
DC54D+AZ |
140-260 | 270-380 | |
|
Galvalume Steel |
S250GD+AZ |
≥280 |
≥360 |
|
S300GD+AZ |
≥350 |
≥420 |
|
|
S550GD+AZ |
≥550 |
≥560 |
Product Display

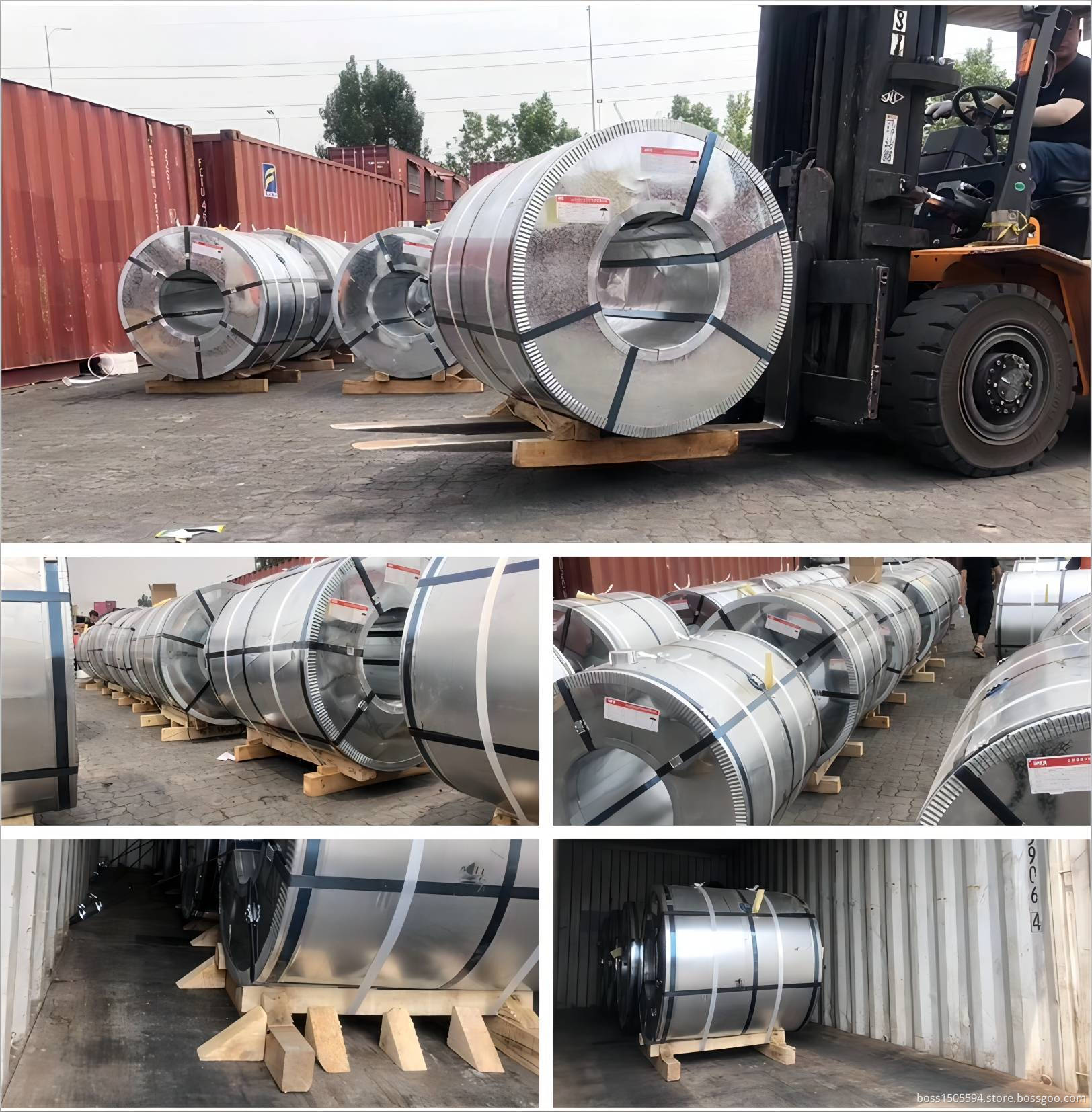

Packaging And Transportation
We offer different modes of transport depending on the customer's destination: rail transport and ship transport，etc.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards, Specifications, Package No., Contract No., Heat No., Weight of zinc film, Color, Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
