0.5L pressure flip mixer
2 year ago
Used for rubber molding and mixing. Mixing of chemical industrial raw materials: Mixing of various cable materials, color masterbatches, EVA, PVC, carbon black, low smoke and no barrier materials, TPR, cable heat shrink tubes, high calcium filling engineering materials, and other chemical raw materials.
1、 Zhenggong has a complete system of high-quality and highly skilled leadership management, business sales, design and research and development professional team, production and manufacturing, measurement and inspection, and after-sales service.
2、 A team of over 120 business backbone and engineering and technical talents
3、 The company has passed ISO9001 quality management system certification and CE certification, and has successively won honors such as AAAAA level enterprise, contract abiding and trustworthy unit, top ten tax paying enterprise, famous Chinese brand, high-tech enterprise, etc. Dozens of utility models and invention patents. Combining a senior business lineup and a strong technical team.
4、 The company has become the trust of domestic and foreign customers with advanced technology, strong processing strength, and customer-oriented and appropriate services.
5、 The company's products not only have a high market share in the domestic market, but also in universities, colleges, laboratories and research institutes in all parts of the country, provinces, cities and towns in Chinese Mainland, Guangdong, Jiangxi, Jiangsu, Zhejiang, Shandong, Hunan, Hubei, Henan, Hebei, Sichuan, Beijing, Shanghai, Tianjin, Liaoning, Xinjiang, Taiwan, Mexico, Malaysia, Indonesia, Southeast Asia, the Middle East and other parts of the world, Our first-class products and professional manufacturing techniques have been highly praised by the vast number of new and old customers who have used our products.

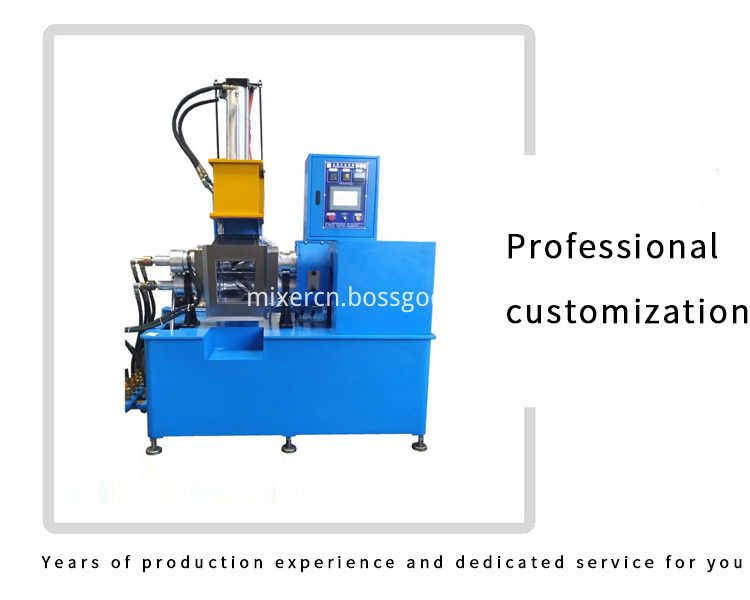

G-5L small electric water cooled mixer for laboratory use
1. Volume of mixing chamber: 5L
2. Main motor: Adopting AC motor with a power of 11 kW
3. Reducer: The base and frame are made of low-carbon steel structure, with a forced lubrication circulation system;
4. Rotor: Double edged, synchronous rotor structure (also designed and manufactured according to the rotor structure diagram provided by the user), with a speed ratio of 1:1.59 or ST synchronous rotor for front and rear rotors, cast steel quenching and tempering treatment, and hard chromium plating on the surface; The bearing is a ball shaft roller bearing; Bearing lubricating oil bath; Rotor speed: 5L: 36 rpm
5. Face wall: steel structure, drilling and heating, internal surface hardening and hard chromium plating treatment;
6. Support: Steel structure, with internal surface hardened and hard chromium plated treatment;
7. Top bolt: cylinder driven, surface plated with hard chromium
8. End face seal: The sealing ring material is high wear-resistant material, self-lubricating bearing, and hinge spring pressure top seal
Under normal circumstances, the consumption of a typical internal mixer is approximately 0.8%. According to the fact that there are no specific national requirements and standards in this regard, the consumption of sealed internal mixers will be less, and the consumption of poorly sealed internal mixers will be more. If the carbon black in the rubber blend is large particles, the loss will also be reduced, and if the carbon black is in powder form, the loss will also be significant. We should conduct specific operations and analysis, and the registration usually ranges from 0, 5 to 0.8. Material loss is related to the discharge temperature, as well as the type of raw rubber and raw materials; Under high temperature conditions, natural rubber will release low molecular weight carboxyl, #, and water; White carbon black also releases some moisture; The total loss will not exceed 1.5%
