Product Description
|
Item
|
Specification
|
Unit
|
Remark
|
|
|
Pack Info.
|

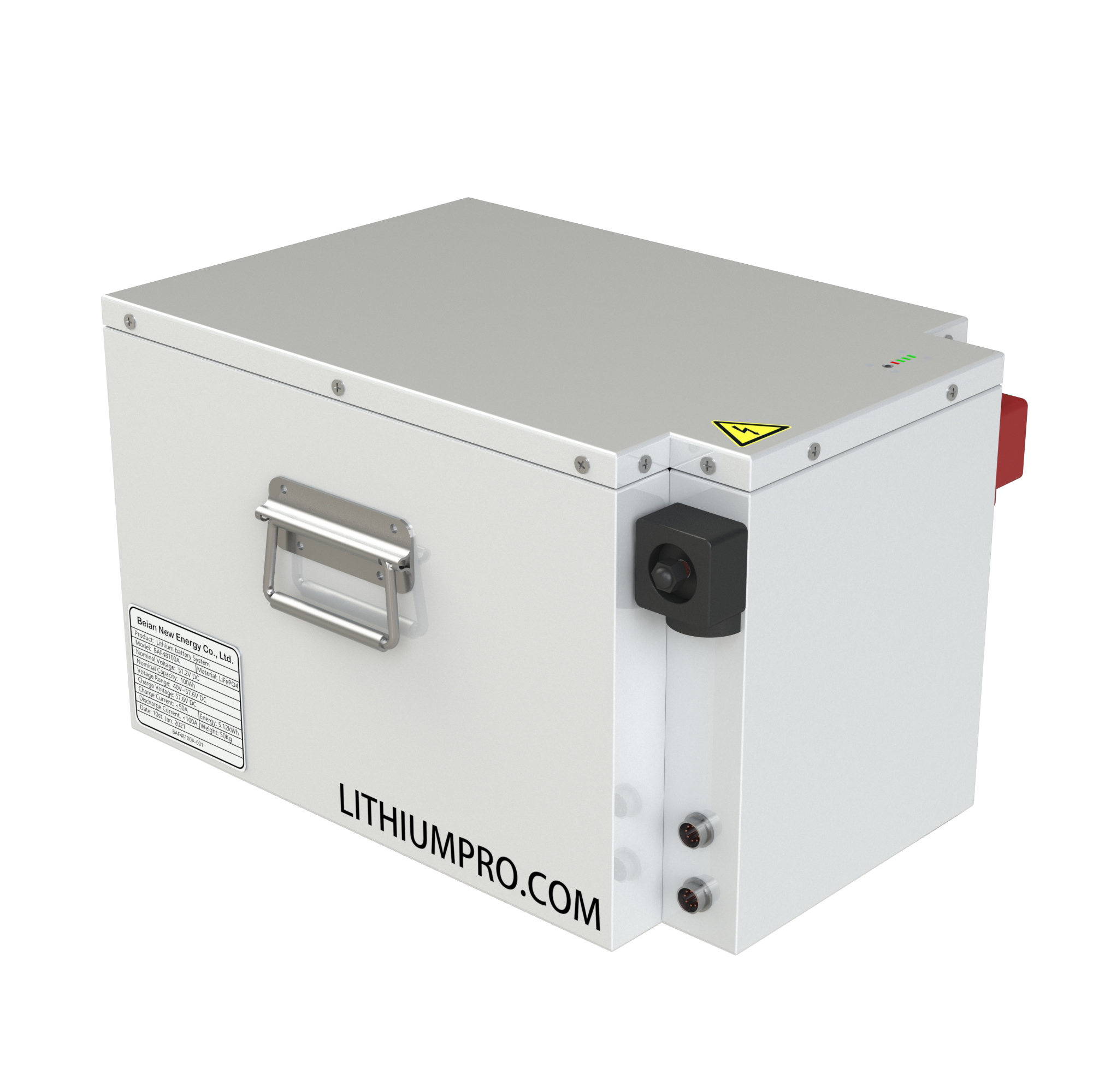

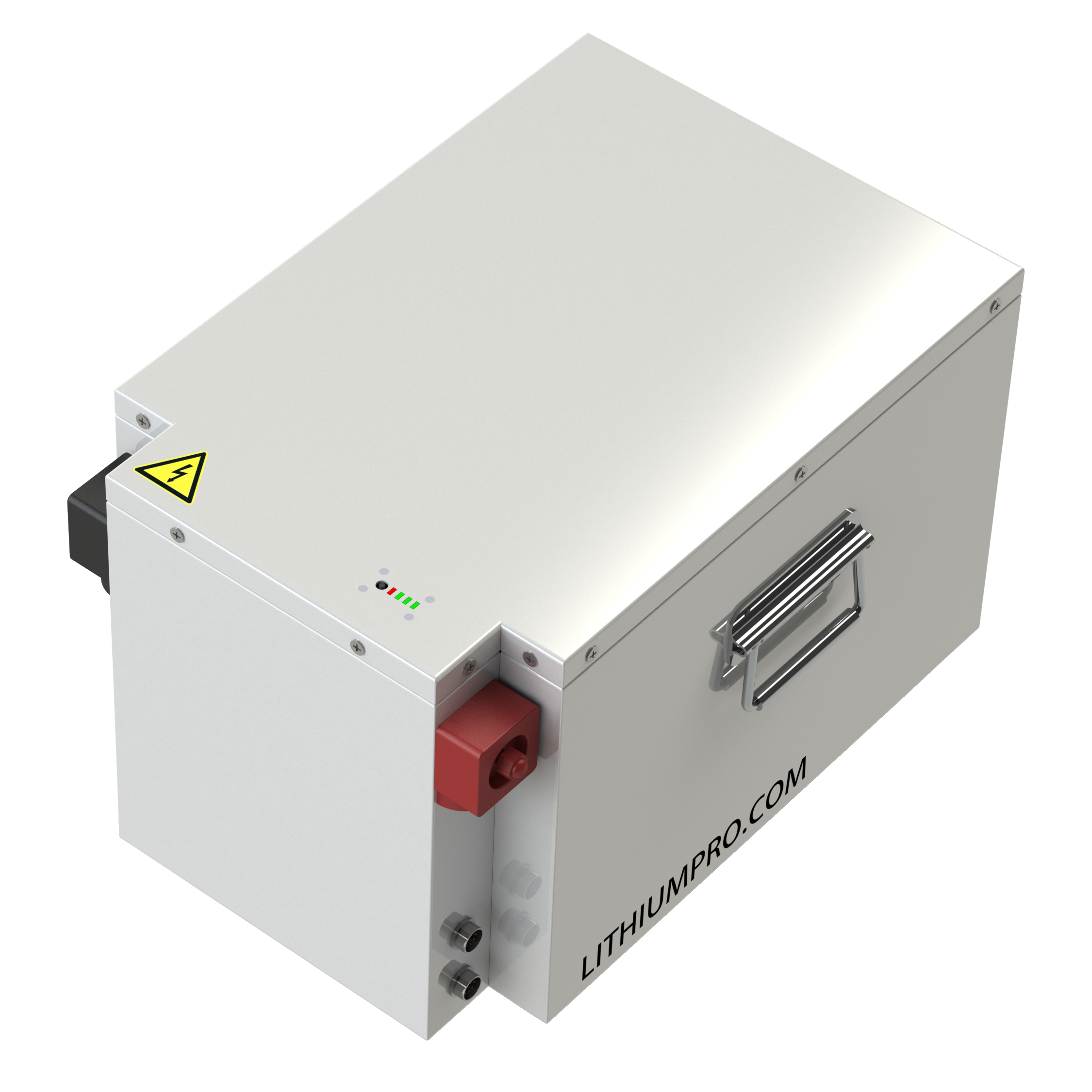

Model
|
LFP-16S1P-100Ah
|
|
|
|
Type
|
Cylinderical
|
|
|
|
|
Material
|
LiFePO4
|
|
|
|
|
Cell Spec.
|
Battery Cell Model
|
F603200C-100Ah
|
|
|
|
Battery Cell Spec.
|
3.2V100Ah
|
|
|
|
|
Pack Spec,
|
Assemble Style
|
16S1P
|
|
|
|
Nominal Voltage
|
51.2
|
V
|
|
|
|
Nominal Capacity
|
100
|
Ah
|
@ 25℃
|
|
|
Energy
|
5.120
|
kWh
|
|
|
|
Energy Density
|
111
|
Wh/kg
|
|
|
|
Charge Voltage
|
57.6
|
V
|
Voltage Range40~57.6V
|
|
|
Discharge End Voltage
|
40
|
V
|
||
|
Standard Charge Current
|
20
|
A
|
0.2C
|
|
|
Max Continuous Charge Current
|
50
|
A
|
0.5C
|
|
|
Standard Discharge Current
|
20
|
A
|
0.2C
|
|
|
Max Continuous Discharge Current
|
50
|
A
|
0.5C
|
|
|
Peak Discharge Current
|
100
|
A
|
1C
|
|
|
Charge Temp. Range
|
0~45
|
℃
|
|
|
|
Discharge Temp. Range
|
-20~60
|
℃
|
|
|
|
Storage Temp. Range
|
-10~30
|
℃
|
|
|
|

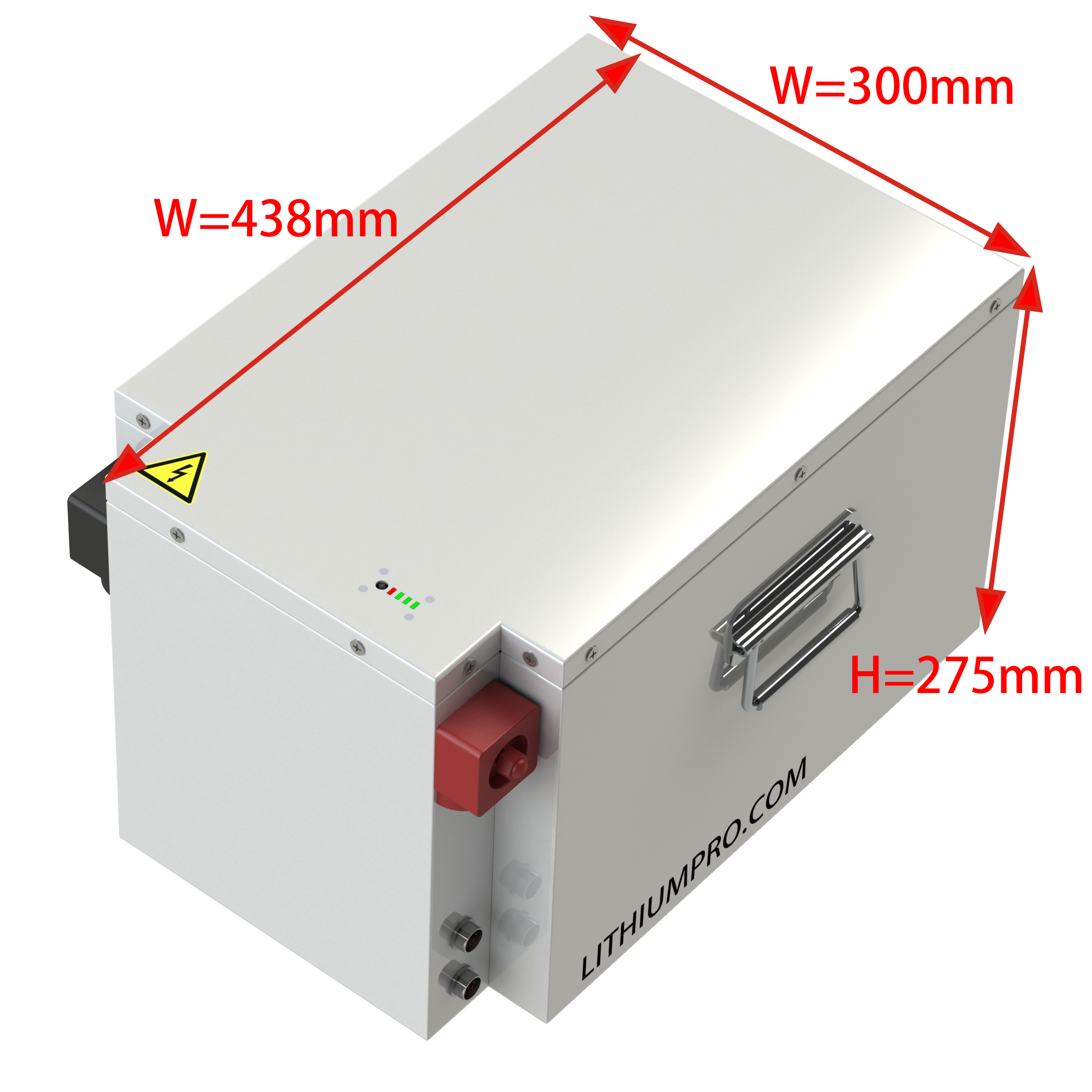

Dimension
|
438*300*275
|
mm
|
|
|
|
Weight
|
46
|
Kg
|
|
|
|
Cycle life
|
2000
|
times
|
@ 0.5C/0.5C 90%DOD
|
|
|

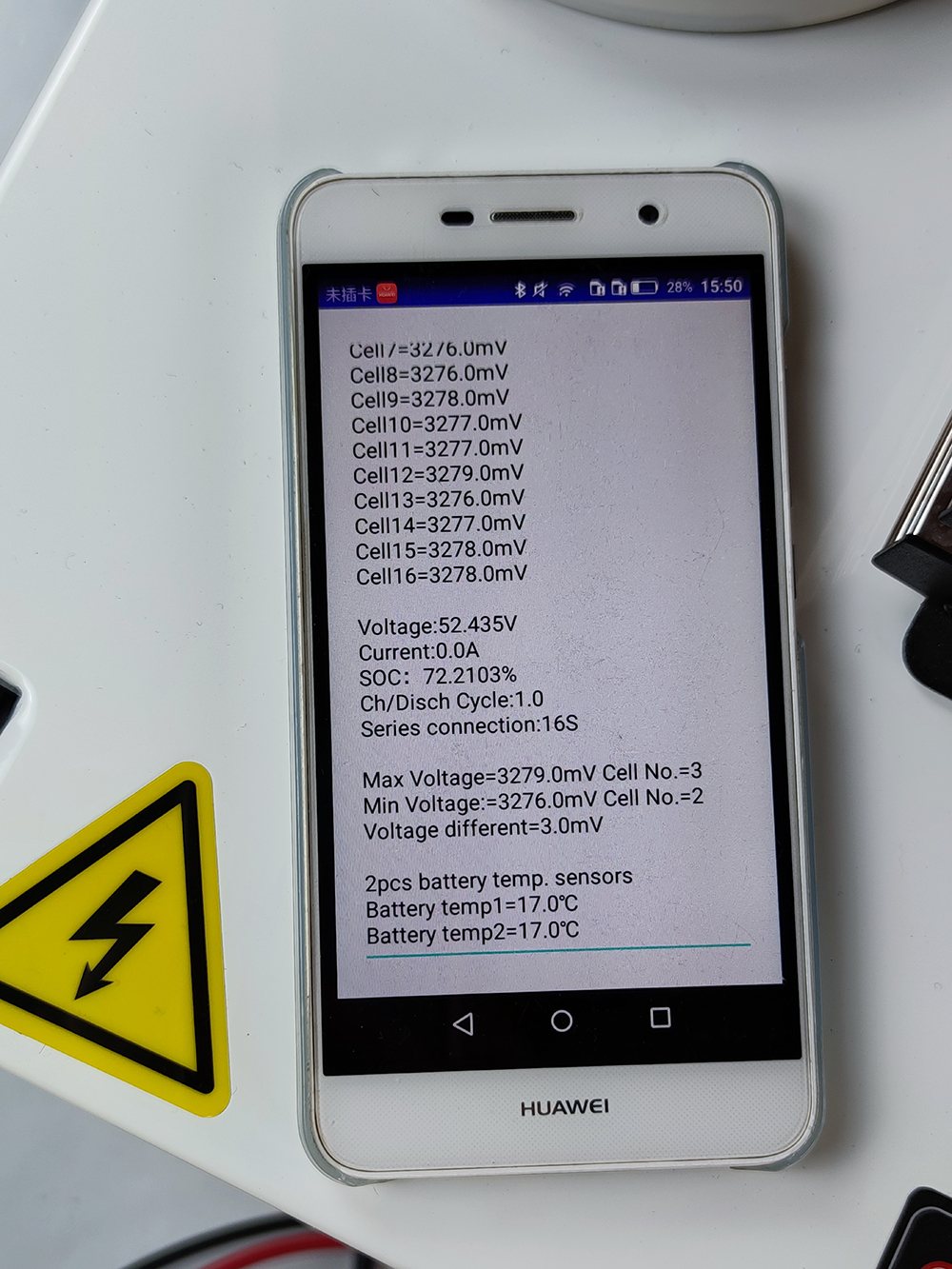

BMS
|
The BMS default specification is below, if your load working current over the specification, please contact us. Need to be
custom-made. |
|||
|

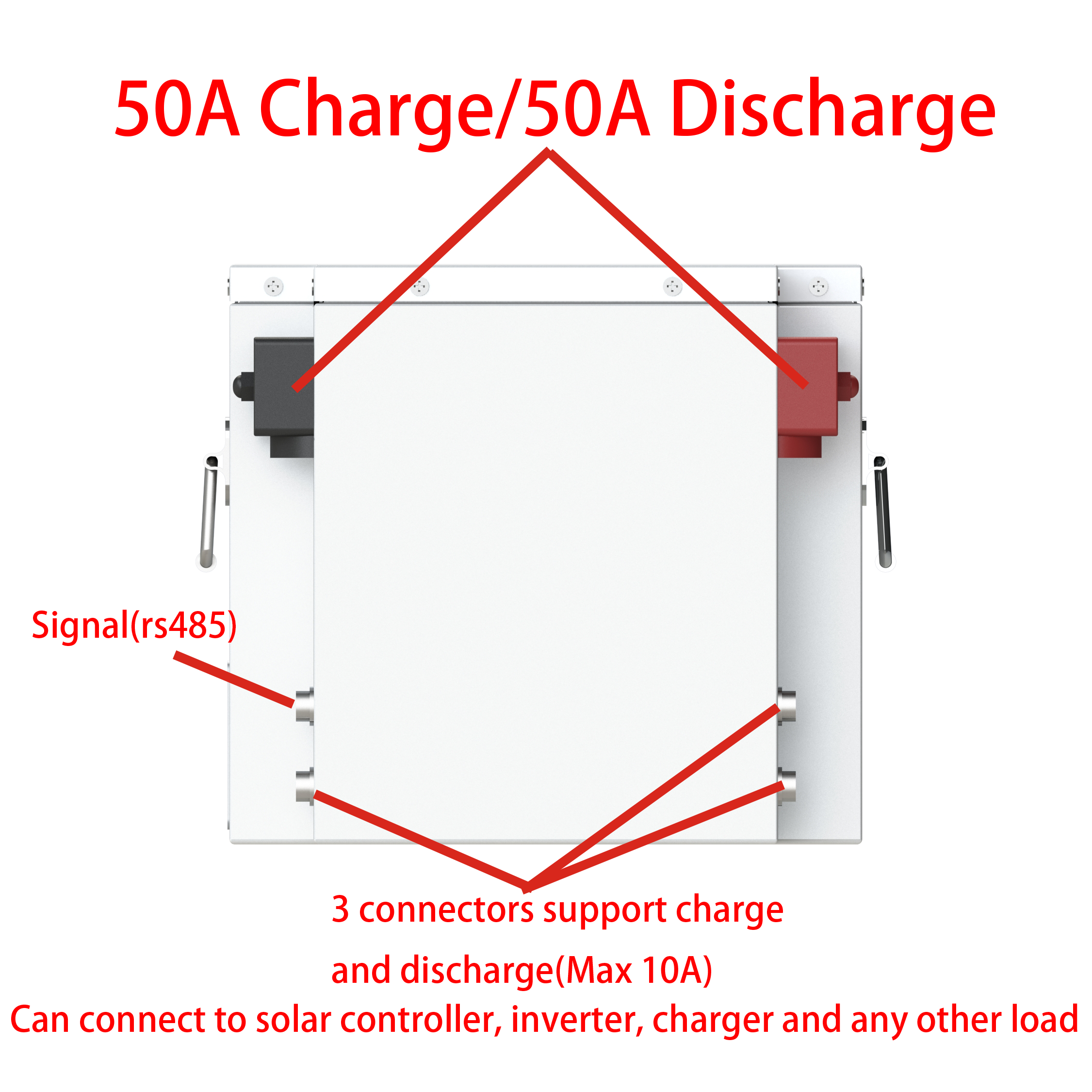

The Max continuous cuurrent
|
50
|
A
|
|
|
