High Frequency LiDAR Detector Sensor_JRT-Measure

100Hz Long Sensor Rangefinder LiDAR Car 100m

Are you an automation company and looking for a rangefinder to measure the distance? That's great, there are varieties models for your solution. 100Hz Sensor LiDAR car is a high frequency laser distance sensor with digital output can measure 100m long range(60m 3000hz max can be customized.), which is helpful for the forklift monitoring, cars collision avoidance system and longitudinal position.

FAQ (Frequently Asked Questions)
> 1. Do you have any product with digital output?
Yes, the regular laser distance sensor is digital communication, if need analogue, that need customize.
> 2. Can I choose other interface?
Yes, ttl,usb,rs232,rs485, Bluetooth optional.

Product Parameters:

Model: PTFS-100 @100Hz
Measuring Range: 3-100m @20%reflectivity
Frequency: 100Hz
Accuracy: +/-1m
Blind Area: 3m
Resolution: 0.1m
light: 905nm LD
Working voltage: 3.3V
Working Current: ~100mA
Power: ~330mW
Working temperature: -10~50
Communication interface: TTL 3.3V
Serial level: TTL 3.3V
Volume: 43*35*21mm
Weight ~30g

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

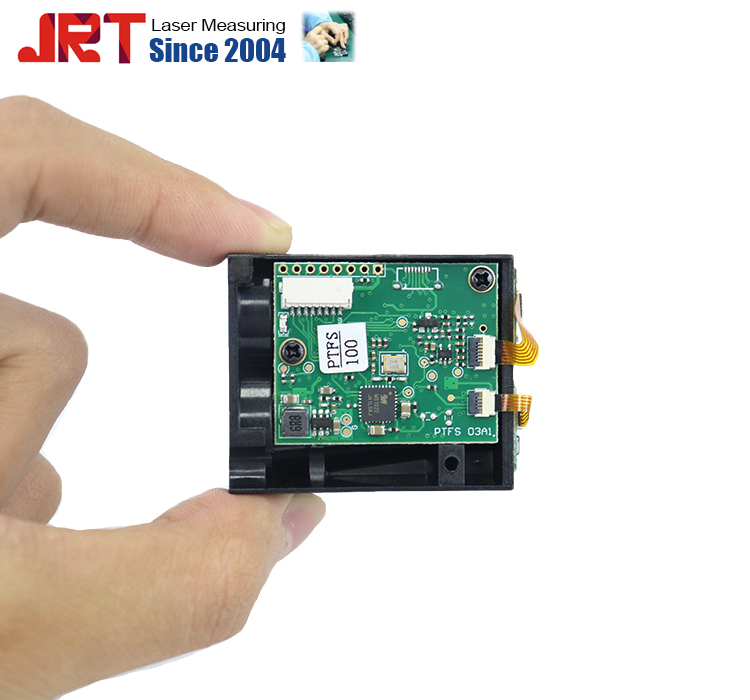

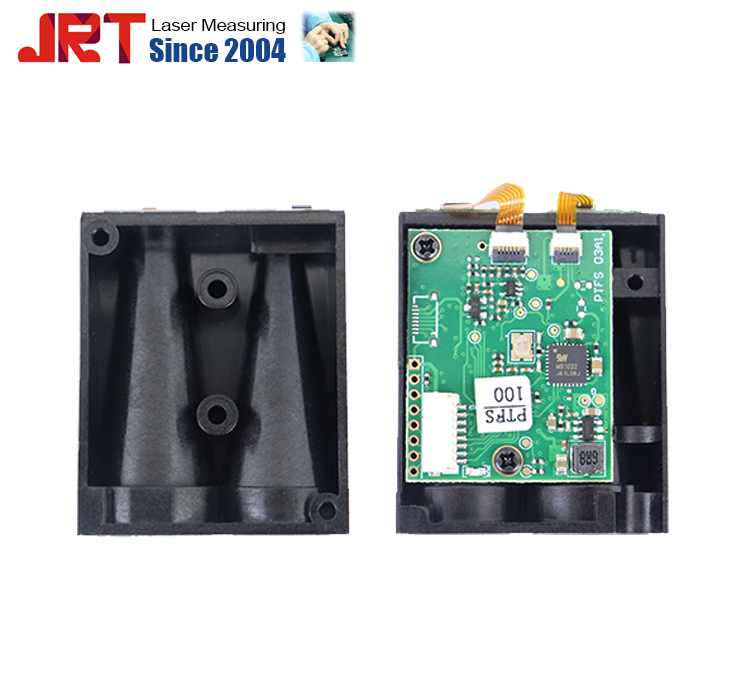

More Detailed Pictures

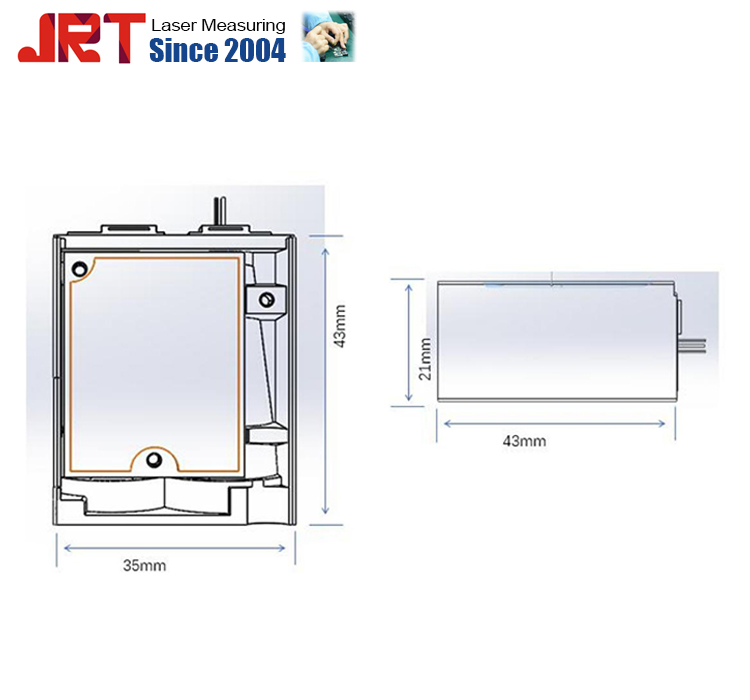

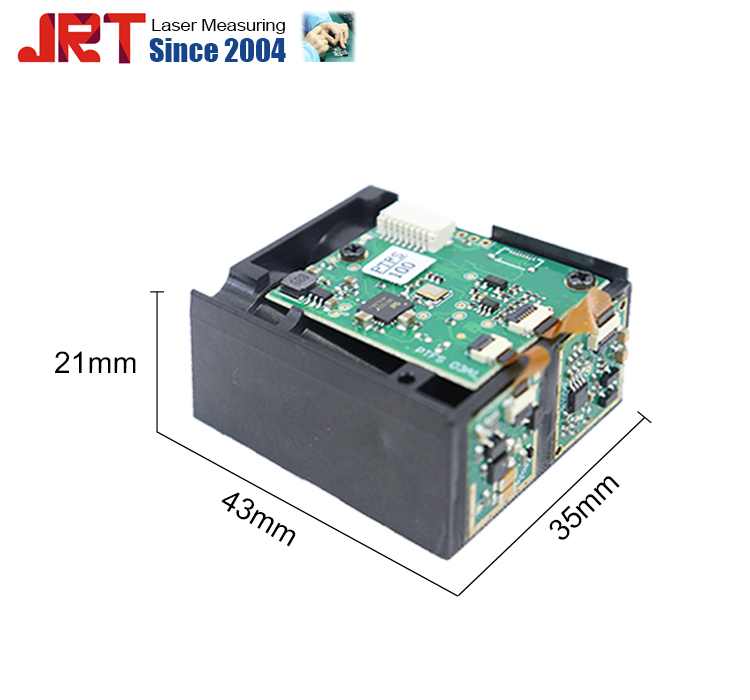

Mechanical Dimensions

Application

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor , Tof LiDAR Sensors.
