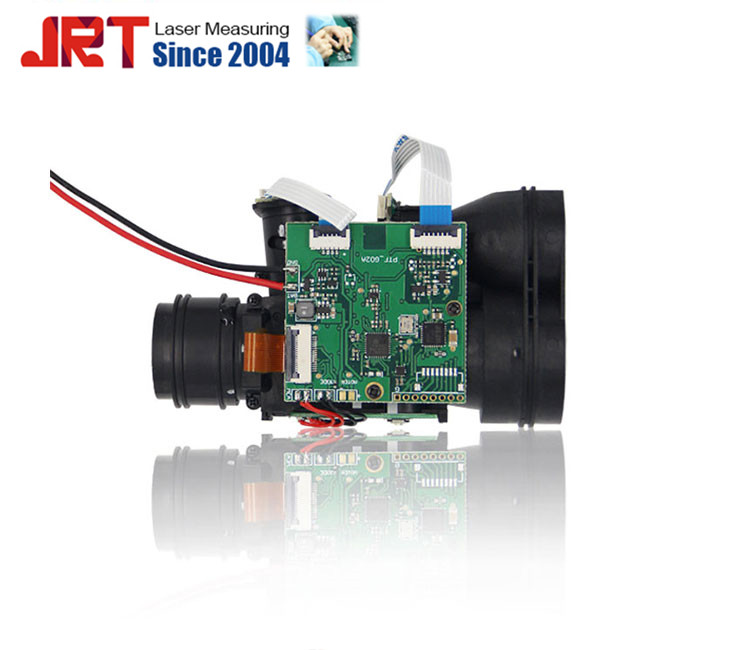

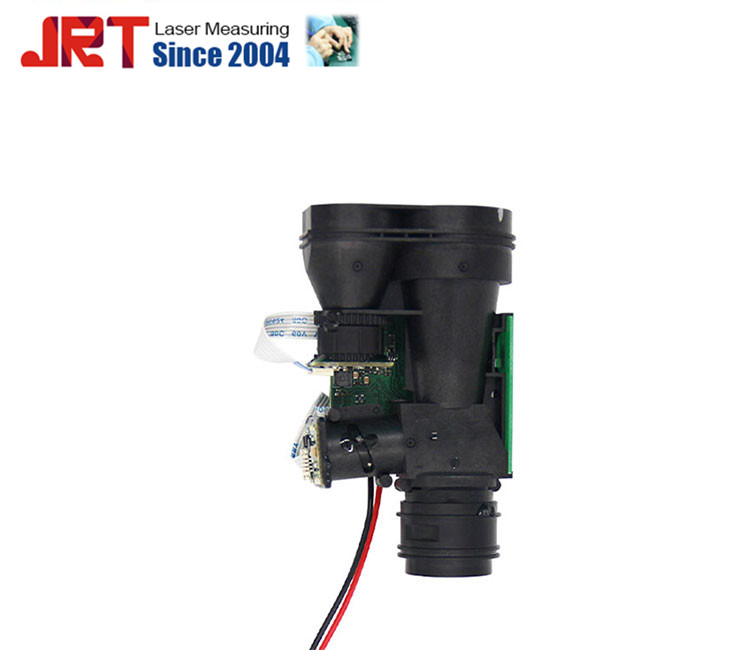

1200m Laser Tool Measurement Sensor

1200m Hunting Binoculars Sensor Company

Focused on laser Distance Sensor(High precision) and LiDAR(High-frequency and High-speed), with the advantages of high accuracy, long range, small size, stable performance, and reasonable price,we have own professional technology team and after sell sales team to support your code and protecol.If you have any project need the laser distance sensor, please contact us.

Laser range measurement sensor can be used in industrial usage too.

Technical Parameters:

Model number: PTF10412N(b221227g)
Range: 5-1200m, at 70% Reflectivity
Maximum Single Measurement Time: 1s
Absolute Accuracy: +/-1m
Blind Area: 3m
Resolution: 0.1m
Light: 905nm laser, class 1
Operating Voltage: Typical value: DC +3.3V，
                   Operating range: +2.5V~+3.5V"
Current: 100mA
Power: 330mW, at 3.3V
Operating Temperature: 0~50℃
Communication Interface: UART，Baudrate 115200bps, default
Serial level: TTL 3.3V

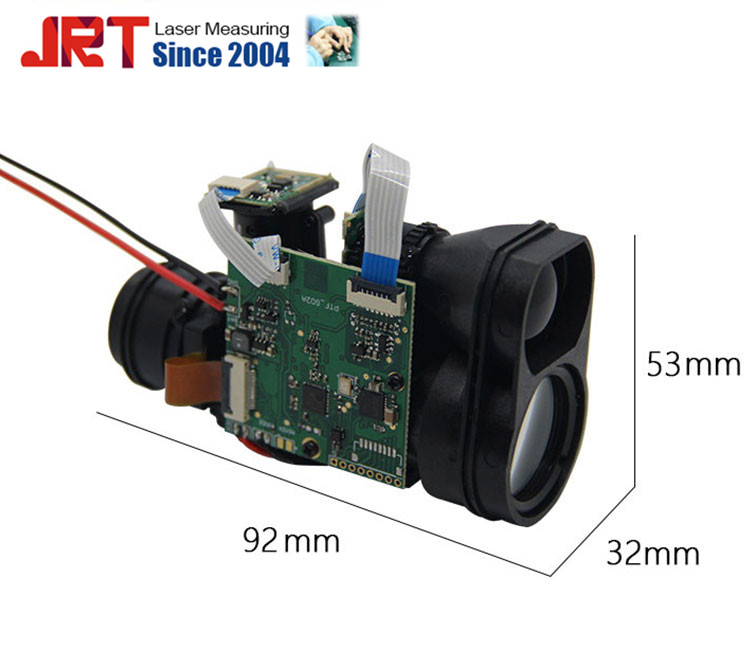

Volume: 92*53*32mm
Weight: 30g

Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃ can be customized.

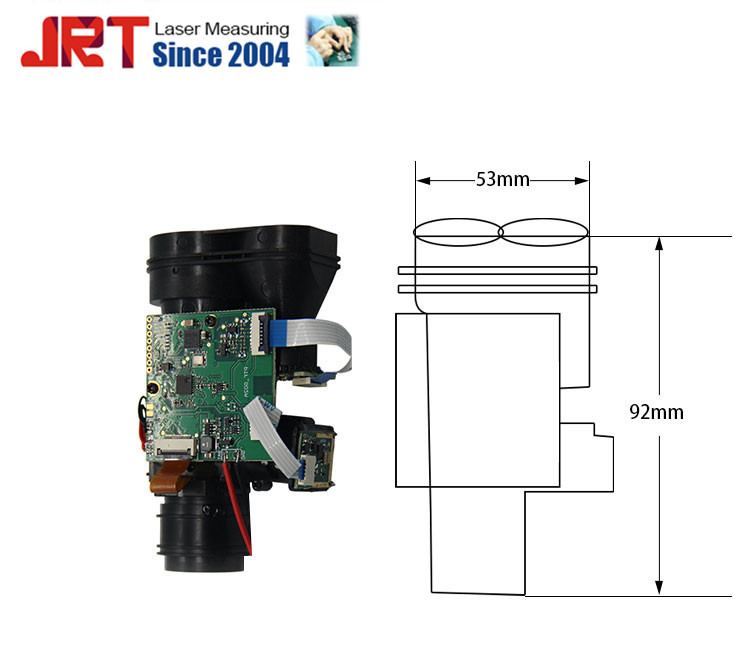

Mechanical Size:

Why Us

1.     Quality. Thanks to our strong R&D team, JRT Laser distance meter and modules have been keeping the pace with the measuring technical evolving and pioneering the industry with the unique and patented laser phase measuring solution. From the view of Accuracy, Range, Resolution, Stability, Size and Power Consumption, JRT is undoubtedly one of the best in the line.

2.    Schemes of single transmit and single receive. This is one of our patents. We are the only one in the market have this technology. It helps us to reduce our cost and power consumption a lot.

3.     Accuracy and Range. Our typical accuracy is ±3.0mm, and range from 40m to 200m.

4.     Stability. Our laser distance meter and distance module have a high stability, especially for industry use.

5.     Materials. We use the high performance price ratio components to guarantee the high quality along with a low price.

6.     Service. All goods will be inspected and tested before shipment and have one year guarantee and a life-time after sales service. Thirdly, customers` satisfaction is the most important thing to us. If you have any problems or questions, please contact us by Trademanager, email, WhatsApp, Skype, telephone. You will get your respond within 12 hours on working days, 24 hours on holidays.

7.     Size. We are keeping research on size of our laser distance module, the smallest size is: 45*25*12mm, 10g for now. We are R&D a new module the size is as small as a pen.

1200m Binoculars Sensor Package

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor, Tof LiDAR Sensors.
