ZXTC-650/850 Automatic window patching machine with cutting and creasing
Machine structure: paper feeding part, positioning part, gluing part, film sticking part, paper delivery part.

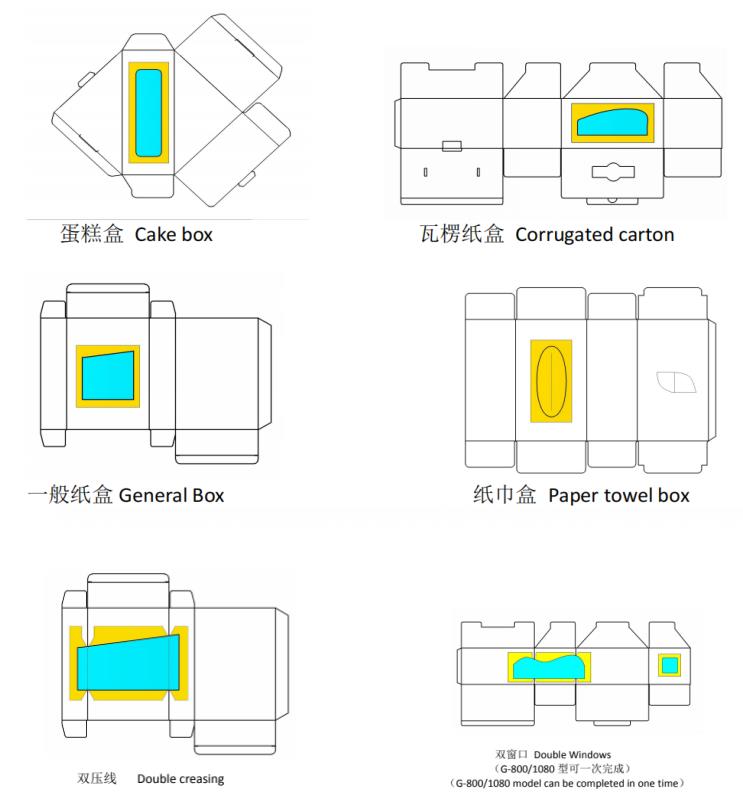

Uses: Suitable for automatic window filming of window cartons such as tissue boxes, cosmetic boxes, gift boxes, clothing boxes, toy boxes, etc. Corrugated paper is also suitable, and special-shaped cartons are also easy to operate.
Note: The purchased parts used for the machines in this contract shall be replaced with products of the same level that are not lower than the existing brand quality when the equipment is upgraded or updated. The seller will reserve the right without further notice.
Technical Parameters:
|
Model |
ZXTC-650 |
ZXTC-850 |
|
Applicable paper range |
160*160mm---580*650mm |
160*160mm---580*850mm |
|
Applicable paper grams |
200g---3000g |
200g---3000g |
|
Film size range |
50*20mm----340*320mm |
50*20mm----340*400mm |
|
Film thickness range |
0.038--0.25mm |
0.038--0.25mm |
|
Speed of work |
10000--13000pcs/h |
10000--13000pcs/h |
|
Indentation speed |
0-5000pcs/h |
0-5000pcs/h |
|
power |
6kw |
6kw |
|
Machine size (L*w*h) |
4600*1300*1600mm |
4600*1500*1600mm |
|
Machine weight |
1.5Ton |
2Ton |
Basic equipment
|
Paper Feeding |
|
|
|

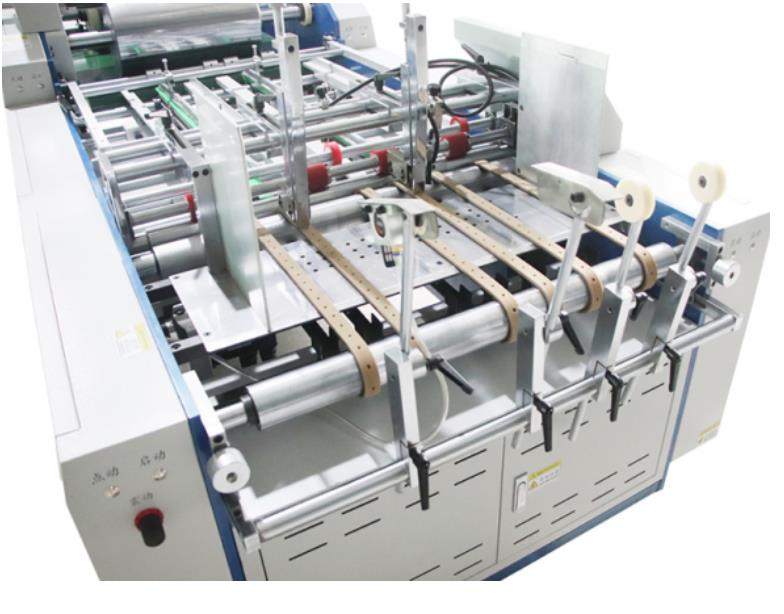

The intermittent belt conveying method adopts an independent servo control system, and the intermittent conveying distance can be adjusted according to the length of the paper; the paper-pumping belt draws paper at the bottom, eliminating the traditional clutch control method. In this way, continuous paper feeding can be realized without stopping; the left and right position of the belt can be adjusted quickly. |
|
Positioning Department |
|
|
|

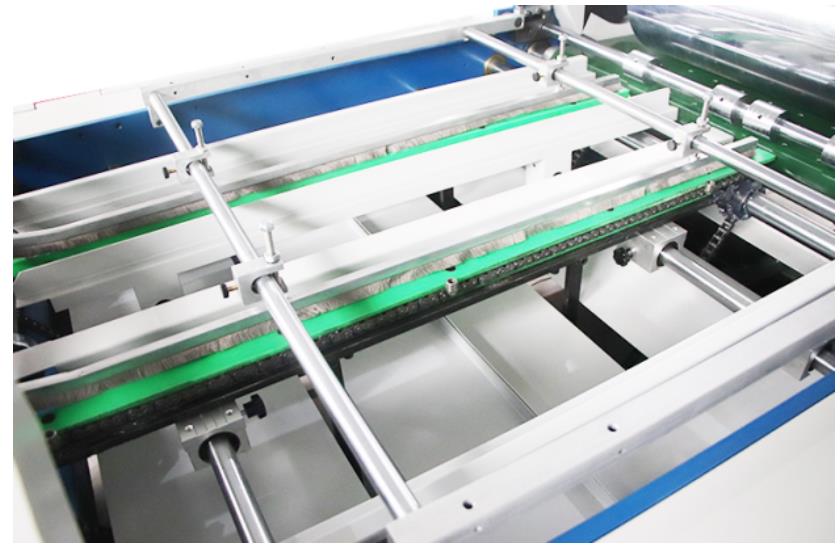

The track belt self-locking linear bearing freely slides to replace the disadvantage of slow manual adjustment of traditional screw power transmission. The polymer nylon material track has low noise and wear resistance. The correction positioning pin is driven by a servo motor alone. |
|
Glue pasting |
|
|
|
The gluing roller is made from 304 Stainless steel material which is in high corrosion resistance and is easy to clean. Transverse and longitudinal gluing model roller are driven by servo motor which can realize the dual-directional regulation directly without stopping. The gluing part is equipped with the automatic lifting function. It avoids the glue touching the belt which reduces the trouble of frequently machine stop for cleaning because of the lack |
|
Filming |
|
|
|

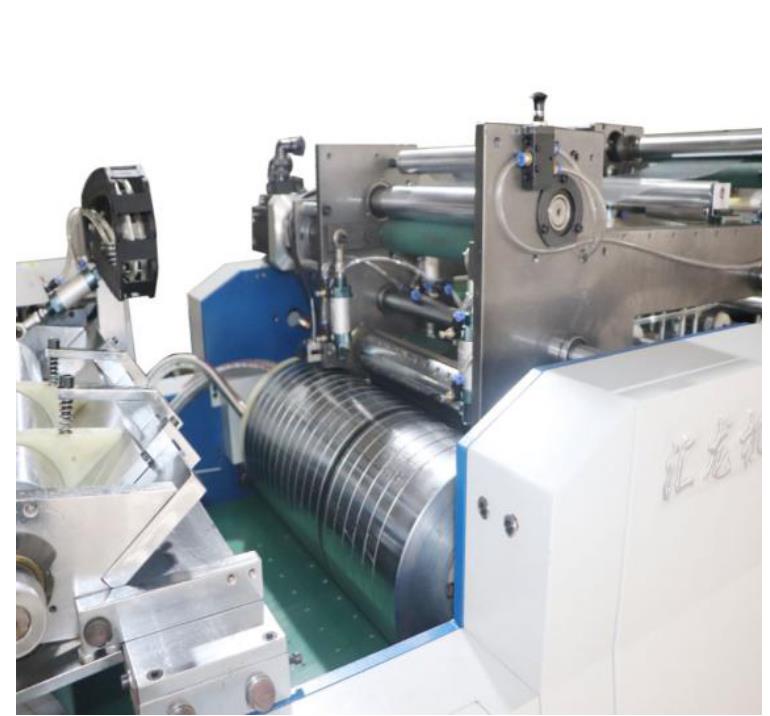

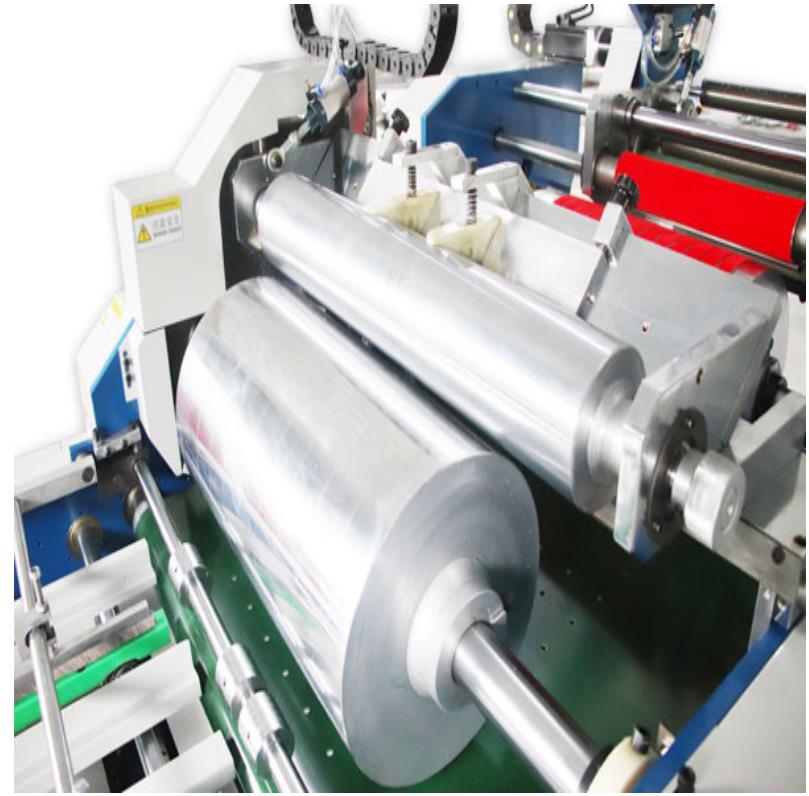

1. Using an independent servo control system, users can adjust the length of the film according to the product size without stopping the machine. 2. With two film frames, two windows can be pasted at the same time to improve production efficiency 3. Adopt upper and lower hob cutting film design, suction roller to suck film, automatic and fast film sticking |
|
collecting paper |
|
|
|

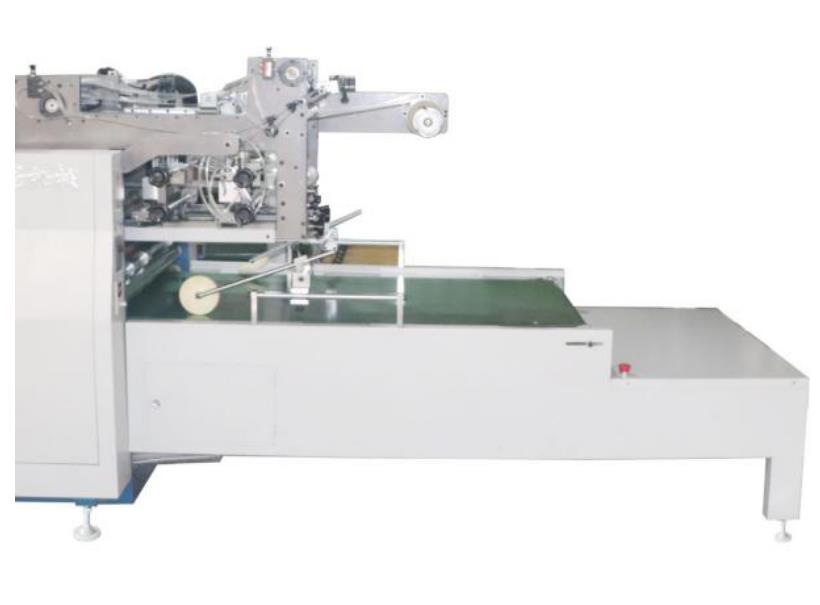

1. The delivery table adopts stepping motor, which can be continuous, pause, and flexible use of points 2. The high-quality moderate belt conveying can avoid crushing the product, and the stacking neatly collects paper to ensure perfect quality. Improve paper delivery efficiency |
