MODULAR FLOATING PONTOON

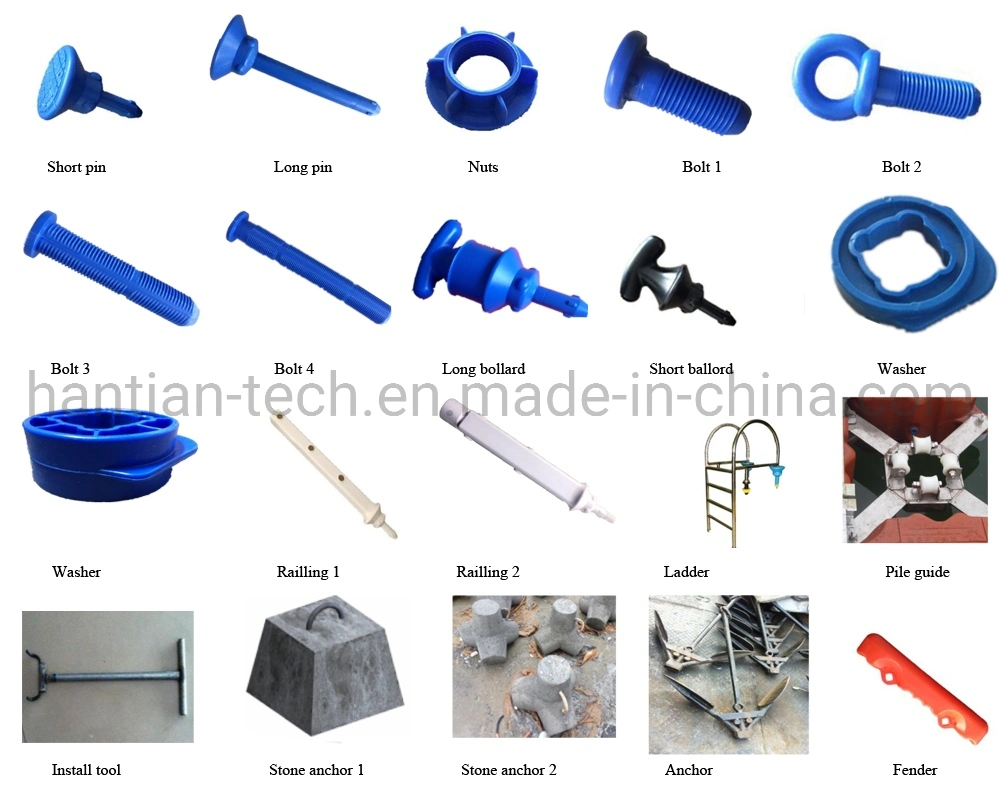

A MODULAR DOCK MADE OF FLOATING CUBES HAS THE PARTICULARITY OF BEING VERY FLEXIBLE AND ROBUST AT THE SAME TIME. IN ADDITION, YOU CAN CUSTOMIZE IT VERY EASILY WITH A WIDE RANGE OF ACCESSORIES, GANGWAYS AND RAILINGS.
Modular floating cube is made of high density polyethylene. They are blow molded.
They come in three models: single cube, double cube, Triangle cube etc.
Available in blue, grey, black and orange, our cubes can also fit your specific color needs, subject to a minimum quantity.
| Dimensions(cm) | Weight(kg) | Flotation(kg) | |
| A | 50*50*40 | 7.0 | 87.5 |
| B | 100*50*40 | 11.8 | 175.5 |
| C | 50*50*25 | 5.3 | 43.5 |
| D | 100*100*40 | 19.3 | 351.5 |
| E | 50*40*71 | 5.0 | 44.0 |
High density polyethylene is a 100% recyclable material. Our modular floating cubes are totally inert to the environment. No pollutant or constituent components having been the object of polluting chemical treatments are used in their manufacture.

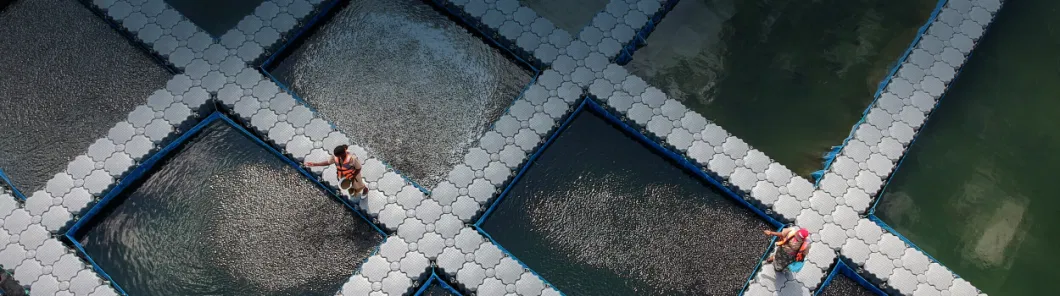

The floating cubes assembly by connecting pins every 50cm gives a pontoon made of cubes incredible flexibility, reducing its resistance to waves and allowing it to withstand exceptional tidal conditions and weather.
This foolproof flexibility is undeniably the great strength of these pontoons that can be installed in the open sea or any other body of water exposed to difficult conditions.
With a load capacity of 87.5kg per cube (model A), this solution also offers exceptional buoyancy of 350kg/ m², which value may be multiplied by 2 or 3 by stacking layers of cubes.
Product Parameters
| Floating pontoon | Material:HMW HDPE |
| Weight | 7kg±3%kg (Single Float); 13kg±3%kg (Twin-Float) |
| Color | Black,Blue,Grey,Brown,Orange (Customized Color or LOGO AVAILABLE) |

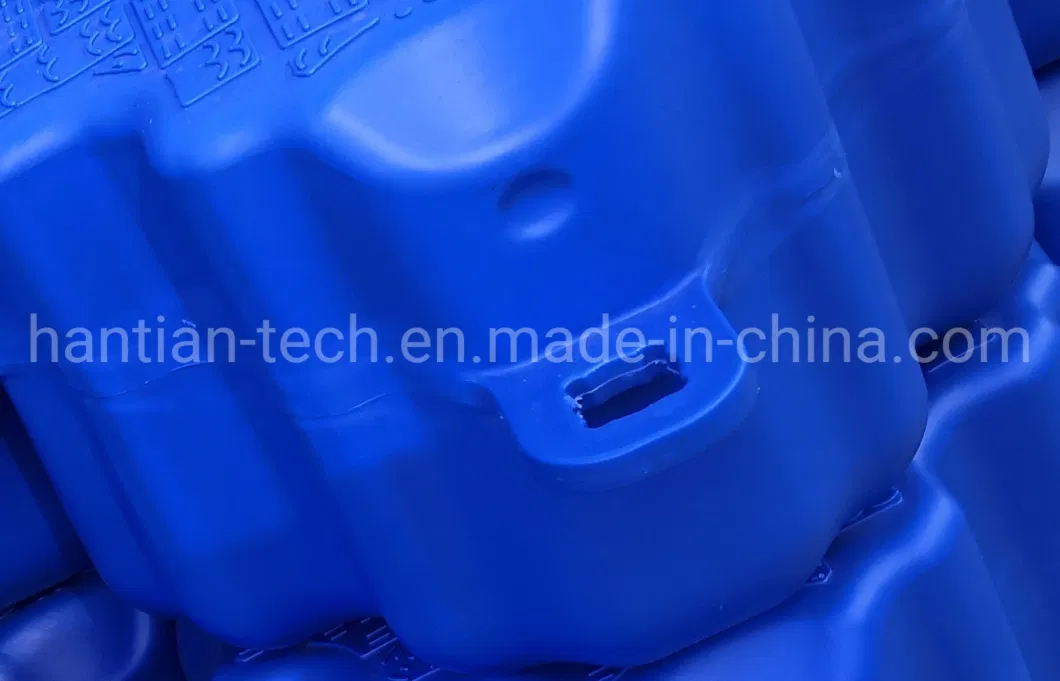

| Structure | In order to enhance the strength between cube and accessory,cube surface is designed with corrugated edges, and lug thickness increase to 20mm, more closely connected with each other. |
| Buoyancy | Single float with buoyancy 350kg per squre meter, and double layer can bear 720kg/sqm. |
| Carrying capacity | The loading for one side of pontoon is 58.8 / KN |
| Impact strength | <=9kj/m2u |
| Diagonal tension | The diagonal connection of each pontoon can bear more than 2500kg pulling force without deformation and fracture. |
| Opposite side tension | The opposite side strength is not less than 2500KG. |
| Skin-friction coefficient | To rubber material:μ≥3.1 To Metal material:μ≥1.2 |
| Performance | 1.Temperature:pontoon can be worked between -60 ° C to 80 ° C; 2. Anti-corrosion, anti-freeze, anti-oxidation, anti-UV line, free from seawater, chemicals, oil stains and aquatic organisms; 3. friendly-environment. |
| Vertical bearing capacity |
Light draught:2cm; Loaded 50KG-200KG:7cm-21cm; Loaded 250KG-350KG:26cm-36cm; |
| Wall thickness | 5mm |
