Product details

Do you know pp pe pvc pulverizer machine ?

We are plastic machine company for twenty years and our product range include plastic pipe hual off machine,plastic pipe cutting machine and plastic pipe winder,today we want share something about PE PP PVC PULVERIZER MACHINE.

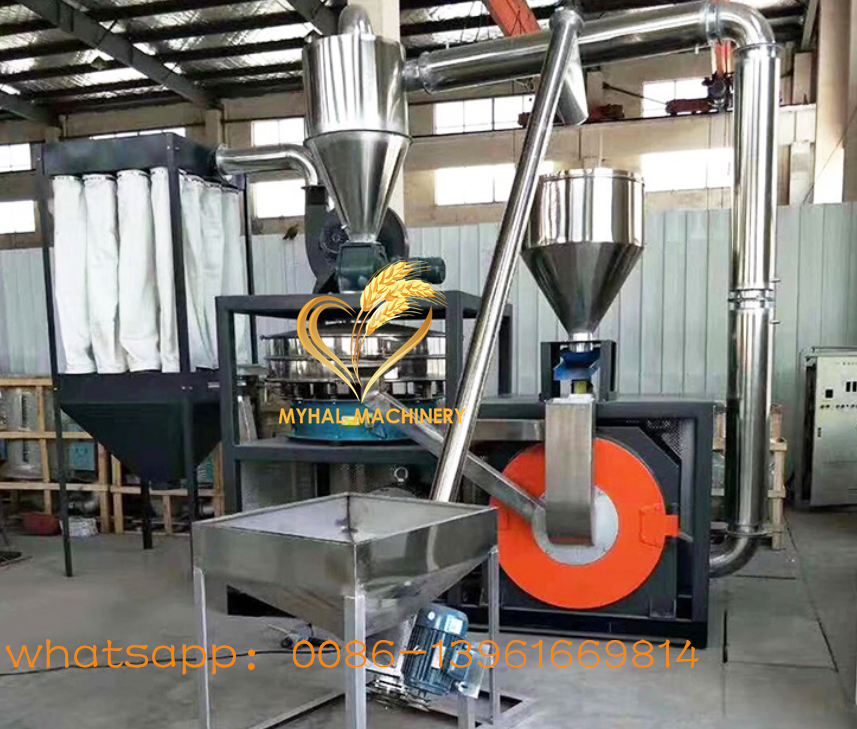

The disc grinding pulverizer machine of the PNMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.

According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.

Please contact myhal machinery for more informations.

plastic grinder Machine

It is mainly suitable for various kinds of resin such as Polyethylene, Polypropylene, PVC and other ingredients, mixing, coloring, drying, and ABS Polycarbonate and other engineering plastics before process of drying, dehydration, and can also used in the mixing of phenolic resin.

SMF series pulverizer/milling machine specification (for PE PP ABS, PET, PS, PC, EPS,PA, etc)

Model	SMF-400	SMF-610	SMF-800
Blade disc size	400mm	610mm	800mm
Blade Disc quantity	2 pieces	2 pieces	2 pieces
Shaft rotary speed	4500 rpm	4200 rpm	3700 rpm
Main motor power	30kw	45kw	55kw
Blower power	3kw	5.5kw	7.5kw
Flow valve power	0.75kw	0.75kw	1.1kw
Powder size	10-100mesh	10-100 mesh	10-100 mesh
Cooling method	Air cooling & water cooling	Air cooling & water cooling	Air cooling & water cooling
Capacity	150kg/h (PE) 80kg/h (PP) 20kg/h (PE)	250kg/h (PE) 160kg/h (PP) 350kg/h (PE)	350-400kg/h (PE) 200-250kg/h (PP) 500kg/h (PE)
Machine size	250020003000mm	280023003000mm	320028003200mm

SMW series pulverizer/miler machine specification (for PVC)

Model	SMW-500	SMW-600	SMW-800
Motor power (kw)	37kw	55kw	75kw
Blow power (kw)	3kw	5.5kw	11kw
Voltage	380V, 50Hz (according to customer)	380V, 50Hz (according to customer)	380V, 50Hz (according to customer)
Total power	41kw	52kw	90.5kw
Blade Dia.	500mm	600mm	800mm
Feeding material size	Below 10mm	Below 10mm	Below 10mm
Output size	40-80mesh	40-80mesh	40-80mesh
Vibration model	ZDS-800	ZDS-1000	ZDS-1200
Capacity	200-300kg/h	300-500kg/h	500-600kg/h
Machine size(mm)	250020003000mm	320026003200mm	350024004000mm

Advantages:
1. Safe and simple adjustment of cutting gap
2. Low energy consumption and high throughput
3. Innovative and energy efficient design
4. Easy to maintain and control
5. Wide range of accessories
6. Regrinding coarse powder automatically
7. Dual cooling system
