1.5/1 B - AH Horizontal Centrifugal Slurry Pump
1.5 / 1 B - AH Horizontal Centrifugal Slurry Pumps are cantilevered, horizontal, centrifugal slurry pump.
Horizontal Centrifugal Slurry Pumps are designed for the handing high density slurries in the metallurgical, mining , coal, power, building material and other industrial department etc.
1.5 /1 B-AH Horizontal Centrifugal Slurry Pumps Can be installed in multistage series.
The frame plates liner and impeller for 1.5/1B- AH Horizontal Centrifugal slurry pump have replaceable wear-resistant metal liners or rubber liners.
The shaft seals for 1.5 / 1 B - AH Horizontal Centrifugal Slurry Pump can be adoptable of gland seal ,expeller seal or Mechanical Seal .
The outlet of the pump can be installed at eight directions intervals of 45 °within 360°
Description
|
Index |
Value |
|
Products Name |
1.5/1 B- AH High Chrome Alloy Slurry Pump |
| Inlet Dia (mm) | 1.5 inch |
|
Outlet Dia (mm) |
1 inch |
|
Flow (m3/h) |
12.6-28.8 |
|
Head (m) |
6 - 68 |
|
Max Power(kw) |
15 |
|
Material |
High Chrome A05 |
|
Drive Type |
CV / ZVz / CRz/ DCz |
| Drive Engine | Motor or Diesel |
|
Seal Type |
Packing Seal , Expeller Seal, Mechanical Seal |
|
MQQ |
1 set |
|
Payment Term |
TT , LC, or Negotiate |
|
Original |
ShiJiaZhuang , Hebei China |
|
Supply Range |
Slurry Pump , Motor , Base Plate,Guard, v-belt , Pulley |
|
Weight (KG) |
91 |
|
Delivery Term |
By Sea, By air , By TNT, DHL , By Train |
1.5 / 1 B - AH Horizontal Centrifugal Slurry Pump Performance Parameters
|
Type |
Allowable Mating Max. Power(Kw) |
Clear Water Performance |
Impeller |
|||||
|
Capacity/Q m³/hr |
Head/m |
Speed/rpm |
Max Efficiency/% |
NPSH/m |
Nos of Vane |
Impeller Diameter/mm |
||
|
1.5X1-NP-AH |
15 |
12.6--28.8 |
6--68 |
1200--3800 |
40 |
2--4 |
5 |
152 |
|
2X1.5-NP-AH |
15 |
32.4--72 |
6--58 |
1200--3200 |
45 |
3.5--8 |
5 |
184 |
|
3X2-NP-AH |
30 |
39.6--86.4 |
12--64 |
1300--2700 |
55 |
4--6 |
5 |
214 |
|
4X3-NP-AH |
30 |
86.4--198 |
9--52 |
1000--2200 |
71 |
4--6 |
5 |
245 |
|
6X4-NP-AH |
60 |
162--360 |
12--56 |
800--1550 |
65 |
5--8 |
5 |
365 |
|
8X6-NP-AH |
300 |
360--828 |
10--61 |
500--1140 |
72 |
2--9 |
5 |
510 |
|
10X8-NP-AH |
560 |
612--1368 |
11--61 |
400--850 |
71 |
4--10 |
5 |
686 |
|
12X10-NP-AH |
560 |
936--1980 |
7--68 |
300--800 |
82 |
6 |
5 |
762 |
|
14X12-NP-AH |
560 |
1260--2772 |
13--63 |
300--600 |
77 |
3--10 |
5 |
965 |
|
16X14-NP-AH |
1200 |
1368--3060 |
11--63 |
250--550 |
79 |
4--10 |
5 |
1067 |
|
18X16-NP-AH |
1200 |
2520--5400 |
13--57 |
200--400 |
85 |
5--10 |
5 |
1370 |
Horizontal Centrifugal Pump Construction Drawing
Main Part Number At The Drawing
|
032:Frame Plate
060: Intake Joint 132:Discharge Joint 083:Throatbush 110:Volute Liner 147: Impeller |
122: Stuffing Box Seal
036: Frame Plate Liner 013:Cover Plate 018:Cover Plate Liner 124: Volute Cover Seal 041: Frame Plate Liner Insert |
Materials of Construction
|
|
LINERS |
IMPELLERS |
CASING |
BASE |
EXPELLER |
EXPELLER RING |
SHAFT SLEEVE |
SEALS |
|
Standard |
Chrome Alloy |
Chrome Alloy |
SG Iron |
SG Iron |
Chrome Alloy |
Chrome Alloy |
SG Iron |
Rubber |
|
Options |
Ferralium |
Ferralium |
SG Iron |
MS |
NI Resist |
NI Resist |
EN56C |
Ceramic |

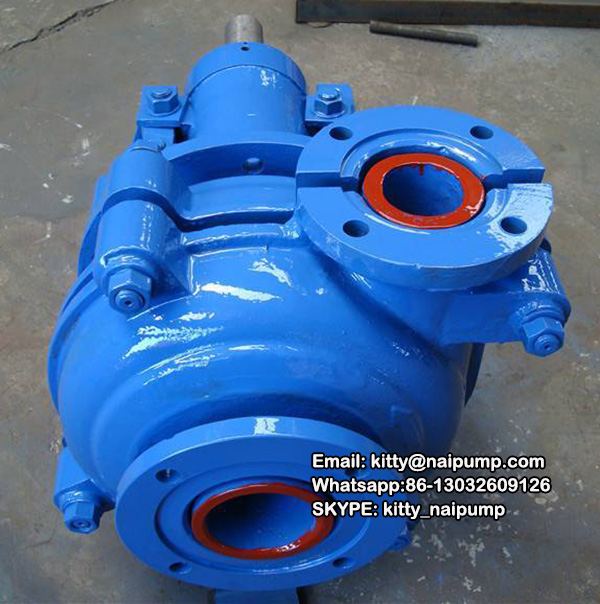

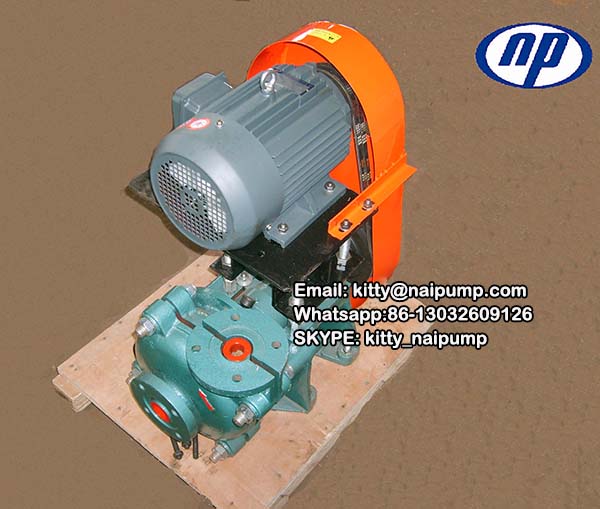

1.5/1 B- AH Horizontal Centrifugal Slurry Pump Picture
If you have any questions, please contact with us directly. 1.5/1 B - AH are produced by ShiJiaZhuang NaiPu Pump Co.,
With High Quality and Good Appearance. Welcome you can visit our Factory.For inqury,Please send mail directly to us : kitty at naipump dot com
