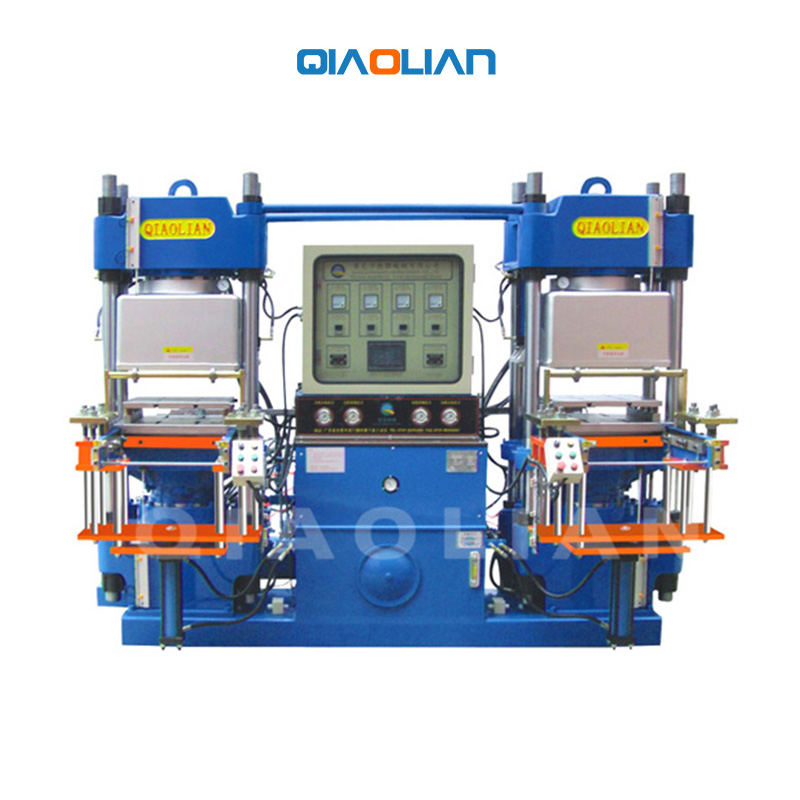

Silicone Rubber Vacuumizing and Hot Pressing Forming Machine
Vacuum Vulcanizing Machine application:
The Vulcanising Press can produce silicone and rubber complex polygonal sporting goods, precision electronic parts, o-rings, key pads, rubber roller, medical bottle stopper, auto parts, small parts, shock absorption of the electric power industry supplies, special-shaped gaskets gaskets , conductive products , etc.
Automatic Vulcanizing Machine Equipment features:
1、Convenient for workers to operate, The change of the molds can be realized easily, no need to remove the mold opening pedestal from the rail.
2、Double power systems, double oil pumps, double motors and double oil coolers are applied for the two axles to work independently.
3、The oil system is unique in design ,with good stability, faster lift-up and lift-down speed compared with other brands during unloading/loading molds.
4、With high vacuum and average pumping method, which is ensure the product stabilized and improved the quality and capacity.
5、Special mold open mechanism design, durable, long life, quiet mold in and out, fast, smooth.
Equipment parameters：
| TYPE | 100Ton | 150Ton | 200Ton | 250 Ton | 300 Ton | 300B Ton | 400 Ton | 500 Ton |
| Clamping force(Ton) | 100 | 150 | 200 | 250 | 300 | 300 | 400 | 500 |
|
Stroke(mm) |
250 | 250 | 280 | 300 | 300 | 300 | 300 | 300 |
|
Heating plate size(mm) |
400*400 448*460 |
420*420 460*460 |
503*508 545*560 |
600*600 650*650 |
600*600 650*650 |
700*700 700*700 |
700*700 800*800 |
800*800 850*850 |
|
Diameter or cylinde(mm) |
Φ250 | Φ310 | Φ355 | Φ400 | Φ450 | Φ450 | Φ500 | Φ560 |
|
Horse power(HP) |
7.5*2 | 7.5*2 | 10*2 | 10*2 | 10*2 | 10*2 | 15*2 | 15*2 |
|
Type of mold opening |
UP Down in-Out-2RT/3RT/4RT | |||||||
|
Double shaft thermal electricity(KW) |
14 | 22.5 | 27 | 34.5 | 36 | 45.5 | 46.5 | 48 |
|
Total power(KW) |
19.5 | 33.5 | 42 | 49.5 | 51 | 60.5 | 68.5 | 70 |
|
Gross weight(KG) |
6000 | 7500 | 8500 | 11000 | 13000 | 15000 | 19500 | 24000 |
|
Machine Size(m) |
2.7*2.3*2.27 | 3.0*2.3*2.35 | 3.2*2.6*2.5 | 3.6*2.95*2.65 | 3.65*2.95*2.7 | 3.8*3.0*2.9 | 3.85*3.15*3.0 | 4.1*3.2*3.1 |
*We reserve the right to change any design and specification without ontice.
