700m TTL Laser Rangefinder Sensor LiDAR

700m Laser Rangefinder Sensor is our new product with 905nm, good for Hunting Golf 5~700m. The range finder sensor is 2021 Best-sale,as it 's a cheap, high quality, and reliable infrared range finder sensor. Golf Rangefinder Sensor LiDAR are favored by many professional users. JRT 2021 best-sale laser rangefinder module and sensor are helping more and more users realize their smart idear not only in intelligent laser measure areas. 700M compact distance rangefinder has powerful rangfinder ability which accurate measuring can give you very very different feeling.

JRT has been doing laser distance sensors since 2004.
We are having following new products, welcome to inquiry more:
1. 1200m Long distance Laser range finder can be customized
2. World Smallest laser distance sensor: 41x17x7mm(can measure 20m)
3. 3000 Hz High Frequency LiDAR Sensor: 43*35*21mm(60m max)

Technical Parameters:
Model: PTF8002-b210603-700m
Range: 3-700m, at 70% Reflectivity
       3-400m, at 70% Reflectivity
Maximum Single Measurement Time: 1s
Absolute Accuracy: +/-1m
Blind Area: 3m
Resolution: 0.1m
Light: 905nm laser, class 2
Operating Voltage: Typical value: DC +3.3V，
                   Operating range: +2.5V~+3.5V"
Current: 100mA
Power: 330mW, at 3.3V
Operating Temperature: 0~50℃
Communication Interface: UART，Baudrate 115200bps, default
Serial level: TTL 3.3V
Volume: 43*35*21mm
Weight: 30 g

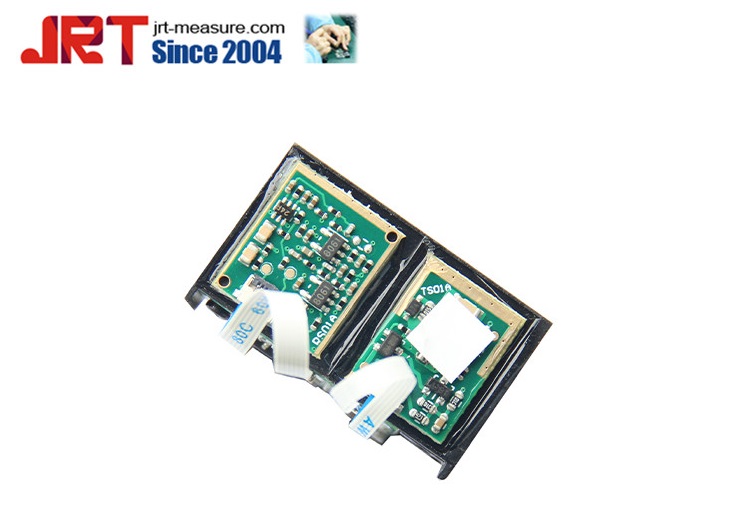

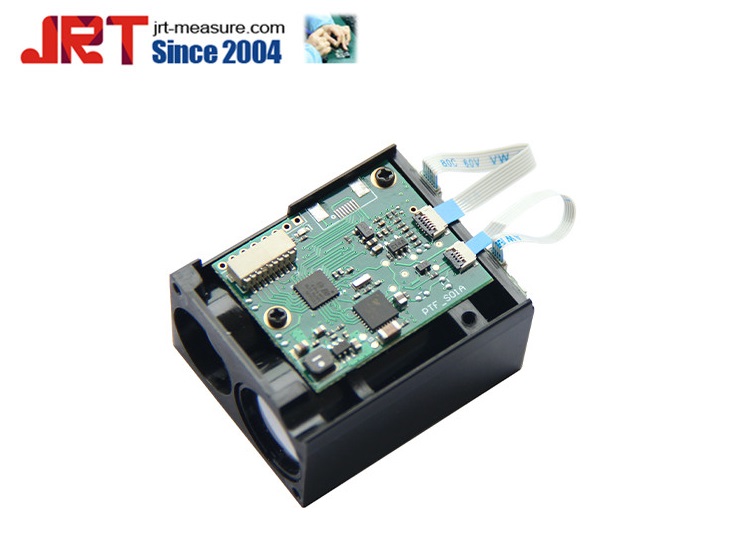

More Product picture

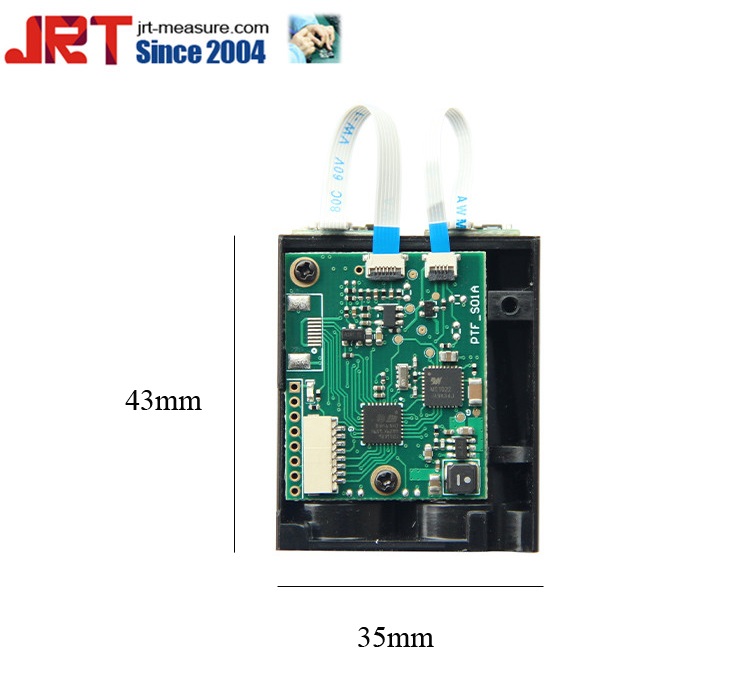

CAD picture

UART Port Configuration

Baudrate:     115200bps
Start bits:   1 bit
Data bits:    8 bits
Stop bits:    1 bit
Parity:       none
Flow control:  none
