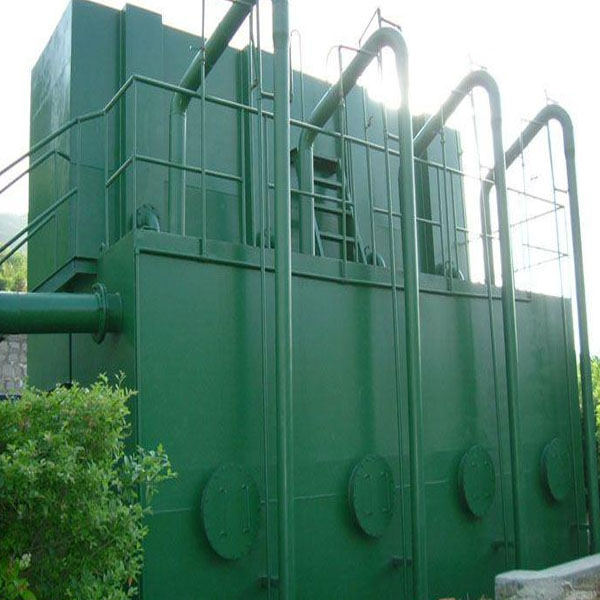

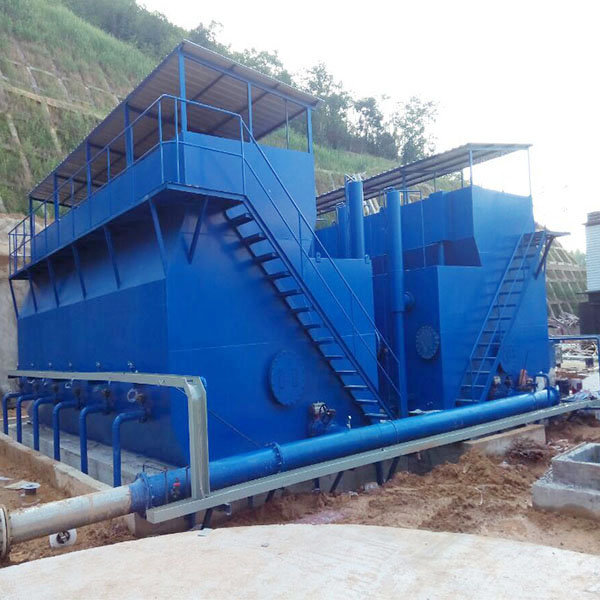

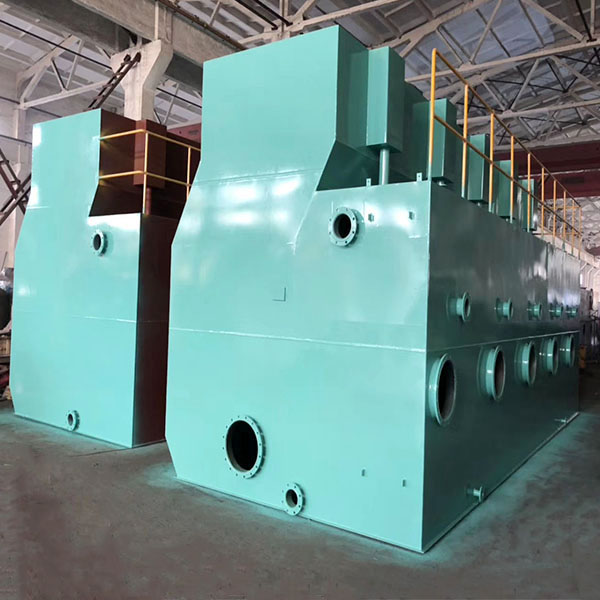

Loren Fully Automatic Water Purifier
Brief Introduction of Integrated Water Purification Equipment
LWP Series Lake and Water Works Water Purifier is Widely Used In The Automatic Purification Of Surface Water Turbidity With Its Unique Structure & Scientific Use Of Hydraulics.
Component
Our Integrated Water Purifier Integrates Mixing, Reaction, Flocculation, Sedimentation, Filtration, Mud Discharge, Water Collection and Water Distribution To Meet The Requirements Of Automatic Operation.
Combined Water Treatment System Feature
-Special Fit for Such Lake Source with Low Temp. And Low Turbidity( NTU Below 3000mg/L) as well as Seasonal Algae
-Saves One-Time Investment & Daily Operating Costs Due To No Need Back-Flush Pump and Air Compressors
-About 5% Less Water Consumption Saves Limited Water Resources
-Only Do Water Quality Monitoring with No Operation Management thus to Reduce The Labor Working Intensity
-It Occupies About 50% Small Area Compared With Other Ordinary Equipment
-Adopt Guided Counter-Flow Sedimentation Inclined Tube Packing To Improve Surface Load, Sedimentation Effect and To Shorten Sedimentation Time
-Stable and Excellent Outlet Water Quality
-Strong Impact-Tolerance Capacity
-Widely Application
-Economical and Lower Investment Cost
-High Automatic Control Degree
-Easy Maintenance
-Long Service Life
Automatic Water Purification System Specification
|
Model |
Capacity (M3/h) |
Dimension (L*W*H) m |
Pool NO. |
N.W. ( Ton ) |
G.W. ( Ton ) |
|
LWP-5 |
5 |
2.32*1.85*4.90 |
1 |
3.96 |
8.30 |
|
LWP-10 |
10 |
2.10*2.60*5.88 |
1 |
5.05 |
14.20 |
|
LWP-15 |
15 |
3.81*2.90*5.88 |
1 |
8.12 |
22.63 |
|
LWP-20 |
20 |
4.70*3.31*6.00 |
1 |
10.26 |
28.90 |
|
LWP-25 |
25 |
5.10*3.33*6.00 |
1 |
12.56 |
36.68 |
|
LWP-30 |
30 |
5.00*3.71*6.75 |
1 |
14.65 |
44.50 |
|
LWP-40 |
40 |
6.00*5.35*6.75 |
1 |
17.16 |
57.20 |
|
LWP-50 |
50 |
7.50*5.80*6.90 |
1 |
19.48 |
65.50 |
|
LWP-60 |
60 |
8.08*5.94*6.65 |
1 |
21.52 |
79.50 |
|
LWP-80 |
80 |
7.50*5.80*6.90 |
2 |
27.13 |
105.00 |
|
LWP-100 |
100 |
8.08*5.94*6.65 |
2 |
31.96 |
129.00 |
|
LWP-150 |
150 |
9.65*7.15*7.15 |
2 |
41.47 |
191.00 |
|
LWP-200 |
200 |
10.75*8.50*7.20 |
2 |
57.45 |
255.00 |
|
LWP-250 |
250 |
10.03*9.60*6.65 |
2 |
71.15 |
320.00 |
|
LWP-300 |
300 |
12.85*9.80*7.40 |
2 |
82.83 |
380.00 |
|
LWP-400 |
400 |
14.90*11.03*7.80 |
2 |
102.33 |
502.00 |
Comment
-Common Water Inlet or Outlet Pressure:≥0.15 MPa or 0 Mpa
-Common Inlet or Outlet Turbidity :≤3000NTU or ≤1NTU
-Common Working Way: S1 Duty
-Common Working Temperature: 0-35 ℃
Working Principle
The Fully Automatic Water Purifier Doses Flocculant Through The Stirring And Metering Dosing System, Enters The Raw Water Inlet Pipe, Mixes With The Raw Water Through The Tubular Mixer, And Then Enters The Inclined Tube Sedimentation Tank After Reacting Through The Folded Plate Reaction Tank. After Separation, The Clean Water Enters The Filter Tank From The Sump To Filter, And Then Obtains Qualified Drinking Water
Application
-Adapt for All River , Lake , Reservoir Source Water works Plant Device
-All kinds of Water Station
-As a perfect per-treatment of the high purify water, boiler Water& Beverage industry etc.
- Used as improving Industrial Recycled Water Quality
- Adopts in Mountain Spring ,Tunnel and Field Operations
- Adopts in Gray Water Reuse.
