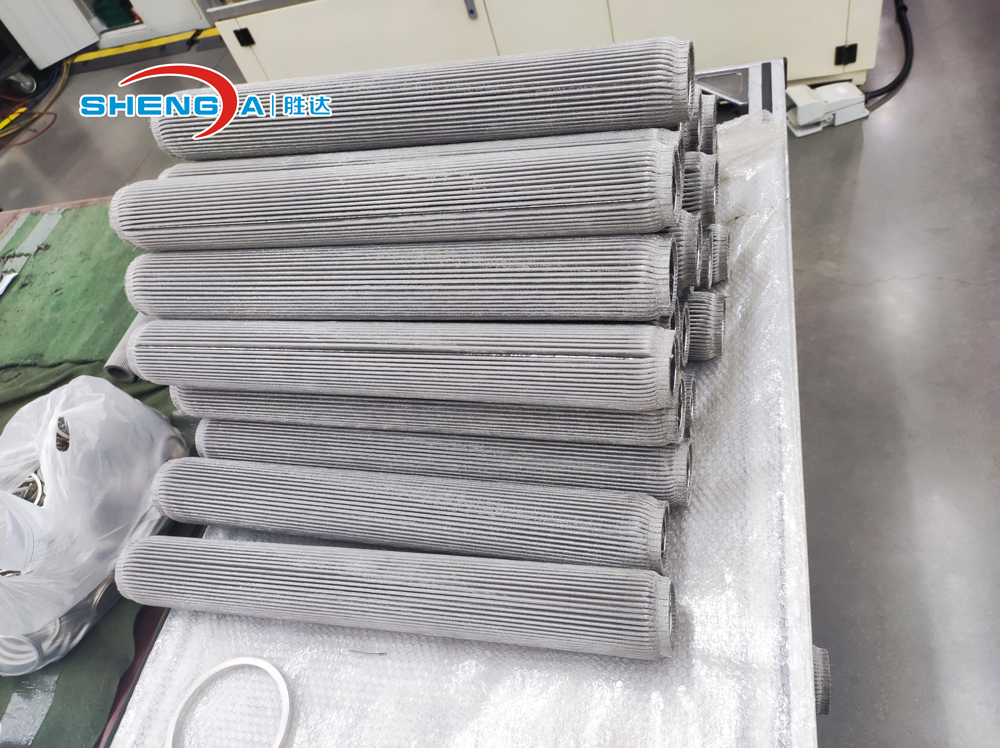

Sintered Metal Pleat Candle Filter

Overview

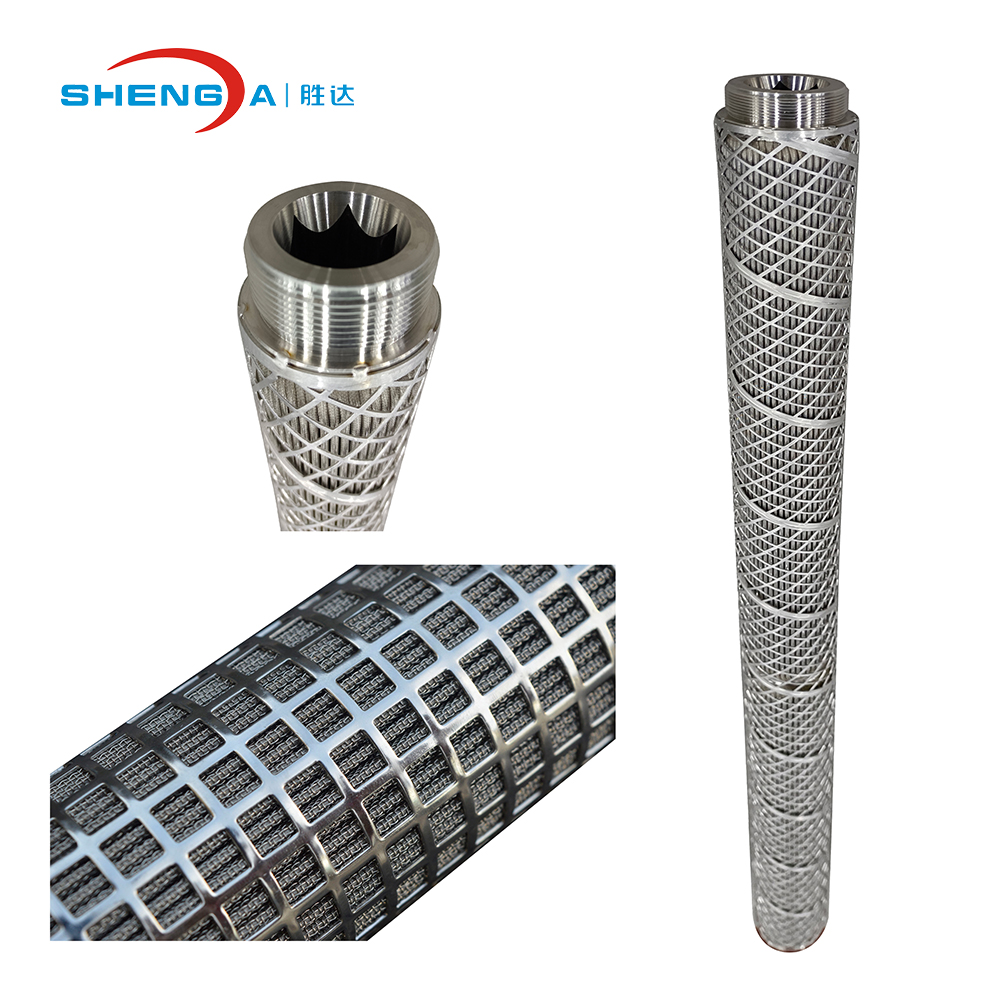

It’s made of multi-layers of micron-graded sintered stainless steel fiber, and protected from the two sides by protective meshes of specially treated stainless steel, which prevents any damage to the media when fabricating the element, and consequently to its performance. The inner support core is made of high-strength spiral punched cores, the outer protective guard made of square punched cores (optional as per the customer’s need), and the lower end cover, designed as a guide cone, which design can effectively reduce the resistance. Filter precision ranges between3μm~60μm.

Features & Benefits

• Uniform pores and high permeability
• Applicability to high pressure and high temperature
• High mechanical strength and good performance remaining after repeated cleanings
• Effective removal of contaminants from polymers and macromolecules from gel to ensure the cleanness of spinning dopes

Applications

Polymer filtration under high temperature, high pressure & high viscosity in manufacturing viscose fiber, polyester fiber, nylon fiber and film.
