10m USB Raspberry Pi Radar Level Sensor
The small radar level sensor is measure quickly and precisely up to 10m. The radar distance sensors using Phase technology, have low power consumption but mm precision instruments. Some of customers communicated with Raspberry Pi via distance sensor's RX TX pins for their measurement project. If you also need use Raspberry Pi, you can choose this style.
Some FAQs for U81 sensor quotations:
Question 1：I would like a quote for two of these sensors. Please help that. Thank you
Answer 1： Many thanks you send email about our U81 laser distance sensor. Lots of clients chose it. Two samples are ok, may I know your project information? We could choose a suitable sensor for you.
Question 2：Also if there is documentation on how to implement them with a raspberry pi and how to retrieve the data, I would like that as well.
Answer 2： Yes, U81 model could measure 20m and sensor could connect your raspberry pi. Meanwhile, we will send sample code as a reference.
Technical Specification
Range: 3cm - 10 meters
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-1mm
Measuring frequency: Up to 3Hz
Laser type: Class 2, red
Interface options: Serial/usb to tll/rs232/rs485/bluetooth
Size: 41*17*7mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Tips:
1.Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2.Under strong light or bad diffuse reflectance of target, please use a reflector.
3.Operating temperature -10 ℃~50 ℃ can be customized.
4.U81 supports multi-slaves network.
Pictures

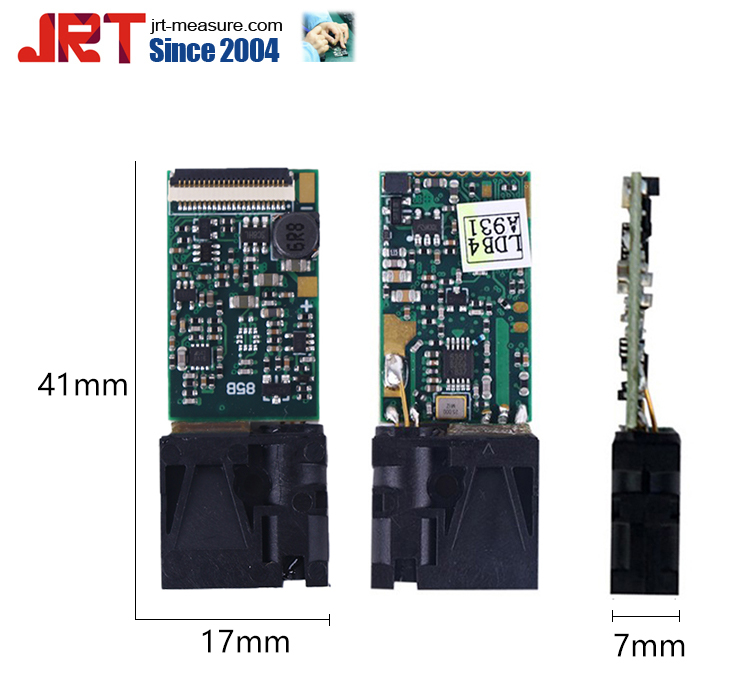

Radar Level Sensor 10m Size

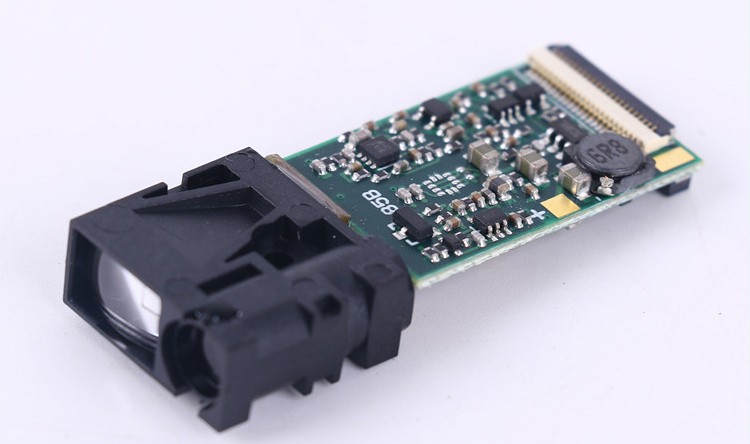

10m Laser Distance Sensor Lens

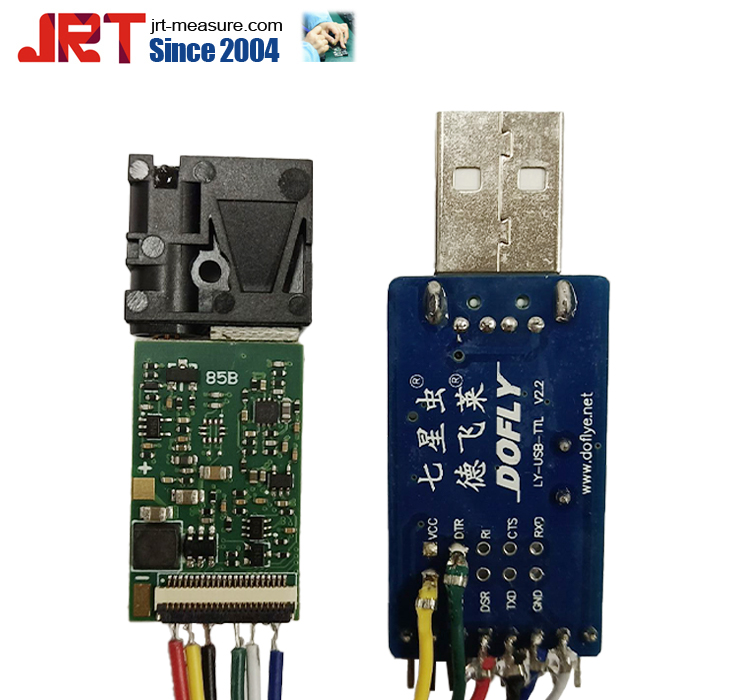

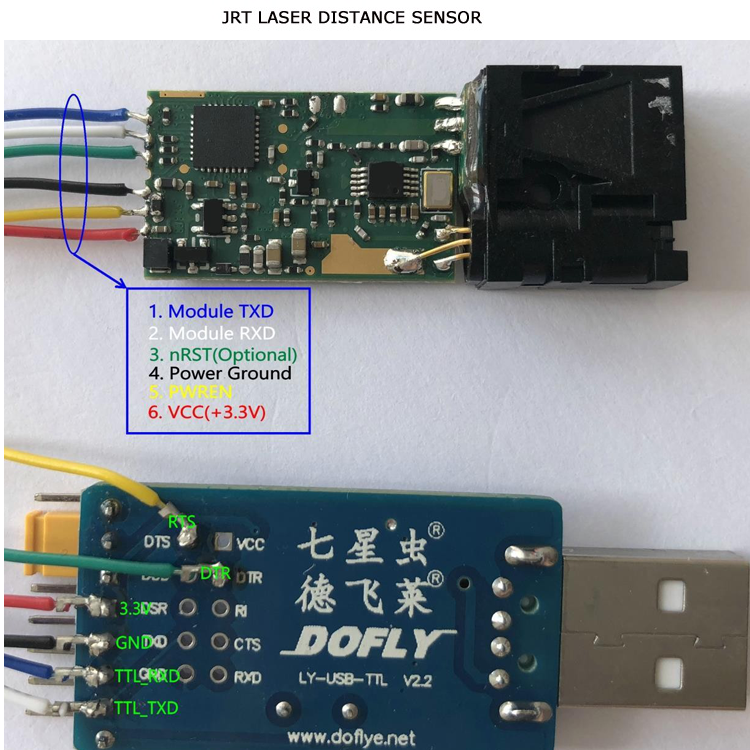

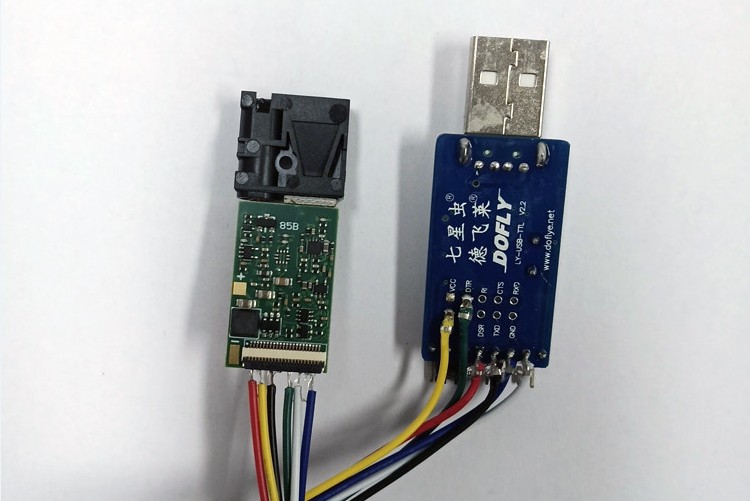

How to weld the U85 10m USB Laser Distance Sensor

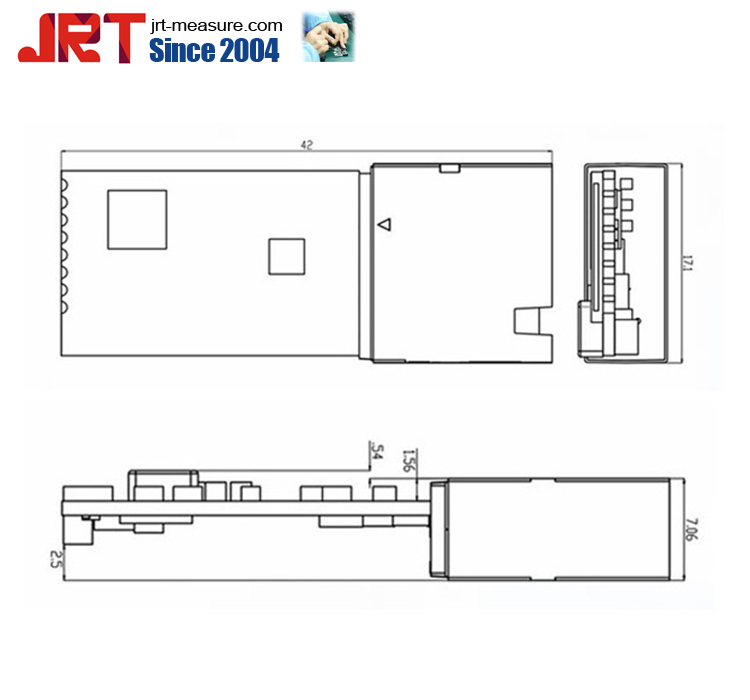

10m Radar Level Sensor Diagram

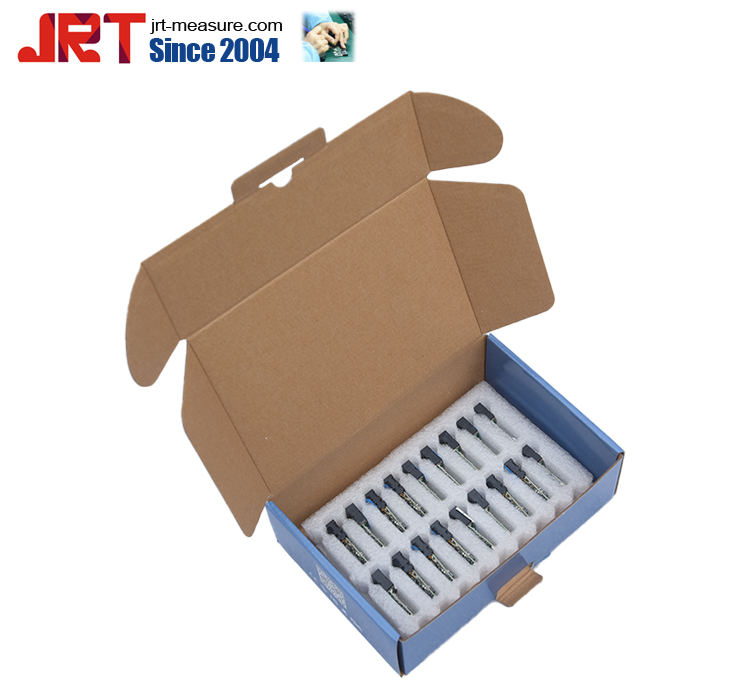

How to package your 10m Radar Level Sensor?
10m Radar Level Sensor Applications
