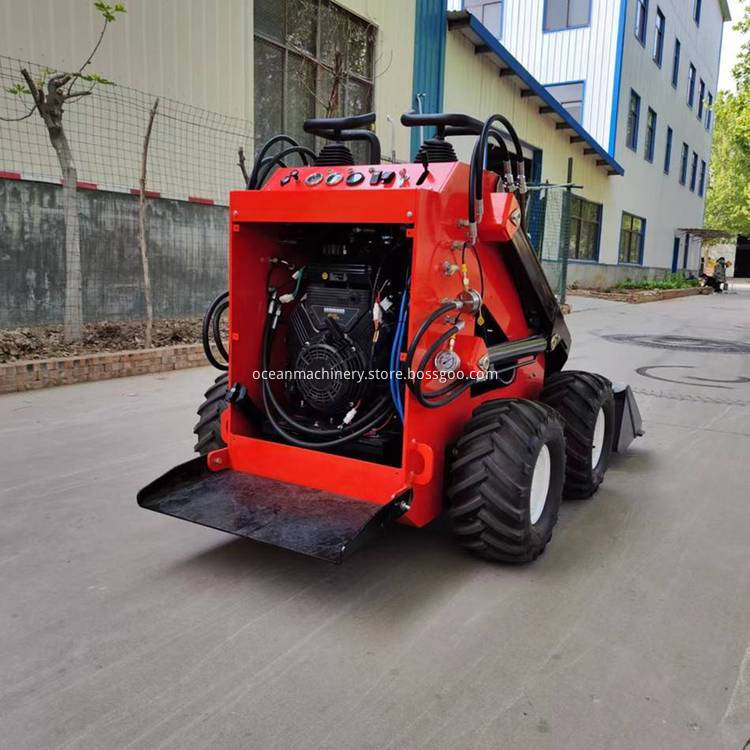

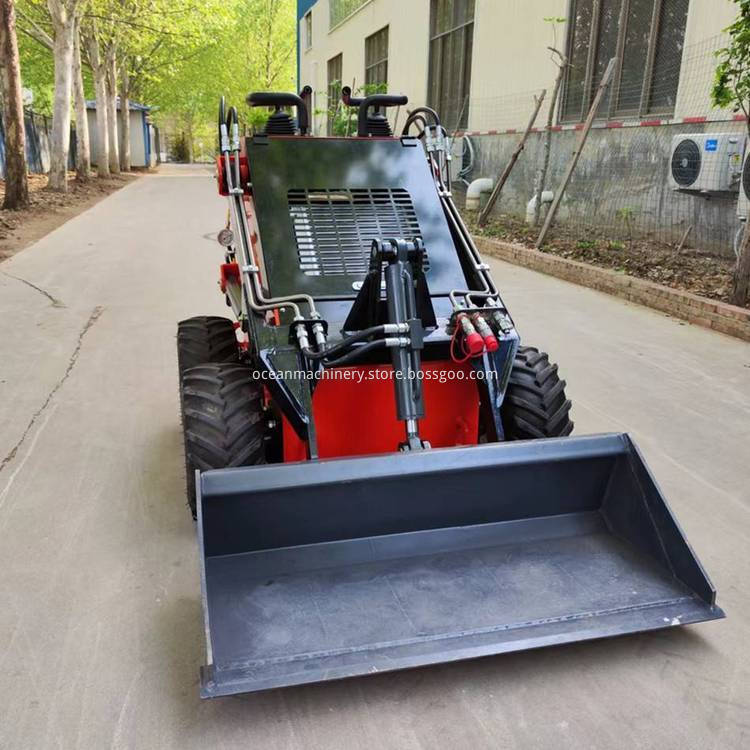

Track type 23hp mini skid steer loader
Mini skid steer loader with whole machine is small, and it can achieve a 360 -degree steering in place; it can be randomly replaced or hung by various working devices at the operation site.
it equipped with B&S engine or Kubota Japanese brand engine .Have strong power ,can equipped with different tools and attachments .
together with small excavators ,can realize the high efficient in the working .
Paramters of the loader :
Item
With Chevron Engineering Tyre
Max working height H1
2143mm
84.37inch
Max dump height H2
1488mm
58.58inch
Total Height H
1233mm
48.54inch
Max pin height
1884mm
74.17inch
The length of the foot plate
678 mm
26.7inch（foot plate level）
Total length with bucket L ( mm)
2206mm
86.9inch
Highest point dump distance L1（mm）
348mm
13.7inch
Length without bucket L2（mm）
1752mm
69inch
Bucket width B（mm）
980mm
38.6inch
Total width B1（mm）
1160mm
45.67nch
Wheel base
940mm
37inch
Ground clearance（mm）
118mm
4.65inch
Turning radius R（mm）
1307 mm
51.5inch
Bucket dumping angle α（°）
30
Rollback of bucket on ground β（°）
25
Departure angle（°）
11（foot plate level）
Parameter
Item
Item
Engin
Rated power（KW）
15.4KW(21HP)
Rated speed（rpm）
3300
Noise （Db）
95
Hydraulic system
Hydraulic pressure（Mpa）
17
Cycle time（s）
Raise
Dump
lower
4.27
1.34
3.31
Technical Parameter
Operating Load
200 Kg
441lb
Bucket Capacity
0.15 m 3
5.33（ft 3）
Max Lifting Force
375 Kg
827lb
Travel Speed
0-5.5Km/h
0-3.4mile/h
Operating Weight
890 Kg
1958lb(With Chevron Engineering Tyre )
Tires
18*6.5-8
