Top-Rated 3D Barrel Blender Mixer Machine for Ultimate Performance
2 year ago

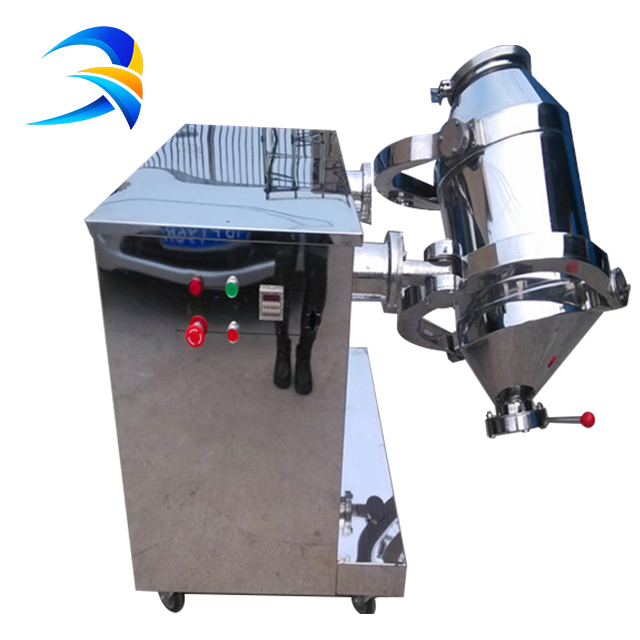

The three dimensional mixing machine is composed of base, frequency change motor, main axis, rotor and cylinder, etc. The cylinder container will carry on parallel moving and rolling under the driving of main axis, thus to push the material moving in the direction of circle, radical and axially, achieving uniform mixing of different varieties of material.
|
Model
|
5
|
10
|
15
|
20
|
50
|
|
Barrel capacity
(L)
|
5
|
10
|
15
|
20
|
50
|
|
Max loading capacity
(L)
|
4
|
8
|
12
|
15
|
40
|
|
Max loading weight
(kg)
|
2
|
4
|
6
|
8
|
25
|
|
Speed of driving shaft
(r/min)
|
0-15
|
0-15
|
0-15
|
0-15
|
0-15
|
|
Motor Power
(kw)
|
0.25
|
0.37
|
0.37
|
0.55
|
1.1
|
|
Overall dimensions
(mm)
|
600*1000*700
|
650*1000*800
|
700*1000*900
|
750*1100*950
|
1000*1400*1100
|
|
Total weight
(kg)
|
70
|
80
|
100
|
200
|
300
|
Product Display
