SPMT-Self-propelled Modular Transporter

 N3.0-1 SPMT modular trailer

SPMT (Self-Propelled Modular Transporter)is a high-end modular heavy-duty carrier and the most powerful carrier on land.

For heavy load, usually SPMT( is equipped with diesel engine. At present, we have new design and product, that is, Self-Proprlled Modular Trailer is equipped with electric motor(AC power). SPMT with AC power is used in workshop, in-plant, rail industry, driven by AC with 100-200m cable.

New SPMT is equipped with a wireless remote control. Main functions like drive system, steering via the integrated on board computer terminal, lifting and lowering as well as emergency stop are installed on the mobile operator board.The remote control can be wired controlled.

New SPMT also has steering function of heavy load SPMT, such as, Normal drive, Diagonal drive, Steering in front axle, Steering in back axle, Cross-drive, Carousel drive, Parking mode, Truck drive crosswise.

2.Used in workshop, driven by AC with 100-200m cable.

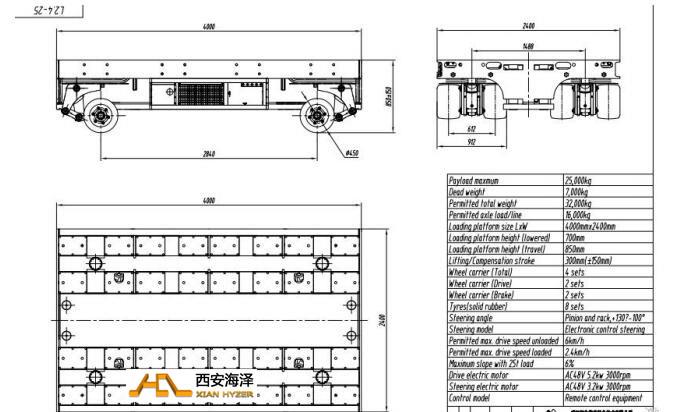

The following is drawing for 25ton loading capacity for reference:

Application

Energy and Chemical Engineering: Reactors, columns, large tanks, generator stators

Bridge Engineering: Transportation and erection of full-span box girders, steel truss girders, and segmental girders

Offshore Engineering: Offshore platform modules, ship sections, wind turbine towers / blades

Aerospace: Rockets, aircraft, and large structural components

Ports / Shipyards: Gantry cranes, portal cranes, and shipblock relocation

Nuclear Power / Defense: Reactor pressure vessels and heavy equipment transport
