Container side loader loads and unloads
2 year ago
37ton loading capacity container side loader

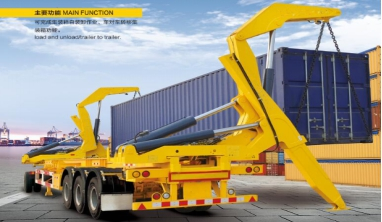

Container side loader loads and unloads via a pair of crane (hydraulic arms) mounted at each end of the trailer chassis. There is no need to use other lifting equipments, such as, forklift, crane, etc. The whole operation process from the trailer to the ground is in just minutes, increasing efficiencies and productivity. It not only saves money for the transport operator, but also saves time.
Container side loader can independently transport, load and unload 20ft and 40ft container. It is also used to transport, load and unload special fuel tank container, industrial equipment, special vehicles, portable building, etc. Only trailer driver can finish all of loading and unloading action.
Its application is wide, such as, trailer to trailer, trailer to train, port, dock, rail transportation, etc.
Main technical specification
Max. lifting capacity
kg
37000
Max. stabilizer outreach
mm
3200
Max. working range
mm
4000
Overall height
mm
2490
Overall width
mm
2500
Overall length
mm
1020
Max. pressure of hydraulic system
MPa
28
Tare weight
kg
7000
Main features
Power take off (PTO) or diesel APU.
Sideloader can slide to fit 20feet to 40feet containers.
Wireless remote control/Manual operating.
Engine throttle size and engine speed can be control, improving working efficiency.
The front and rear crane can work together and separate, adjusting container conveniently.
Safety control with stop button.
Elegant appearance, reliable performance, convenient operation, facilitate manufacture and maintenance.

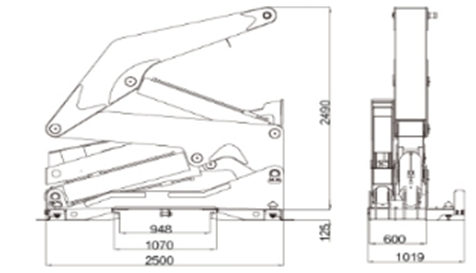

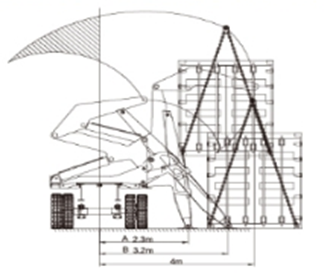

Operation radius Dimension
Remote controller
