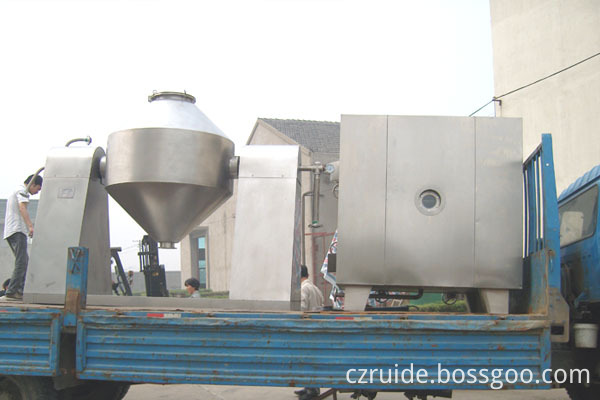

SZG double cone rotary vacuum dryer6
2 year ago
Szg Series Double Cone Vacuum Drier for Sulfonic Acid,Low Temperature Cone Vacuum Dryer for Heat Sensitive Material,Szg Series Double Conical Rotary Dryer,Vacuum Drying Machine,Double Cone Rotating Vacuum Drying Machine
Machinery Specifications
fast and uniform mixing, good sealing, high efficient, easy operating,
Conical Rotary Vacuum Dryer Features:
This machine can rapidly mix such materials as easy clot with certain water content, having fast mixing speed and good mixing effect. Inner of this machine is of new type sealing structure, during mixing, it is free of pollution, with simple structure and convenient operation and maintenance.
Rotary Vacuum Dryer Main Application:
Our company develops CW series stirring mixer by absorbing foreign new technology, based on W series double cone mixer, this machine adds stirring unit, which can be used for material mixing in industries as pharmacy, foodstuff, chemical industries as pharmacy, foodstuff, chemical industry and feedstuff etc.
Salient Features
Low temperature drying under vacuum
Highly efficient for uniform drying in a short time as co-efficient of thermal transmission is high
Solvent recovery can be carried out
Specially designed micro air-filter can be provided on receiver while breaking vacuum for safety operation
The discharge of the dried material is easy due to the conical configuration of the dryer & it is possible to fix vibrator
Nitrogen purging system is available optionally for mechanical seal as well as for cleaning filter
Specially designed S.S. Rotary union is provided for hot water or steam at inlet & outlet
Mode of heating is indirect through steam / hot water or hot oil
A self-cleaning butterfly discharge valve with safety blind cover
Internal cartridge filter for fine powders with effective surface area
Available in STD/GMP/cGMP/GAMP/ GLP/ GCP/Lab Models and kilo lab models
Recovery Technical Data|
Model |
Barrel Volume (L) |
Mixing motor KW |
Stirring motor KW |
Mixing rotary speed (rpm) |
Stirring rotary speed(rpm) |
Overall Dimension (mm) |
|
SZG-50 |
50 |
1.1 |
0.75 |
20 |
60 |
1500*450*1200 |
|
SZG -100 |
100 |
1.5 |
1.1 |
20 |
60 |
1550*550*13500 |
|
SZG -200 |
200 |
2.2 |
1.1 |
20 |
60 |
1800*700*1500 |
|
SZG -300 |
300 |
2.2 |
1.1 |
20 |
60 |
2100*760*1760 |
|
SZG -500 |
500 |
3 |
2.2 |
20 |
60 |
2320*950*1920 |
|
SZG -1000 |
1000 |
5.5 |
2.2 |
10 |
40 |
2450*1050*2500 |
|
SZG -1500 |
1500 |
7.5 |
4 |
10 |
40 |
2900*1300*2700 |
|
SZG -2000 |
2000 |
7.5 |
4 |
8 |
30 |
3000*1400*3100 |
|
SZG -2500 |
2500 |
11 |
5.5 |
6 |
20 |
3600*1400*3200 |
|
SZG -3000 |
3000 |
11 |
5.5 |
6 |
20 |
4000*1500*3500 |
|
SZG -4000 |
4000 |
15 |
5.5 |
6 |
20 |
4800×1300×3800 |
|
SZG -5000 |
5000 |
15 |
7.5 |
5 |
20 |
5400×1300×4000 |
|
SZG -6000 |
6000 |
17.5 |
7.5 |
5 |
20 |
5650×1300×4380 |
