10m/20m Laser Measuring Equipment RS485_JRT

10m RS485 Cmos Sensor Distance Meter
JRT updates new version distance meter sensor with RS485 communication for you all. At first, you can have a look, and make a comparation with your finger. It’s really really a small sensor, right? It’s 41mm length, 17 width, 7mm thickness.The Smart Measure Sensor is a sensor for detecting distances and distance information from the 3cm range to 10 m. With RS485 adapter, you can transfer measuring data in hundreds meters.
Key parameters
■ Lightweight sensor with +-1mm/0.039inch high precision
■ Short range sensor 10m for factory automation
■ High performance sensors for some harsh conditions
■ Digital interface: RS485

Specifications of Industrial Laser Distance Sensor:

Range: 0.03-10 meters
Invisible measuring: 620nm-690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth
Size: 41*17*7mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

Some advices:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

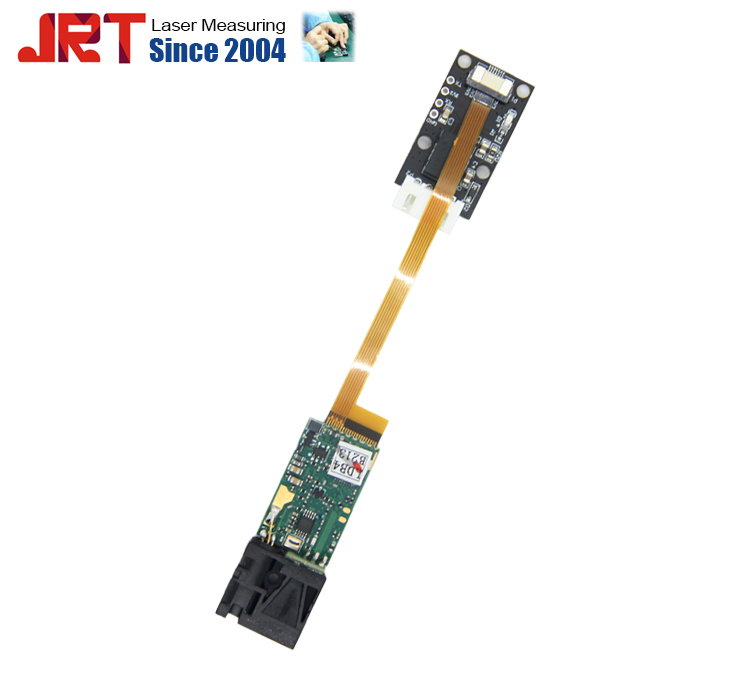

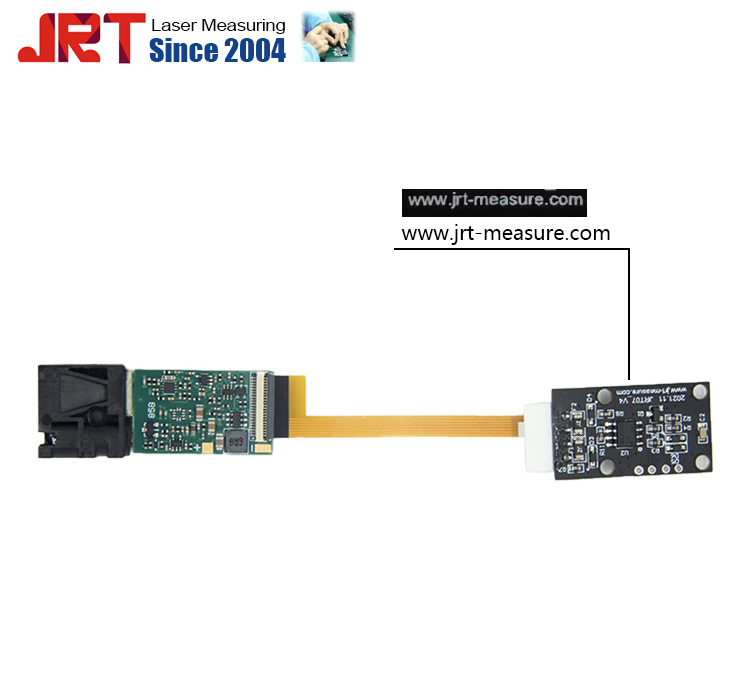

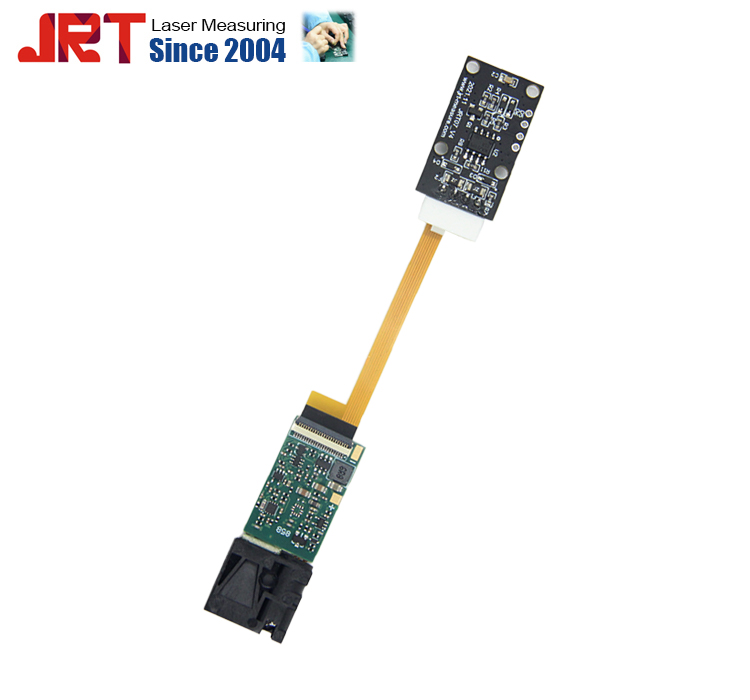

Detailed Pictures

How to confirm JRT 10M RS485 Distance Sensor?

The command to read data when the parameter is we setting:
Continuous measurement:
AA 00 00 20 00 01 00 04 25

Continuous measurement in slow mode:
AA 00 00 20 00 01 00 05 26

Continuous measurement in fast mode:
AA 00 00 20 00 01 00 06 27

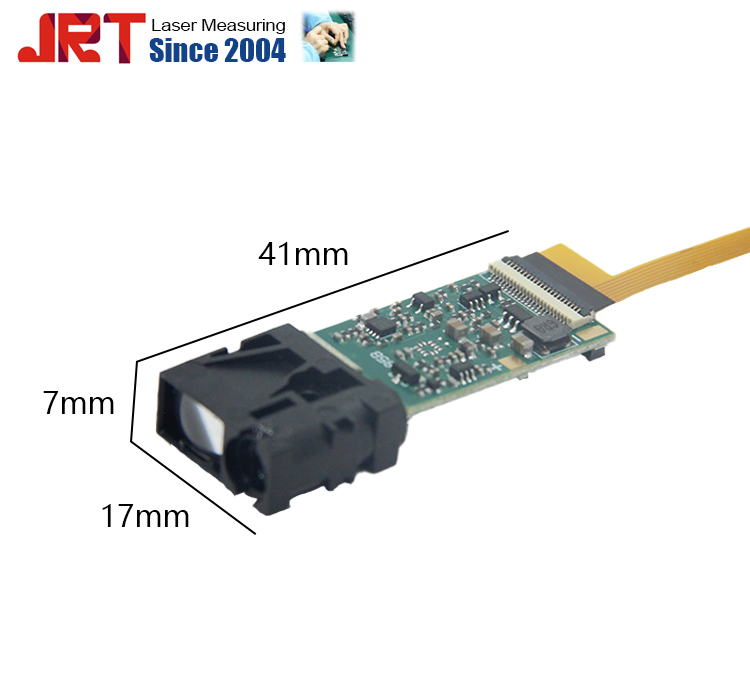

Mechanical Dimensions

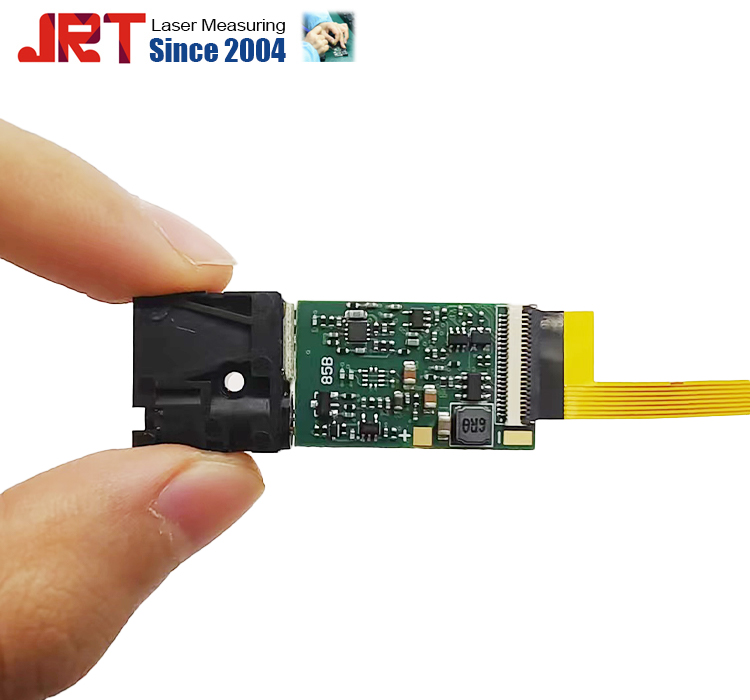

How small it is in your hand?

Let's make a comparation with your finger. It’s really a small-size sensor, right? With 41mm length, 17 width, 7mm thickness, customers can integrate easily.

Also, you can imagine how light its weight, only about 4 grame.

Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor, Tof LiDAR Sensors.
