Fire expansion strip Graphite fire intumescent seal strip

Graphite fire intumescent seal strips are a type of passive fire protection product used to seal gaps and joints in buildings to prevent the spread of fire and smoke. These sealing strips are made from graphite, which is a non-combustible material.

In normal conditions, the graphite rubber strip remains flexible and can be easily compressed to fill gaps and joints. However, in the event of a fire, the strip expands due to the heat, forming a fire-resistant barrier. This expansion is known as intumescence, and it helps to prevent the passage of fire, smoke, and hot gases through the sealed area.

Graphite fire intumescent seal strips are commonly used in fire-rated doors, windows, walls, and other building elements to maintain the integrity of fire compartments and limit the spread of fire. They are typically used for fire doors, fire windows, fire shutters, fire dampers, fireproof glass curtain wall, light construction accessories.

The features of sealing strip are flame retardant, Good fire expansion performance, effectively isolating smoke and dust. Expansion factor is 3-5 times, expand rapidly when exposed to fire or high temperature. Excellent graphite material, fireproof and waterproof, Non affected by water and humidity. Assist the building components to have fireproof insulation, such as fire, smoke and heat insulation.



Brand XYST
Material Quality graphite mixture
Color black or custom color
Width 5-1000mm
Thickness 2/4mm customized
Size  10*2mm, 15*2mm, 20*2mm, 30*2mm, 50*2mm  or as your request
Packing 25m/30m/50m per roll ,customized
Expansion rate 3-5/10/15/20/25 times, or by your request.
Quality SGS IATF16949,  ROHS, PAHS
Usage Door and Frame Sealing, Between door and frame,
Function Fire door intumescent seal, Fireproof seal for door and windows
Feature Flame retardant, Good fire expansion performance, effectively isolating smoke and dust.
Expansion factor is 3-5 times, expand rapidly when exposed to fire or high temperature
Excellent graphite material, fireproof and waterproof, Non affected by water and humidity.
assist the building components to have fireproof insulation, such as fire, smoke and heat insulation.
Application fire doors, fire windows, fire shutters, fire dampers, fireproof glass curtain wall, light construction accessories.

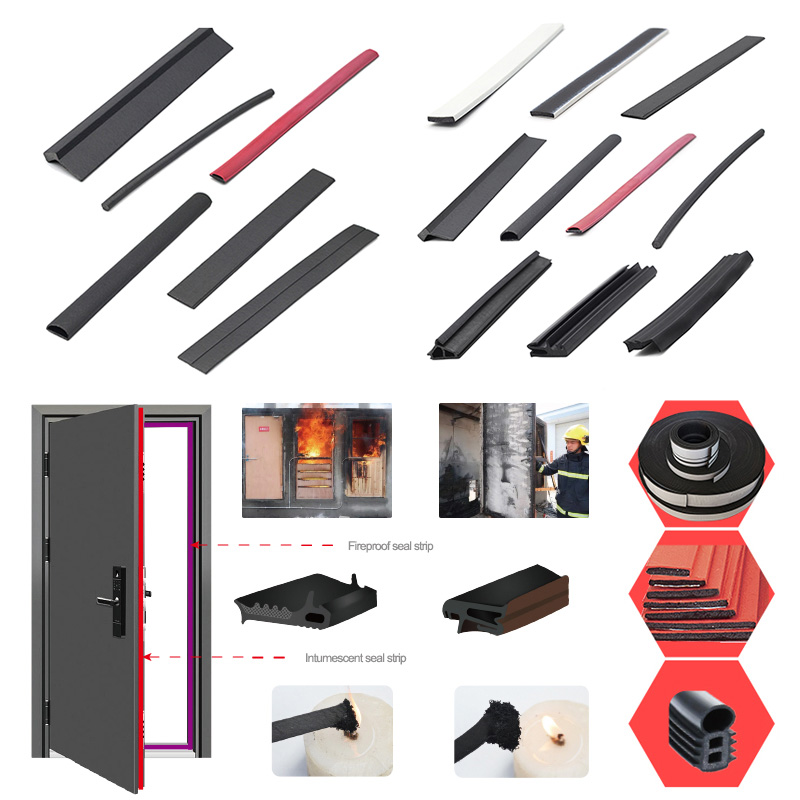

1 Jpg115 00 1 Jpg

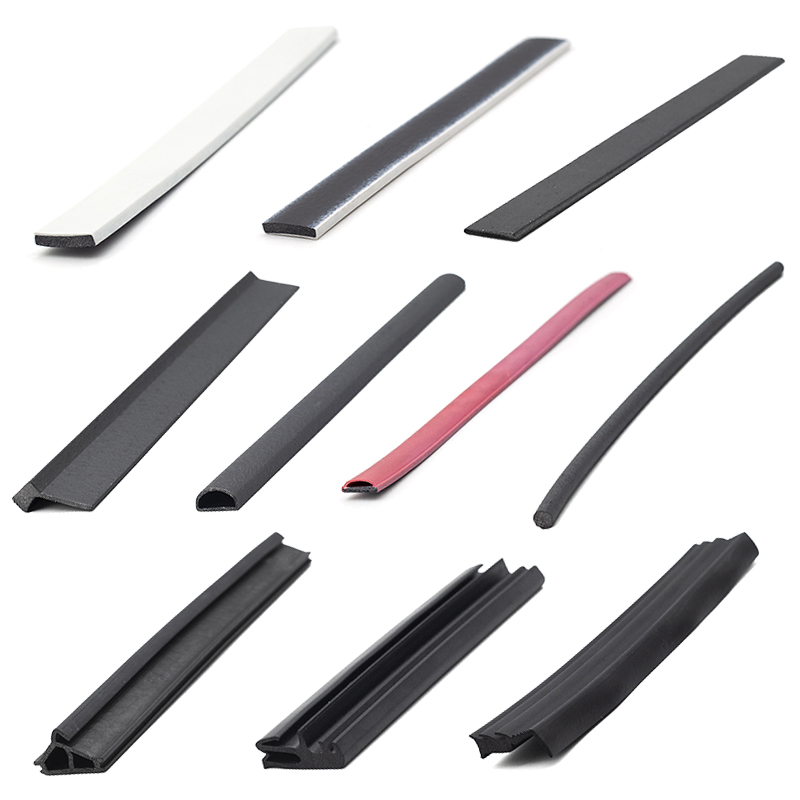

Fireproof seal strip

Intumescent seal strip

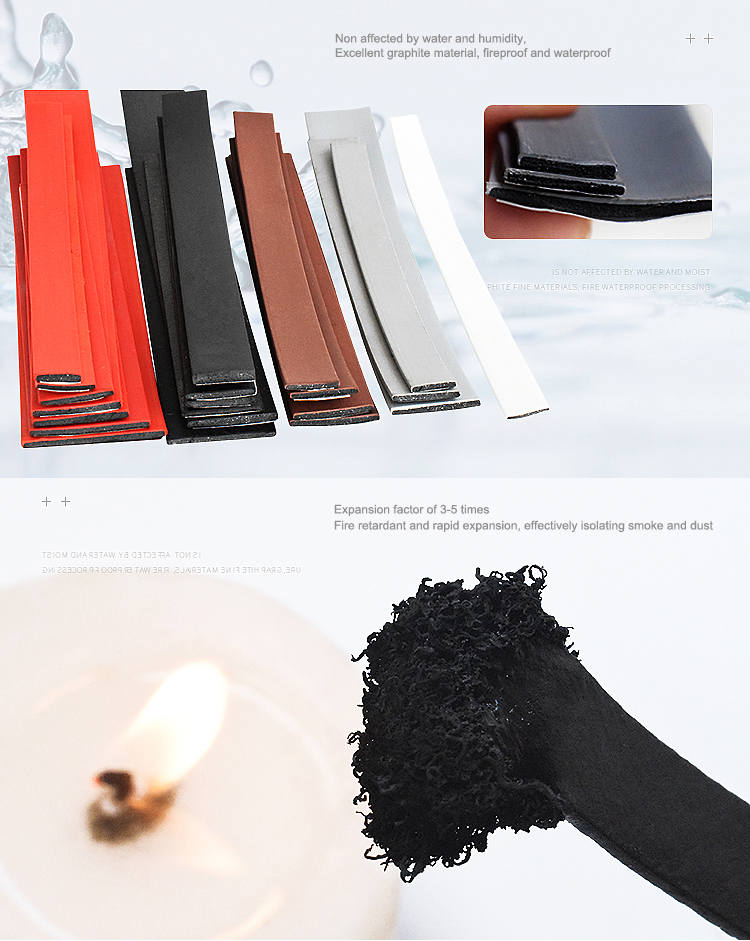

Non affected by water and humidity,

Excellent graphite material, fireproof and waterproof

115 04

Expansion factor of 3-5 times

Fire retardant and rapid expansion, effectively isolating smoke and dust

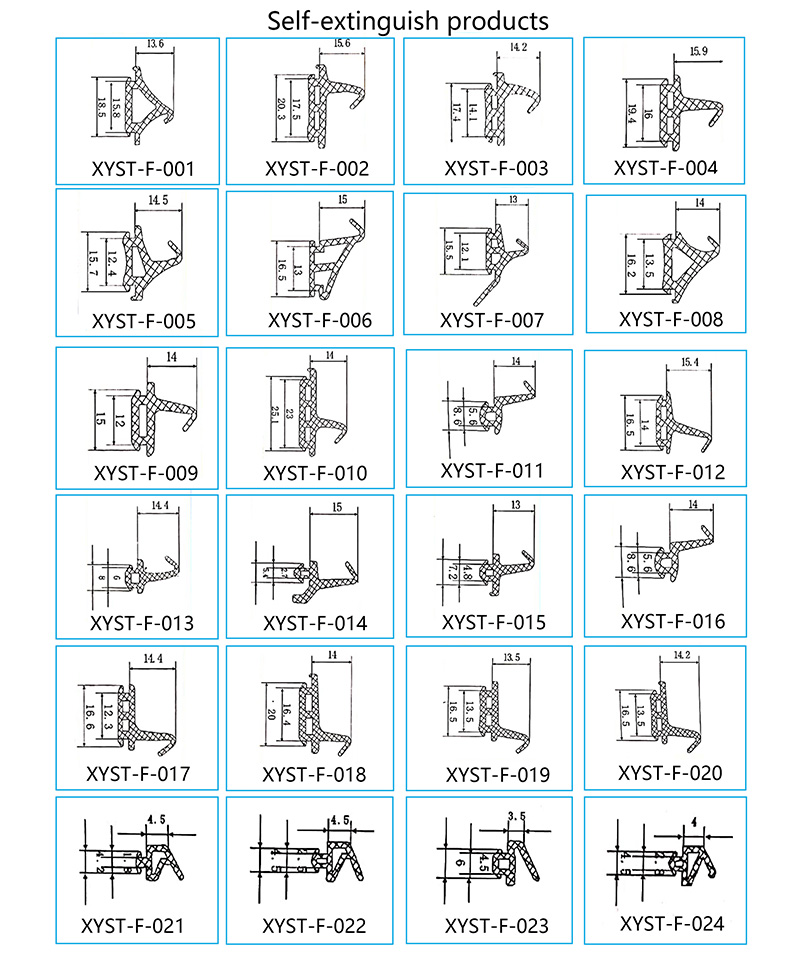

Self-extinguish products

121 15 Jpg121 14 Jpg

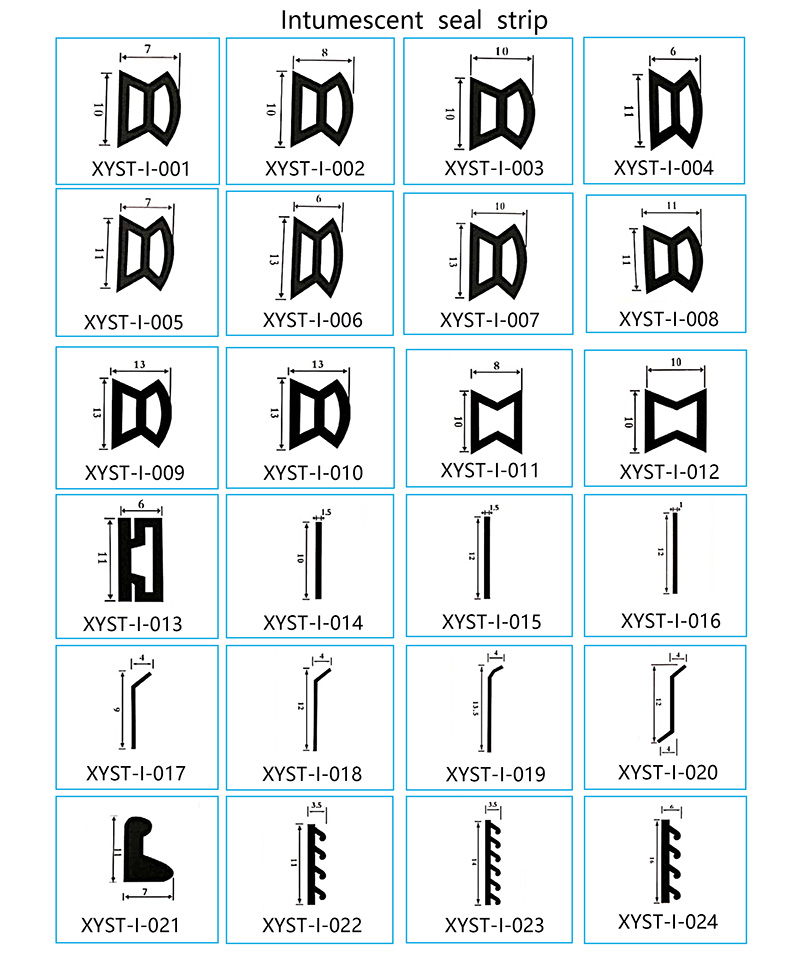

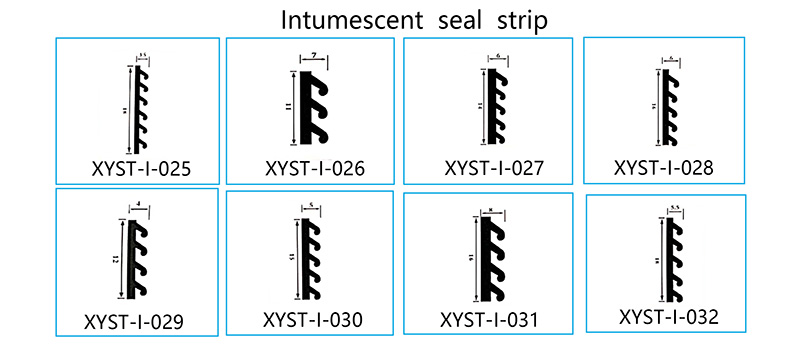

Intumescent seal strip

121 13 Jpg
