JOE300SSwitchgear intelligent control device

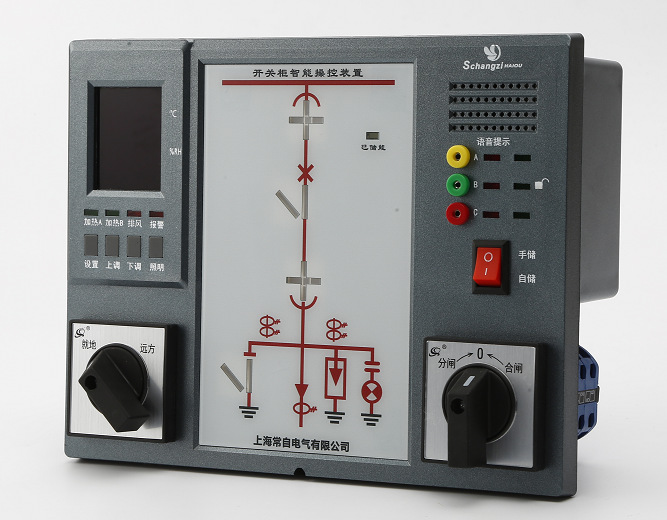

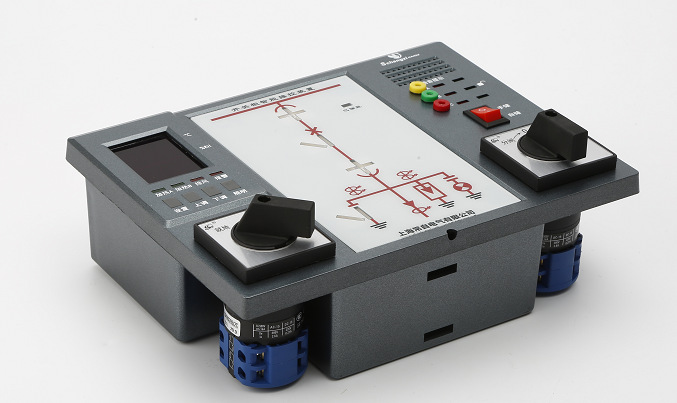

JOE300Y Switch Cabinet Intelligent Operating Device

  JOE300Y switchgear intelligent operating device is an advanced switchgear control system. It is equipped with intelligent features that allow remote monitoring and control of the operation of the switchgear.
Key functions of the JOE300Y include:
1. remote monitoring
It has the temperature measuring device to realize real-time monitoring of switch cabinet temperature, humidity, power consumption and other parameters. This wireless temperature measuring enables users to detect any anomalies or potential problems before upgrading.
2.circuit breaker position display
Working position When the contact is closed, it shows that the circuit breaker is in the working position;
Test position When the contact is closed, the circuit breaker is displayed in the test position;
When the hand car is located between the test position and the working position, the light tube does not emit light, indicating that the hand car has been powered off
3.grounding switch position display
The passive contact input is closed, indicating that the grounding switch is closed; The passive contact input is disconnected and the ground switch is displayed
4.spring energy storage display
The passive contact is closed, indicating that the circuit breaker has stored energy
Overall, the JOE300Y switchgear intelligent operation equipment provides advanced monitoring, control and optimization functions for the switchgear, improving the efficiency, reliability and safety of the switchgear operation.
